Quick Change Tool Post

GD-0055 TOOL POST piston quick change tool post usa type

Item No.: CO16136734
Send Enquiry

Product name:Poston Type Locking Tool Post
Hardness：HRC50-60
Type：Quick change
Material：spheroidal cast iron
Accuracy：high accuracy for fix-position
Feature:exchange tool quickly,high precision
Product series:TOOL-QUICK CHANGE TOOL POSTS
Package:Plastic Box or Wooden box
Usage:CNC Machine Center

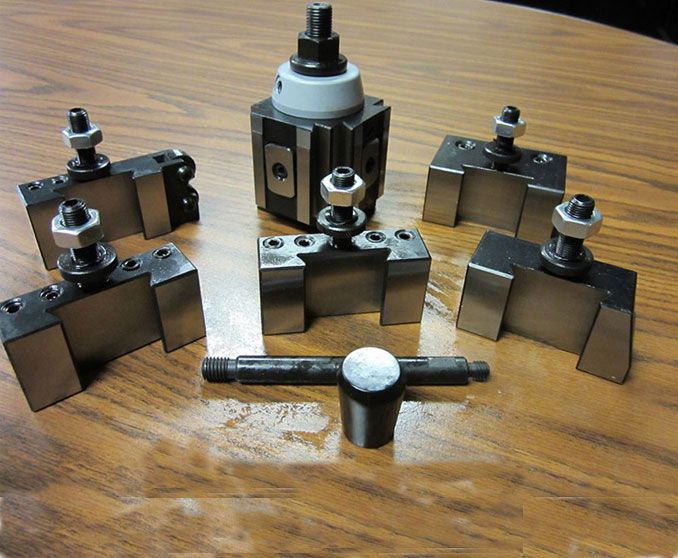

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.

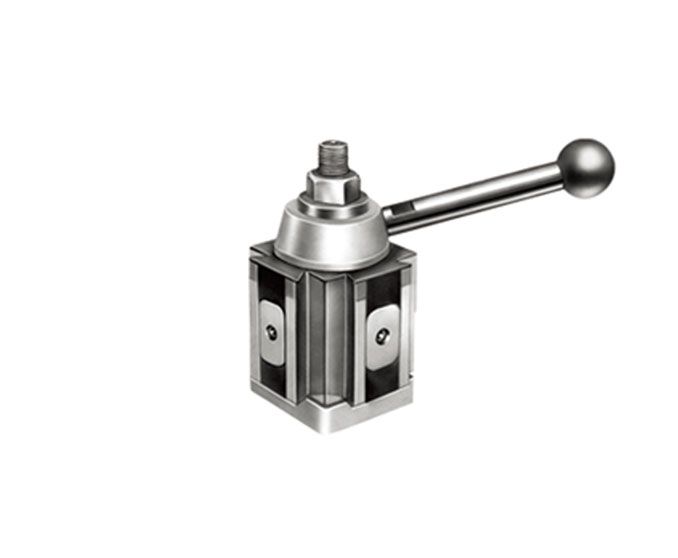

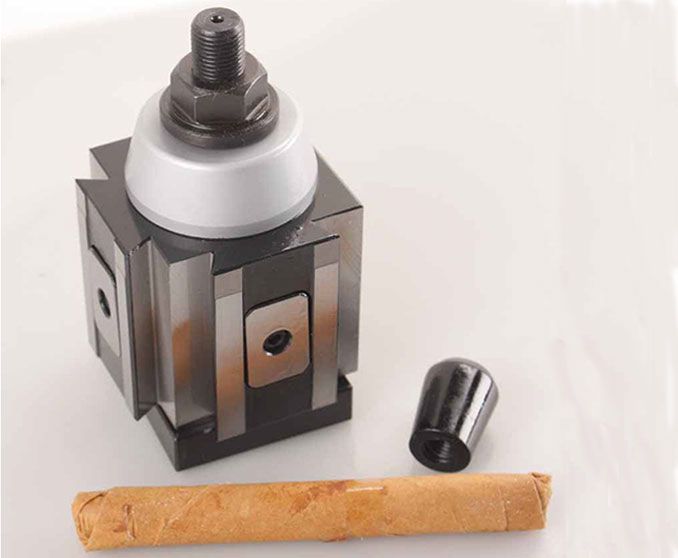

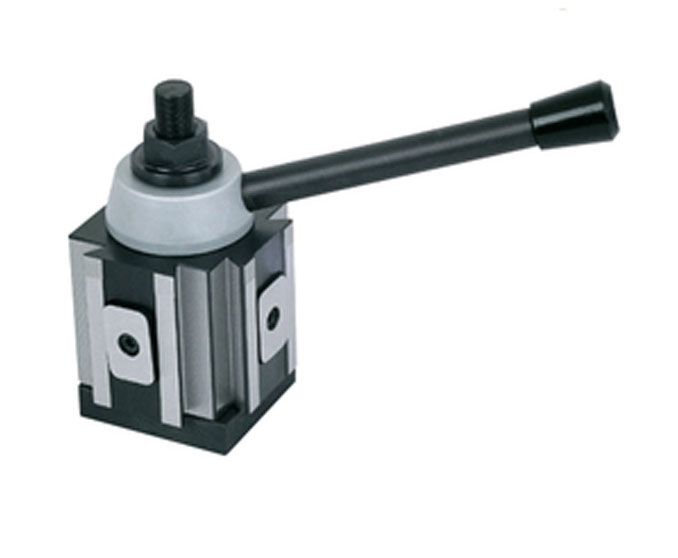

PISTON TYPE LOCKING TOOL POST

GD-0055	PISTON TYPE LOCKING TOOL POST
Order No.	A(in)	B1(in)	C(in）	D（in）	Swing dia（in）	Wt（kg）
250-100	2-1/2	3-7/8	2-1/4	9-16	12	2.23
250-200	3	4-5/8	2-3/4	5/8	10-15	4.00
250-300	3-3/8	5-1/8	3	3/4	13-18	5.72
250-400	4	6-1/8	3-5/8	7/8	14-20	10.00
