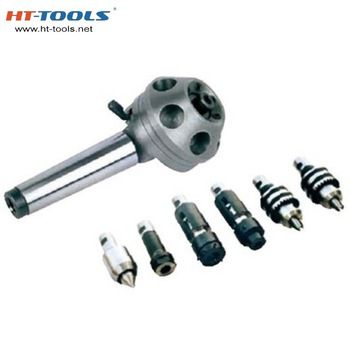

F3DRILL-TAP-FIXTURE

Model

Dia of turret(mm)

Hole size(in)

Model

Dia of turret(mm)

Hole size(in)

F3-5/8

2-1/2”

5/8

F3-16

63.5

16

F3-1

5”

1

F3-25

127

25

ORDER NO.

SHANK

ORDER NO

SHANK

ORDER NO

SHANK

ORDER NO

SHANK

F3-5/8-MS1

MS1

F3-1-MS2

MS2

F3-16-MS1

MS1

F3-25-MS2

MS2

F3-5/8-MS2

MS2

F3-1-MS3

MS3

F3-16-MS2

MS2

F3-25-MS3

MS3

F3-5/8-MS3

MS3

F3-1-MS4

MS4

F3-16-MS3

MS3

F3-25-MS4

MS4

F3-5/8-MS4

MS4

F3-1-SS7/8

7/8”

F3-16-MS4

MS4

F3-25-SS22

22mm

F3-5/8-SS1/2

1/2”

F3-1-SS1

1”

F3-16-SS12

12mm

F3-25-SS25

25mm

F3-5/8-SS5/8

5/8”

F3-1-SS1-1/4

1-1/4”

F3-16-SS16

16mm

F3-25—SS32

32mm

F3-5/8-SS4/3

3/4”

F3-1-SS1-1/2

1-1/2”

F3-16-SS20

20mm

F3-25-SS40

40mm

F3-5/8-SS7/8

7/8”

F3-16-SS22

22mm

F3-5/8-SS1

1”

F3-16-SS25

25mm

订单号

Order No.

铰孔夹头

Reaming collet

钻夹头

Drilling chuck

回转顶尖

Live center

攻丝夹头

Tapping collet

板牙夹具

Die holder

夹头

夹持范围

钻孔范围

F3-2-1/2

ER16

∅1~∅10

∅1~∅13

DM311

M3-M12

M3-M12

F3-5

ER20

∅1~∅13

∅1~∅16

DM312

M3-M16

M3-M16
