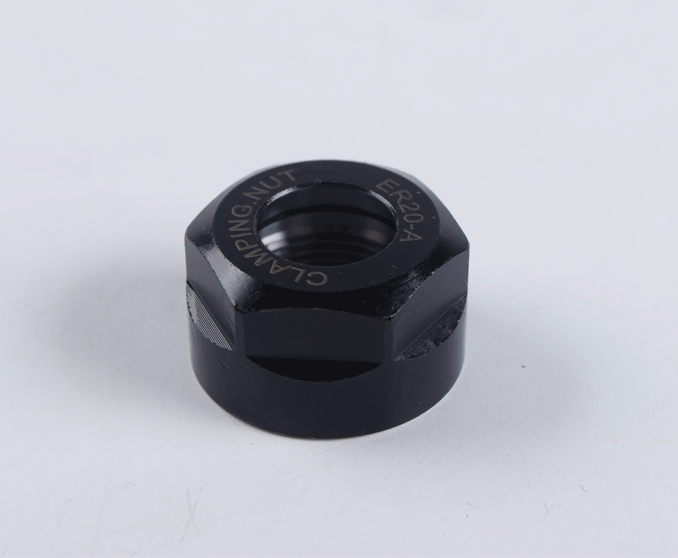

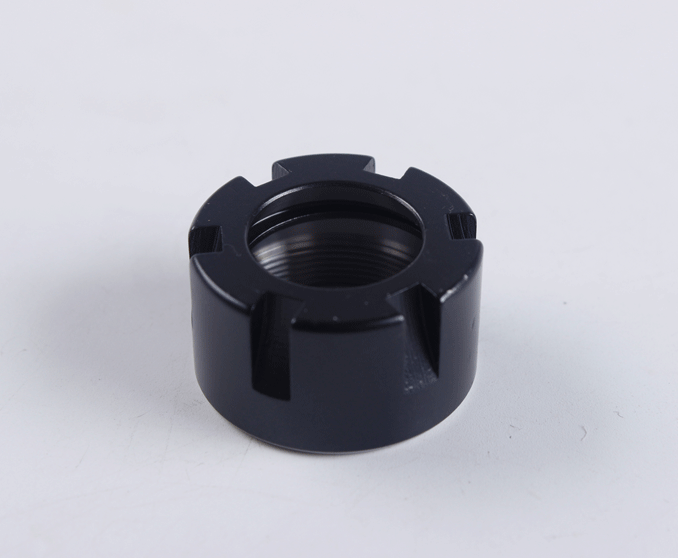

GD-0004 ER NUT

Item No.: CO154247734
Send Enquiry

1.Products name : ER NUT

2.Material: High quality spring steel 40CR

3.Hardness : HRC48-52

4.Accuracy: AA grade(0.005)mm

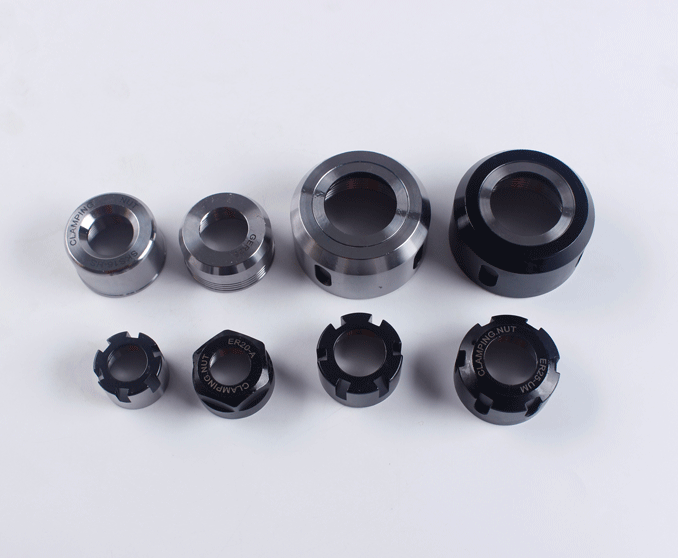

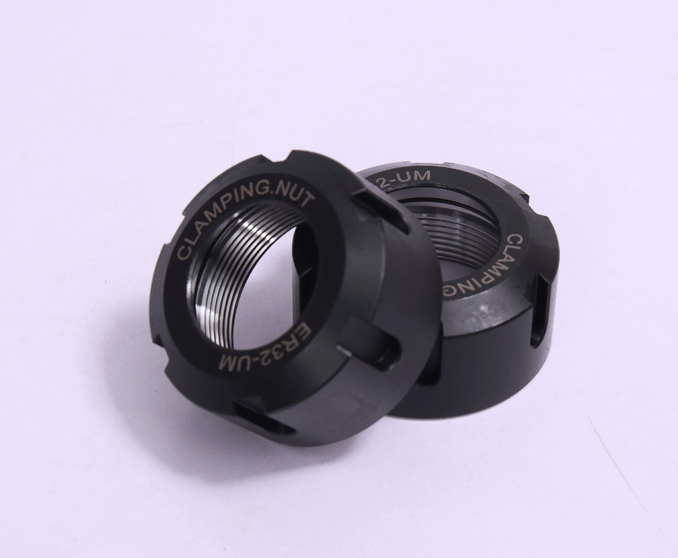

5.Type : ER11M ER20M ER25M ER11A ER16A ER20A ER16UM ER20UM ER25UM ER32UM ER40UM

6.Default balancing G6.3 12000rpm,18000rpm

7.Brand : GD-TOOLS

8.Package : Plastic box paper box

9.Mini order quantity : 10pcs

GD-0004	ER NUT
Order No.	Type	D(mm)	L(mm)	M	Wt(kg)
ER11-A	A	19	11.3	M14×0.75	0.005
ER16-A	A	28	17.5	M22×1.5	0.01
ER20-A	A	34	19	M25×1.5	0.05
ER25-B	B	42	20	M32×1.5	0.14
ER32-B	B	50	22.5	M40×1.6	0.20
ER40-B	B	63	25.5	M50×1.7	0.30
ER50-B	B	78	35.5	M64×2	0.50
ER8-M	M	12	12	M10×0.75	0.005
ER11-M	M	16	12	M13×0.75	0.01
ER16-M	M	22	18	M19×1	0.05
ER20-M	M	28	19	M24×1	0.05
ER25-M	M	35	20	M30×1	0.08
ER11-T1	T1	19	11.3	M14×0.75	0.005
ER16-T1	T1	28	17.5	M22×1.5	0.01
ER20-T1	T1	34	19	M25×1.5	0.05
ER25-T2	T2	42	20	M32×1.5	0.14
ER32-T2	T2	50	22.5	M40×1.5	0.20
ER40-T2	T2	63	25.5	M50×1.5	0.30
ER50-T2	T2	78	35.5	M64×2	0.50
