Inquiry:
Collets series

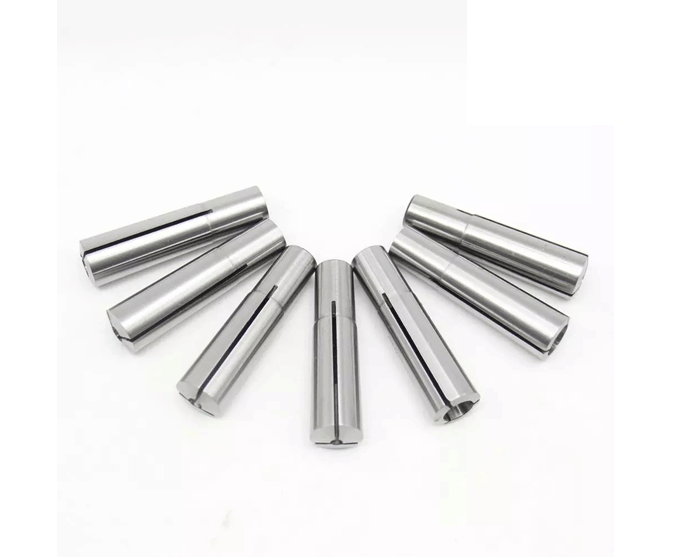

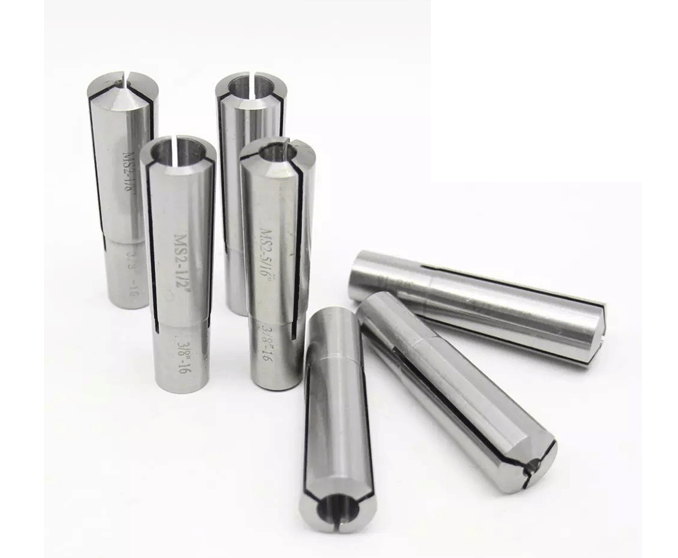

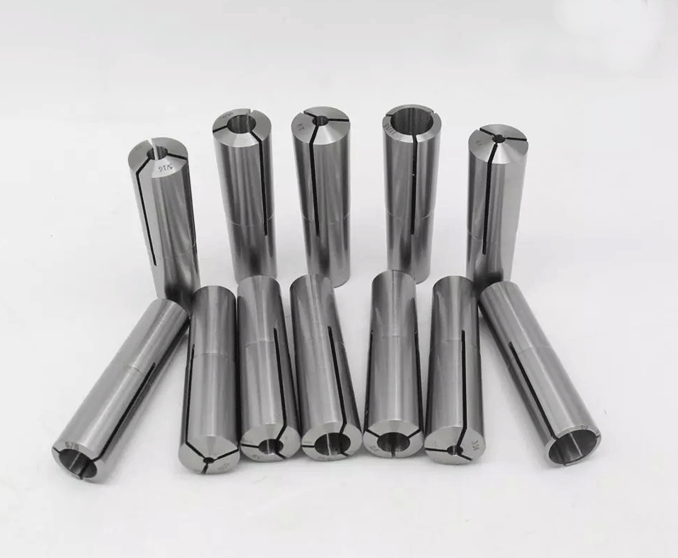

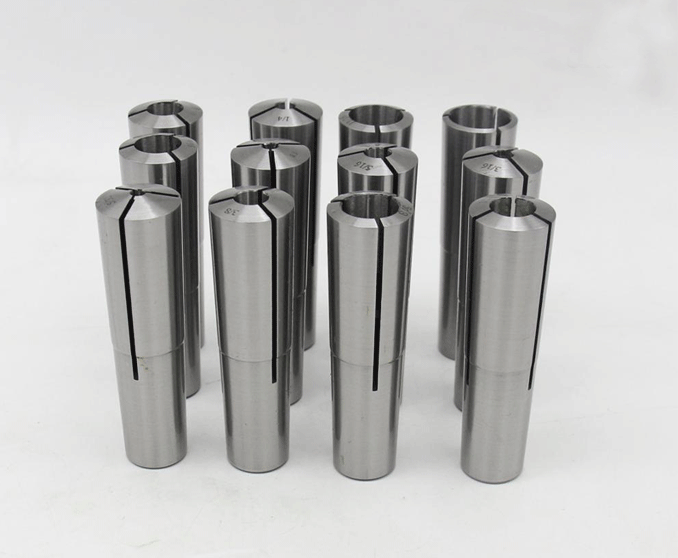

GD-0014 Taper collets
- Item No.: CO154037734
- Send Enquiry
1.Products name : Taper collets
2.Material:65Mn
3.Hardness: HRC44-48
4.Taper: MS1 MS2 MS3 MS4
5.Accuracy:0.015mm
6.Mini order quantity: 10pcs
7.Package : Plastic box
8.Brand : GD-TOOLS
| GD-0014 | TAPE COLLETS | ||||||
| Order No. | JMS1-d | JMS2-d | JMS3-d | JMS4-d | J7B&-d | J9B&-d | |
| Taper | MS1 | MS2 | MS3 | MS4 | B&S7 | B&S9 | |
| Hole size | In | 1/16-5/16 | 1/8-1/2 | 1/8-3/4 | 1/8-1 | 1/8-1/2 | 1/8-3/4 |
| Mm | 2-8 | 2-12 | 3-20 | 3-25 | 2-12 | 3-20 | |
| D(mm) | 12.2 | 18 | 24.1 | 31.5 | 18.4 | 27.08 | |
| L(mm) | 57 | 68 | 86 | 108 | 79.4 | 105 | |
| Wt(kg)） | 0.05 | 0.08 | 0.10 | 0.38 | 0.096 | 0.32 | |
