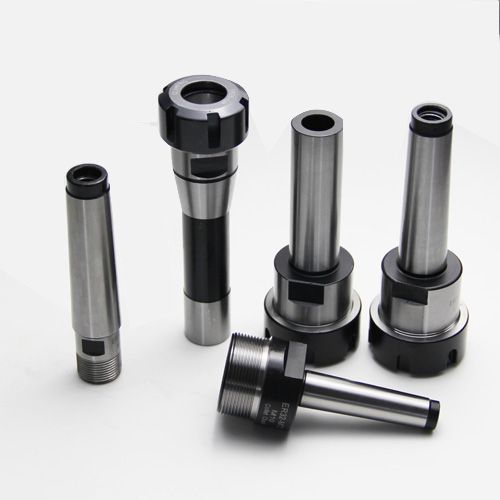

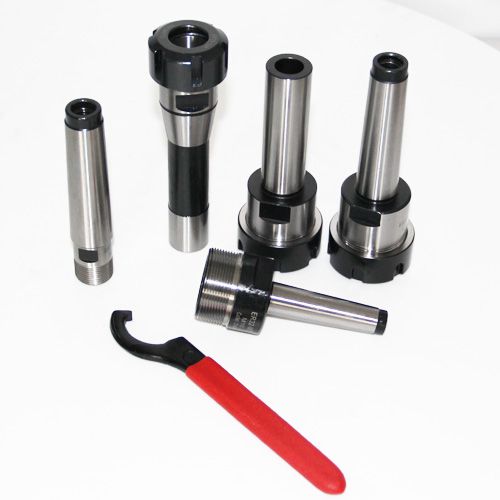

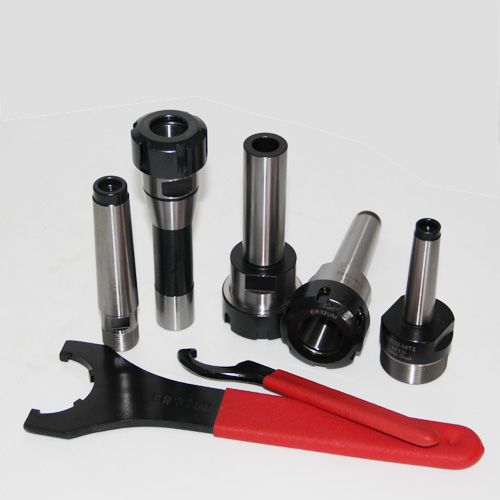

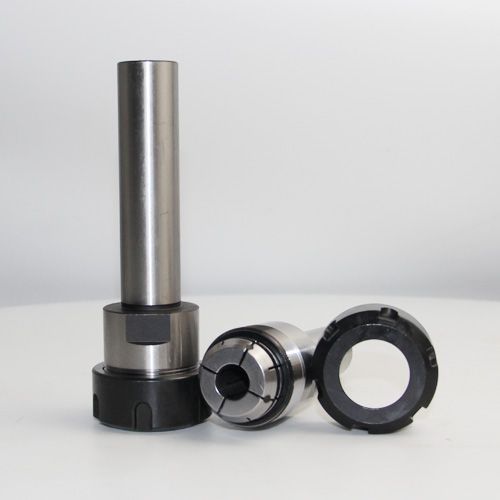

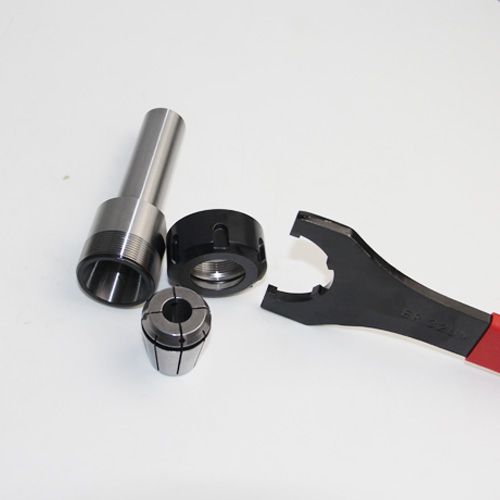

GD-0017 Morse taper collet chuck

1.Products name:Morse taper collet chuck

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Type: MS2 MS3 MS4 MS5

7.Mini order quantity:10pcs

8.Package:Plastic box

9.Brand:GD-TOOLS

GD-0017 MORSE TAPER COLLET CHUCK
Order No. MS.NO. d D L1
MS2×ER11 MS2 1-7 19 35.3
MS2×ER16 MS2 1-10 28 44.3
MS2×ER20 MS2 1-13 34 53.3
MS2×ER25 MS2 1-16 42 57.7
MS3×ER16 MS3 1-10 28 49.3
MS3×ER20 MS3 1-13 34 56.2
MS3×ER25 MS3 1-16 42 55.7
MS3×ER32 MS3 2-20 50 65.7
MS3×ER40 MS3 3-26 63 71.7
MS4×ER16 MS4 1-10 28 46.5
MS4×ER20 MS4 1-13 34 51.7
MS4×ER25 MS4 1-16 42 46.7
MS4×ER32 MS4 2-20 50 74.2
MS4×ER40 MS4 3-26 63 69.7
MS5×ER40 MS5 3-26 63 69.2
MS5×ER50 MS5 6-34 78 85
