Collets series

GD-0013 DIN6343 clamping collets

Item No.: CO154057734
Send Enquiry

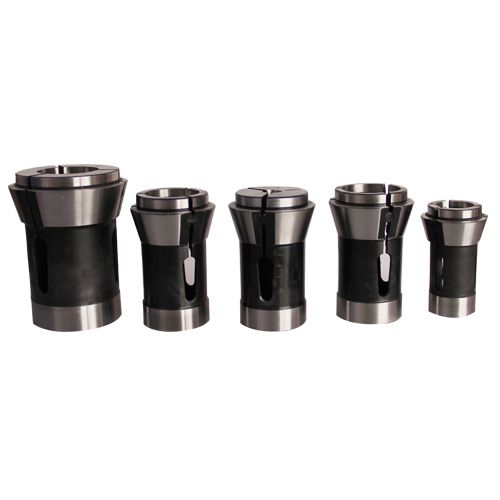

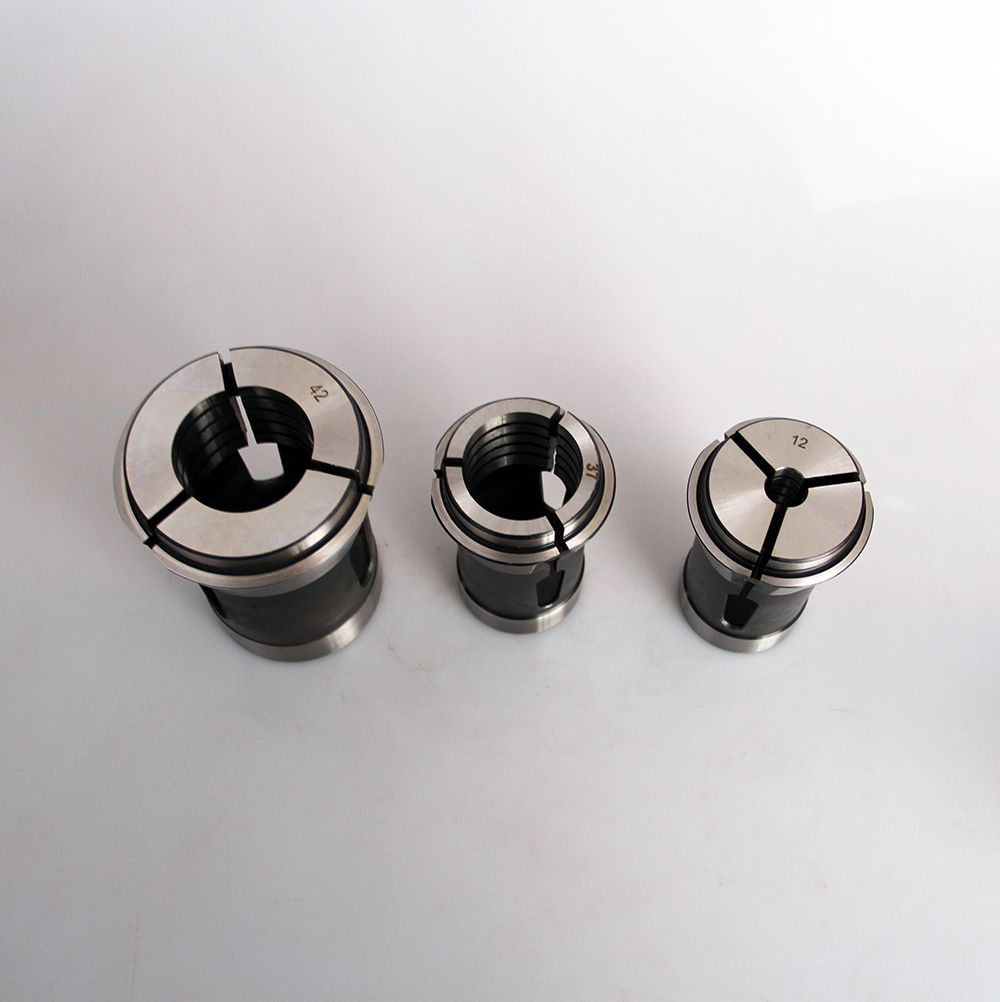

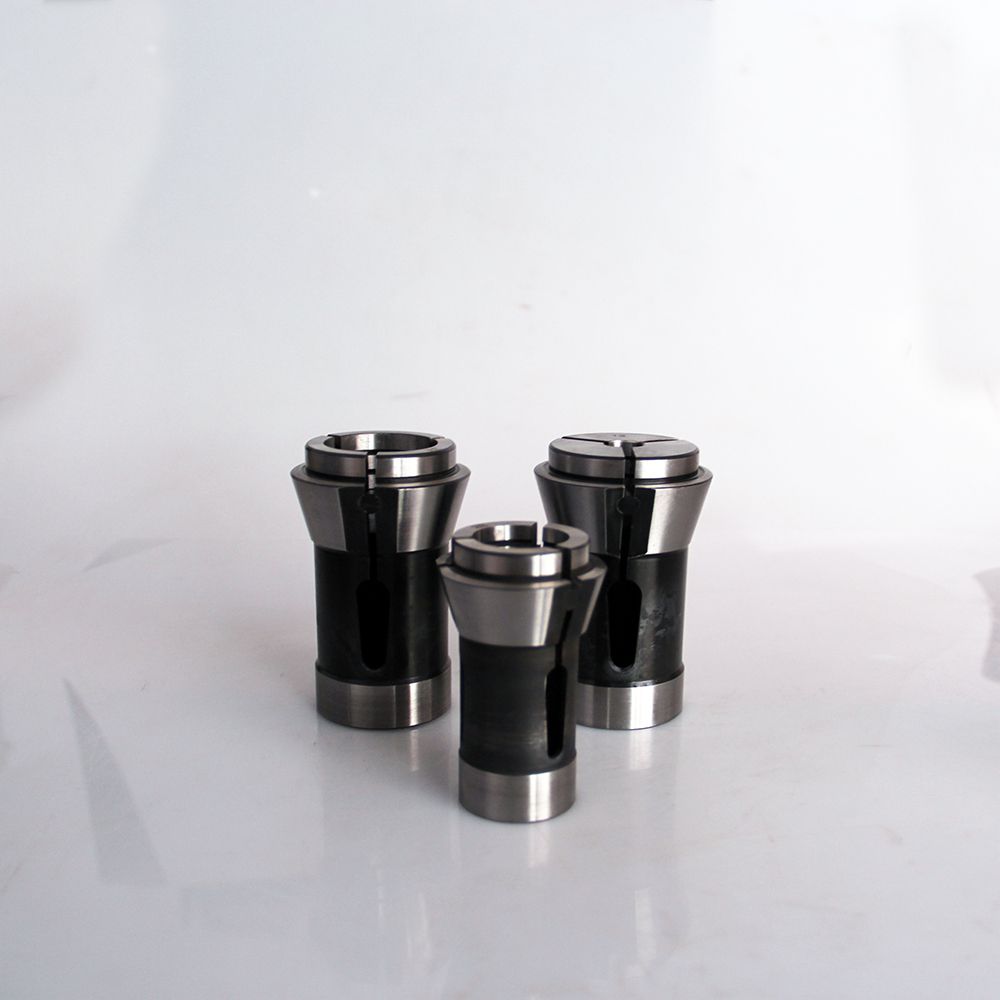

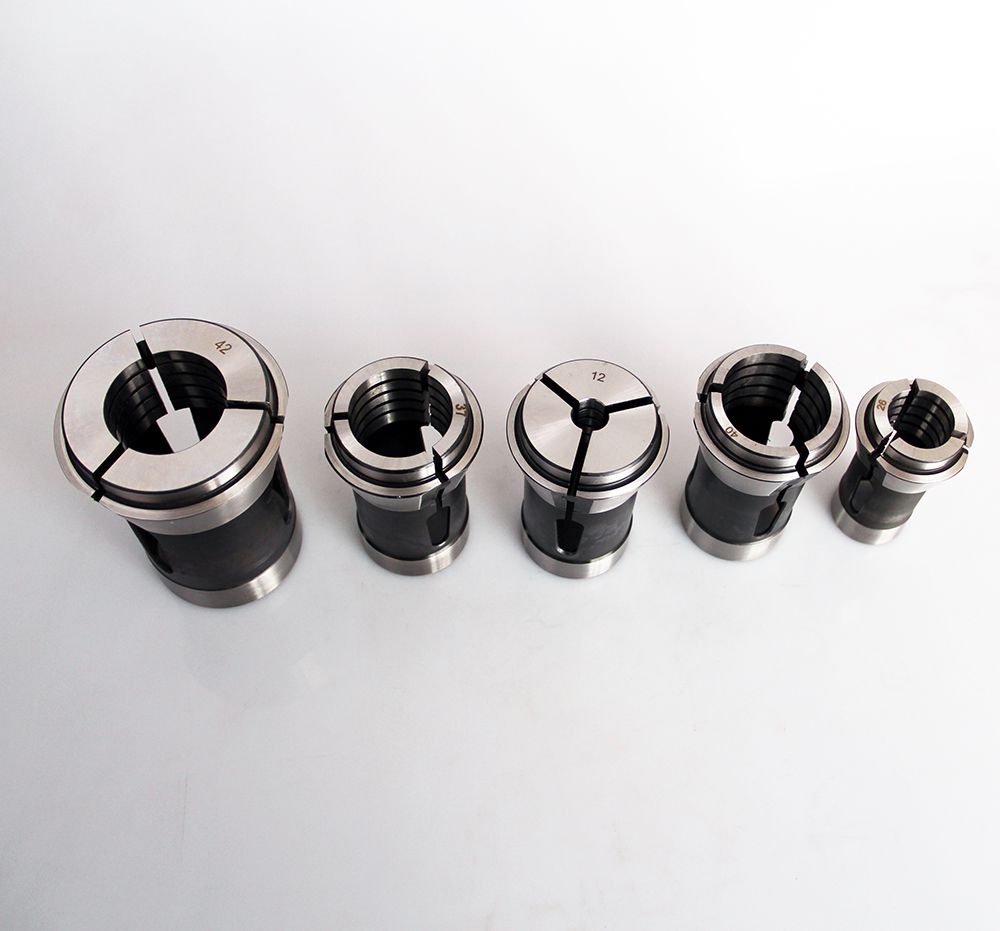

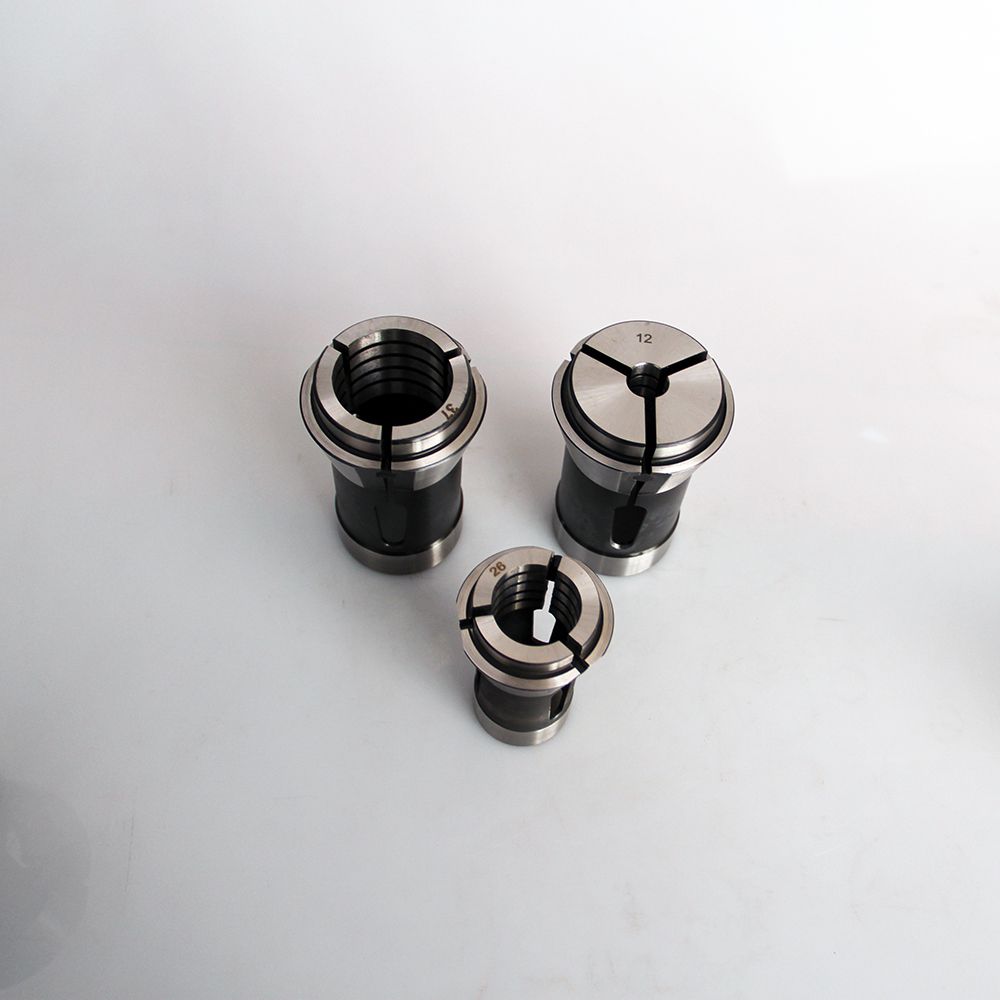

1.Products name : DIN6343 CLAMPING COLLETS

2.Material:65Mn

3.Hardness: clamping part HRC55-60 elastic part HRC40-45

4.This unit is applicable to all sorts of automatic lathes,turret lathes.

5.Accuracy:0.015mm

6.Type:Round Square Hex

7.Mini order quantity: 10pcs

8.Package : Plastic box

9.Brand : GD-TOOLS

GD-0013	DIN6343 CLAMPING COLLETS
Mode	D1 (mm)	D2 (mm)	L (mm)	Hole size(mm)			Wt(kg)
Mode	D1 (mm)	D2 (mm)	L (mm)	ROUND	SQUARE	HEX	Wt(kg)
DIN6343-F17.5	17.5	22	51	13	8	10	0.05
DIN6343-F22	22	30	55	16	11	13	0.09
DIN6343-F27	27	38	72.7	22	15	19	0.10
DIN6343-F28	28	38	70	22	15	19	0.12
DIN6343-F32	32	45	75	26	18	22	0.27
DIN6343-F35	35	48	80	30	21	26	0.35
DIN6343-F42	42	55	94	36	25	30	0.49
DIN6343-F48	48	60	94	42	29	36	0.57
DIN6343-F56	56	68	94	50	35	42	0.65
DIN6343-F66	66	84	110	60	42	52	1.16
