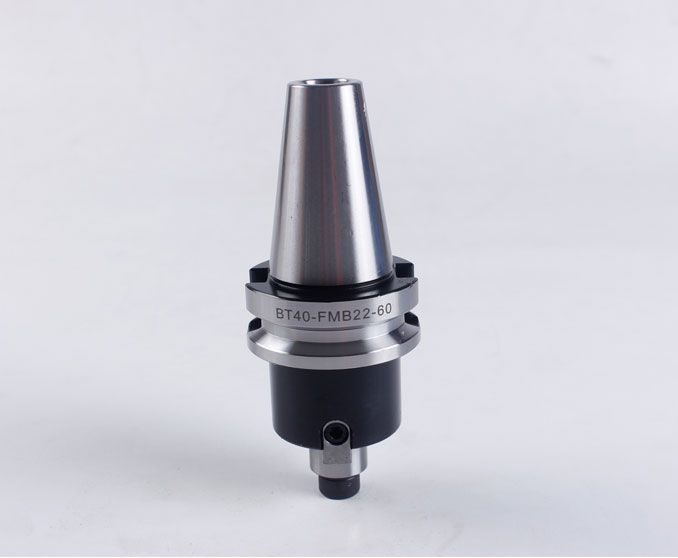

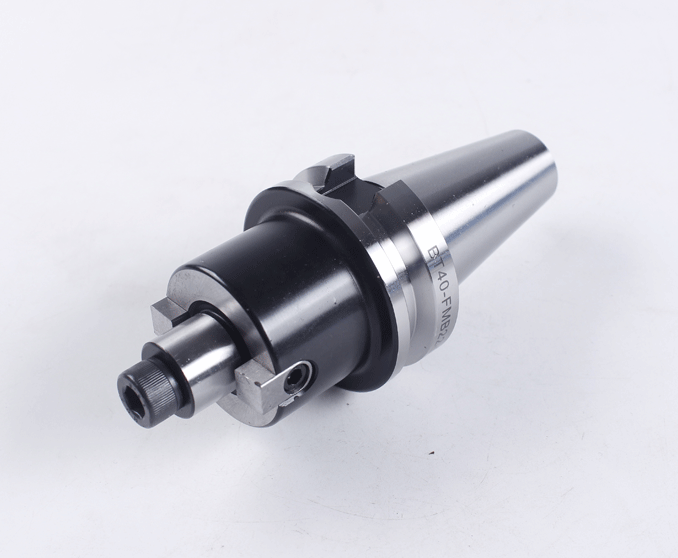

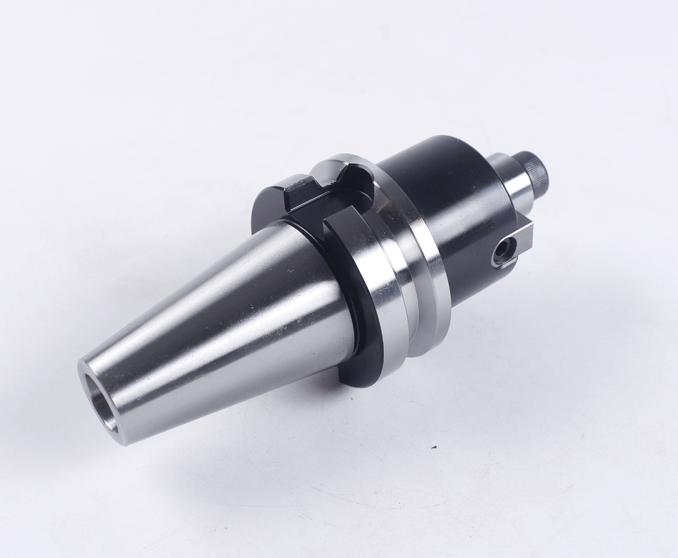

GD-0079 DIN Shell mill arbors

1.Products name: DIN69871 Shell mill arbors

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

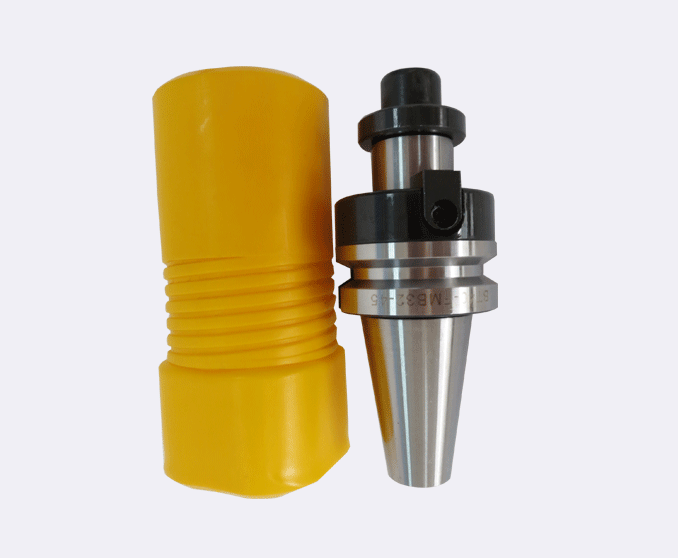

5.Package: Plastic box

6.Type: DIN69871.A30 DIN69871.A40 DIN69871.A50

7.Balanced:G6.3/12000rpm G2.5/20000rpm

8.Standard form: AD AD/B

9.When order please indicate the hile the concrete form.if needs in the center cold and the flange water leakage hilt,please marke AD/B

10.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm,the precision is G2.5/20000rpm.

GD-0079 DIN Shell mill arbors
Order No. DIN69871.Axd-L1 D Wt(kg) Order No. DIN69871.Axd-L1 D Wt(kg)
DIN69871.A30*16-60 32 1 DIN69871.A40*27-75 48 1.6
DIN69871.A30*22-60 40 1.3 DIN69871.A40*32-60 58 4.5
DIN69871.A30*27-60 48 1.5 DIN69871.A40*40-60 70 4.8
DIN69871.A30*32-60 58 1.8 DIN69871.A50*16-60 32 3.8
DIN69871.A30*40-60 70 2.2 DIN69871.A50*22-60 40 4
DIN69871.A40*16-60 32 1.2 DIN69871.A50*27-60 48 4.2
DIN69871.A40*22-60 40 1.3 DIN69871.A50*32-60 58 4.5
DIN69871.A40*27-60 48 1.4 DIN69871.A50*40-60 70 4.8
