GD-0078 BT shell mill arbors

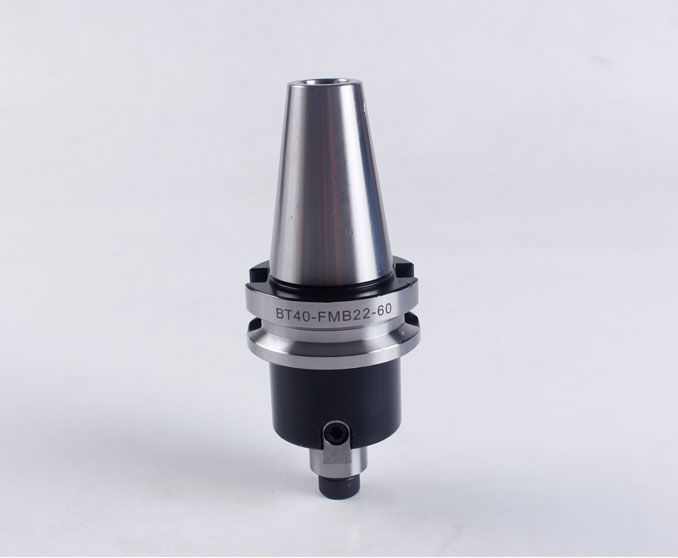

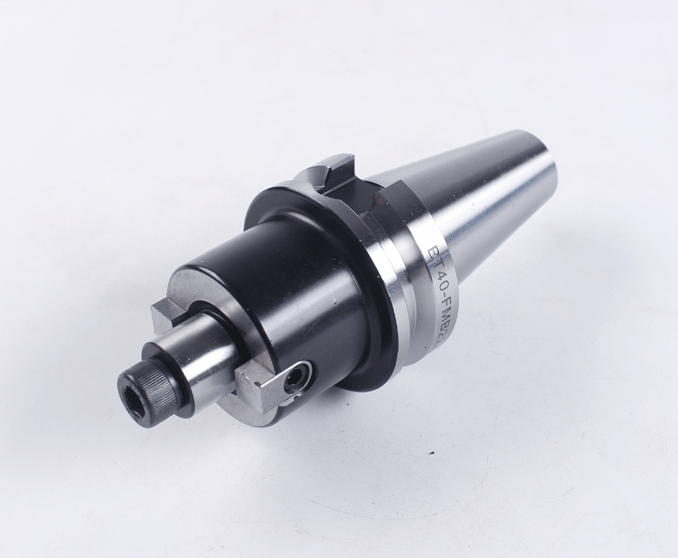

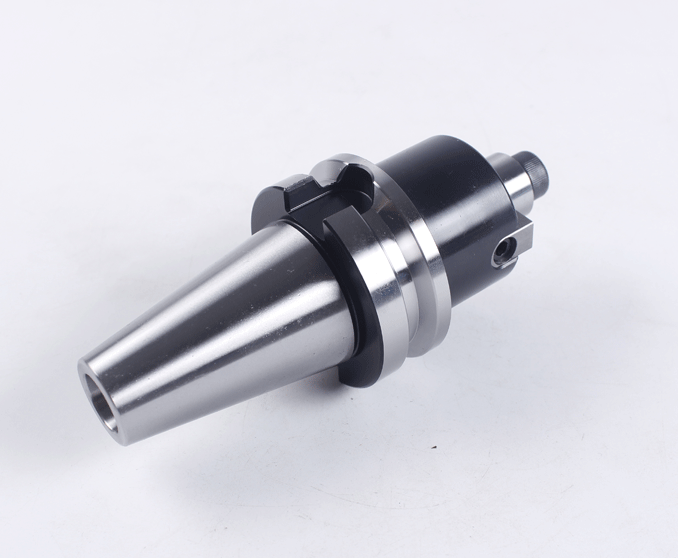

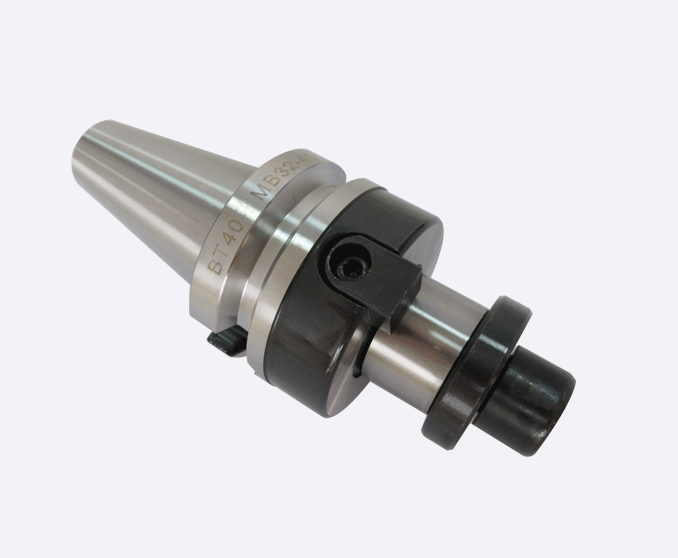

1.Products name: BT Shell mill arbors

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

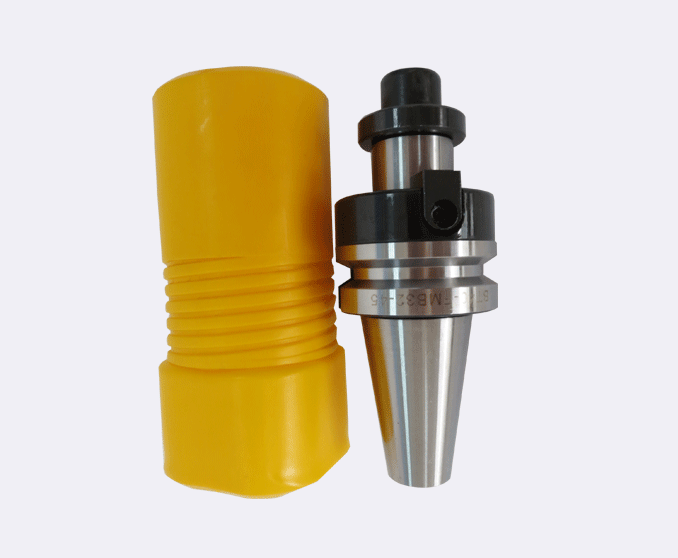

5.Package: Plastic box

6.Type: BT30 BT40 BT50

7.Balanced:G6.3/12000rpm G2.5/20000rpm

8.Standard form: AD AD/B

9.When order please indicate the hile the concrete form.if needs in the center cold and the flange water leakage hilt,please marke AD/B

10.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm,the precision is G2.5/20000rpm.

GD-0078 BT Shell mill arbors
Order No. BT*d-L1 D Wt(kg) Order No. BT*d-L1 D Wt(kg)
BT30*16-60 32 1 BT40*40-75 70 2.2
BT30*22-60 40 1.3 BT40*50-70 90 2.5
BT30*27-60 48 1.5 BT50*16-60 32 3.6
BT30*32-60 58 1.8 BT50*16-75 32 3.9
BT30*40-60 70 2.2 BT50*16-120 32 4.3
BT40*16-45 32 1 BT50*22-60 40 5
BT40*16-60 32 1.3 BT50*22-75 40 4
BT40*16-120 32 1.7 BT50*22-100 40 4.5
BT40*22-45 40 1.5 BT50*22-120 40 5
BT40*22-60 40 1.7 BT50*27-60 48 5.5
BT40*22-100 40 3 BT50*27-105 48 4
BT40*22-120 40 3.6 BT50*32-60 58 4.5
BT40*27-45 48 1.5 BT50*32-75 58 1.6
BT40*27-60 48 1.6 BT50*32-105 58 1.8
BT40*27-75 48 1.8 BT50*40-60 70 2.2
BT40*27-105 48 2.1 BT50*40-75 70 3.6
BT40*27-120 48 2.3 BT50*40-90 70 3.7
BT40*32-45 58 1.2 BT50*40-100 70 3.75
BT40*32-60 58 1.5 BT50*40-105 70 3.8
BT40*32-75 58 1.8 BT50*50-60 90 4
BT40*32-120 58 2.8 BT50*50-70 90 4.2
BT40*40-60 70 2 BT50*50-120 90 4.4
