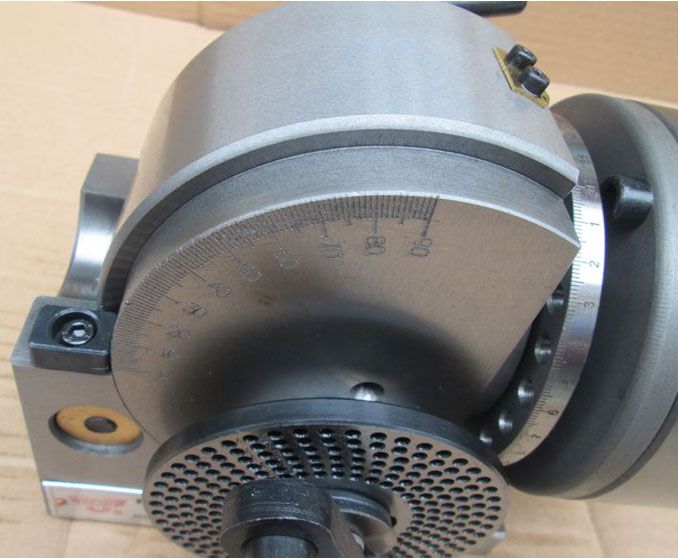

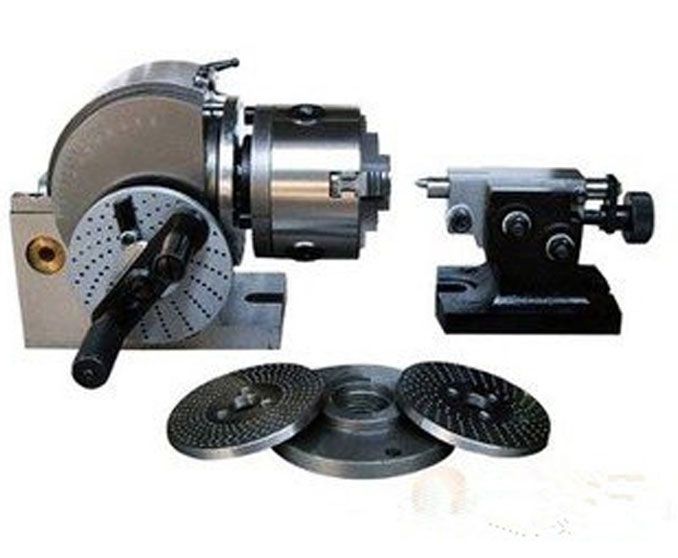

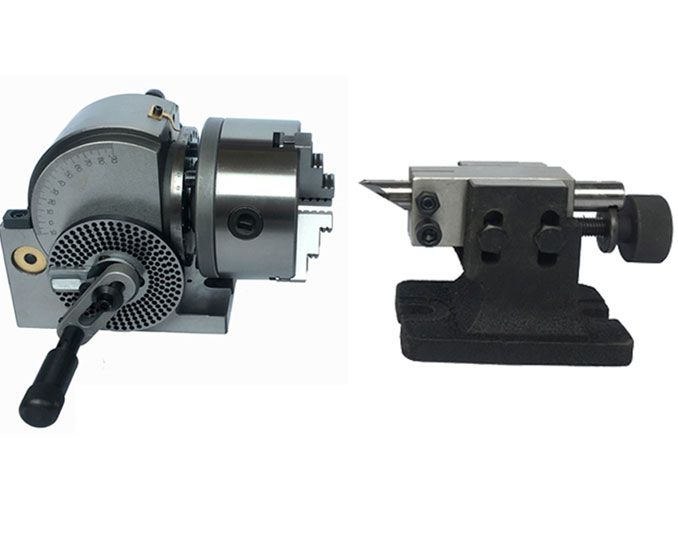

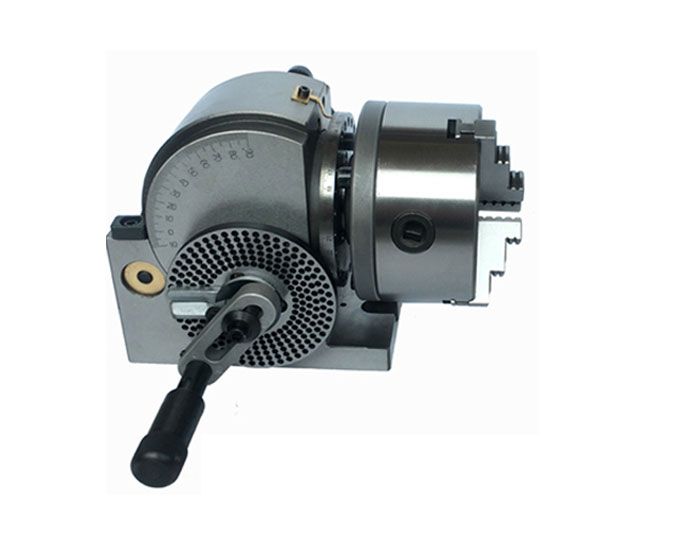

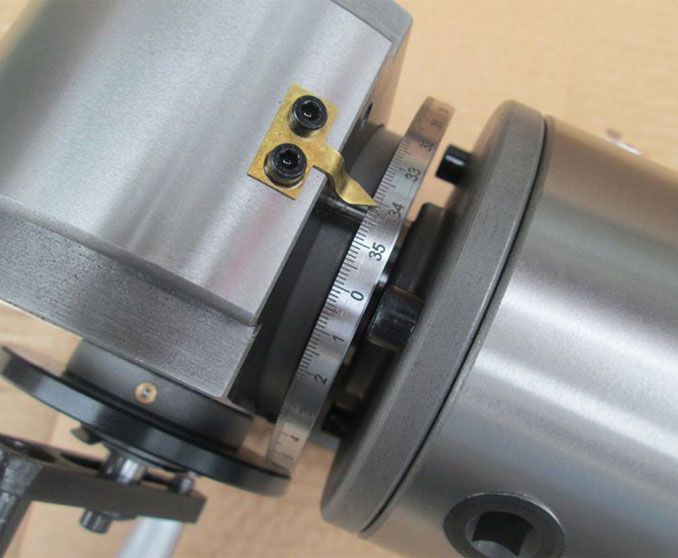

GD-0052 F12 semi-universal dividing head

Product name :F12 universal dividing head
Model :F12
Type:Dividing head
Usage:Dividing Workpiece
Material:alloy steel
Product features：Semi-Universal dividing head is a simple type of univeraslindex center and can be used for direct and indirectdividing.
No accessories for the differential dividing andspiral work are included,but the whole construstion of the dividing head is identical with the universal type .

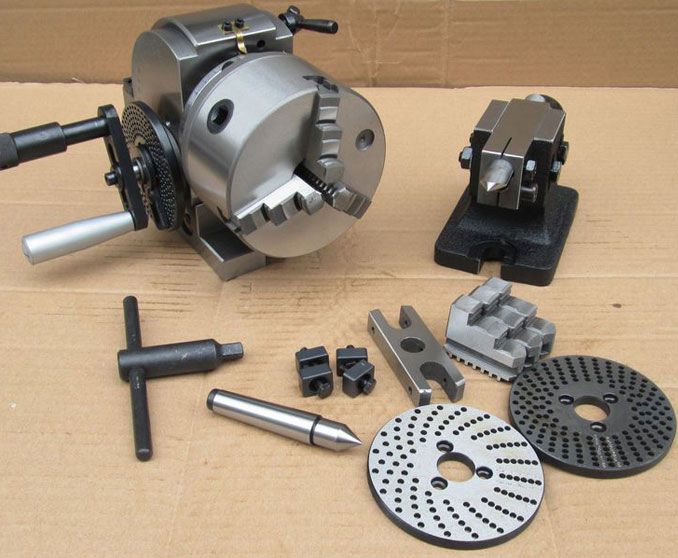

The direct index plate of 24 holes allows the direct dividing in2、3、4、6、8 12and24 three plates in the standard accessories make the indirect dividing
possible in any number from 2 to 50 and in certain numbers up to 380
