Index Fixture Series

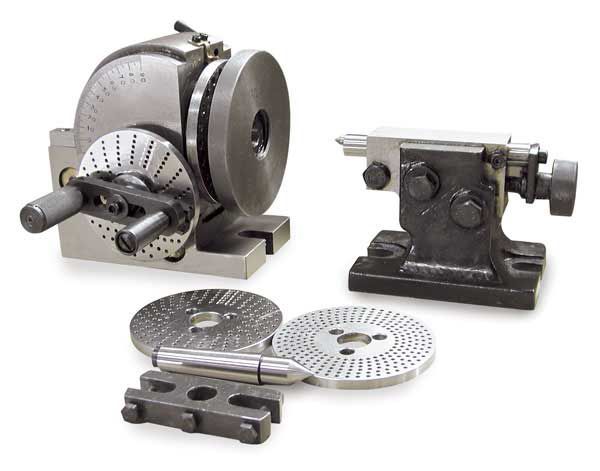

GD00534 UNIVERSAL DIVIDING HEAD

Features:
The Universal dividing head(Tndex Center)has been designed to carry out all types of gear cutting.Precision dividing and
spiral word with greater precision and efficiency than before .The center face can adjust form elevation 90 to depression
10,It suits for high standard insprction and test.In order to satisfied customers,the worm gear redio is designed for 1:40

UNIVERSAL INDEX CENTER B&S NO.2,(HEAD-STOCK)								Unit:mm/in
Model	A	B	H	h	a	b	g	Work hole taper	N.W.(KG)
BS-2	370	280	236	133	212	134	16	MT4	73
BS-2	14.57	11.02	9.29	5.24	8.35	5.28	0.63	B&S NO.10	73
BS-2A	264	210	236	133	212	134	16	MT4	52
BS-2A	10.39	8.26	9.29	5.24	8.35	5.28	0.63	B&S NO.10	52
UNIVERSAL INDEX CENTER B&S NO.2,(TAIL-STOCK)								Unit:mm/in
Model	A1	B1	H1	h	a1	b1	g1	N.W.(KG)	Mueasurement m³
BS-2/	183	87	156	133	175	122	16	Packed with the dividing head
BS-2A	7.2	3.42	6.14	5.24	6.89	4.8	0.63	Packed with the dividing head
STANDARD ACCESSORIES
Dividing plate A.B.C.
Numbers of holes of dividing plate
(worm gear reduction ratio 1:40)							Unit:mm/in
Numbers	PlateA	15	16	17	18	19	20
of holes	PlateB	21	23	27	29	31	33
of holes	PlateC	37	39	41	43	47	49
