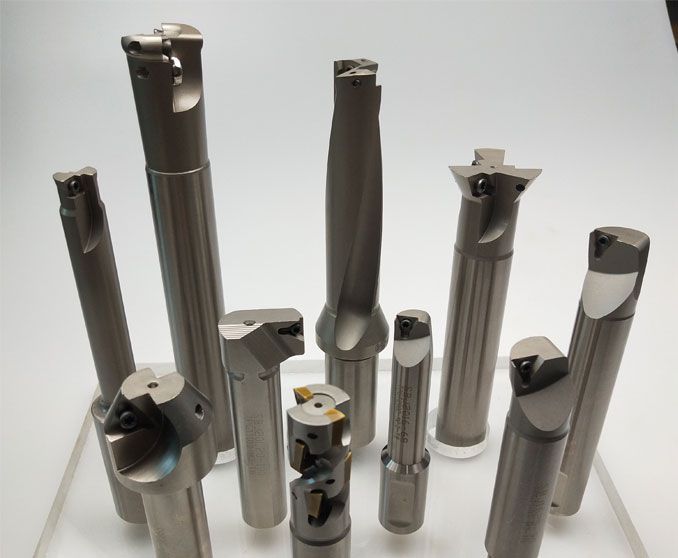

NBH2048 INERCHANGEABLE BORING CUTTER GD-00128

Item No.: CO162213734
Send Enquiry

1.Products name : NBH2048 INERCHANGEABLE BORING CUTTER
2.Material: 40crmo
3. application:0.002mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

Features:
1.NBH2048is a small diameter boring system in which diameter size ranges from 8-280mm.
2.The minimum dial is 0.001mm with semi diameter 0.005mm.
3.While moving in small scope, the highest speed<1600rpm .

GD-00128	NBH2084 INTERCHANGEABLE BORING CUTTER						刀片Insert	螺丝 Screw	扳手Wrench
规格/型号Model		尺寸size（mm)
规格/型号Model		D	范围range	L	L2	L3
SBJ2008-32L		20	8-11	80	32	32	TBGT060102	SB-1STR-M2*5.0	T6
SBJ2010-40L		20	10-13	87	40	32	TBGT060102	SB-1STR-M2*5.0	T6
SBJ2012-53L		20	12-17	98	53	32	TPGH090202	SB-2TR-M2.5*5.0	T8
SBJ2016-68L		20	16-21	110	68	32	TPGH090202	SB-2TR-M2.5*5.0	T8
SBJ2020-83L		20	20-130	123	83	32	TPGH110302 TPGH110304	SB-3TR-M3*8.0	T10
SBJ2025-96L		20	25-135	137	96	32
SBJ2030-115L		20	30-140	152	115	32
SBJ20-20-100L		20	120-280	97	100	32
SBJ2020-150L加长		20	20-130	190	150	32
SBJ2020-200L加长		20	20-130	240	200	32
SBJ2025-150L加长		20	25-135	191	150	32
SBJ2025-200L加长		20	25-135	241	200	32
SBJ2030-150L加长		20	30-140	187	150	32
SBJ2020-200L加长		20	30-140	237	200	32
SBJ2020-20-180L		20	120-280	177	180	32
