Inquiry:
Collets series
Precision collets CSK system GD-0002-3
- Item No.: CO153321734
- Send Enquiry

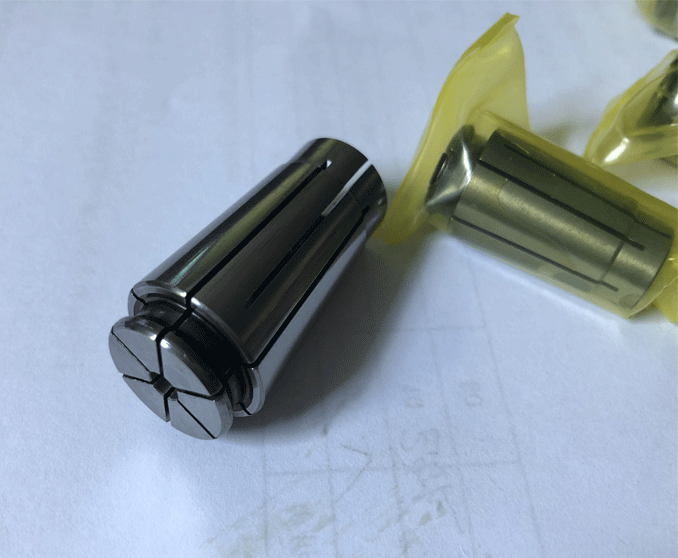

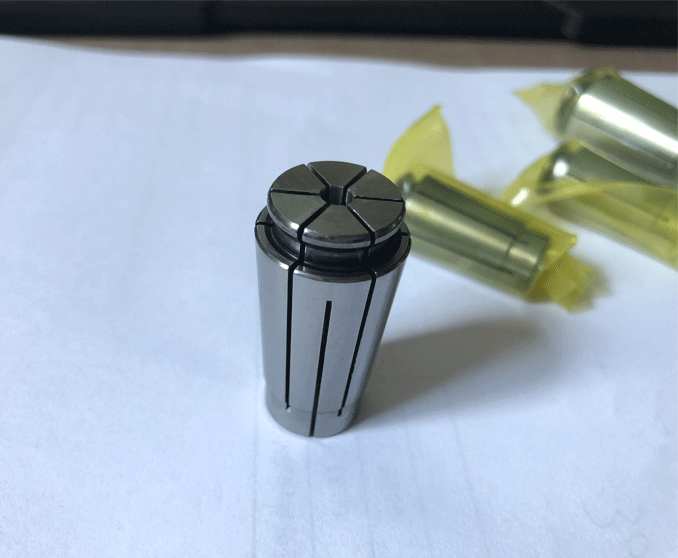

1.Products name:Precision collets CSK system
2.Accuracy : 0.005mm
3.Material: SUJ2
4.Hardness:HRC44-48
5.Type:CSK06 CSK10 CSK13 CSK16 CSK20 CSK25
6.Package:White box Plastic box
7.Brand:GD-TOOLS
| GD-0002-3 | Precision collets CSK system | ||||||||
| Model | d | d1 | d2 | d3 | d4 | L | L1 | L2 | L3 |
| CSK06 | 8.9(8.6) | 10.5 | 7.5 | 6 | 8 | 25 | 18 | 4 | 2.5 |
| CSK10 | 13.7(13.1) | 15.6 | 12 | 10 | 12 | 30.5 | 22 | 5 | 2.6 |
| CSK13 | 18.5 | 20.1 | 17 | 13 | 15 | 39 | 28 | 5 | 2.5 |
| CSK16 | 21.3(20.6) | 24.6 | 18.8 | 16 | 19 | 45 | 32 | 8 | 2.8 |
| CSK20 | 26.5 | 30 | 24 | 20 | 23 | 50 | 42 | 8 | 2.8 |
| CSK25 | 31.1(29.9) | 35.6 | 28.8 | 25.40 | 28.2 | 57 | 43 | 8.5 | 2.9 |
