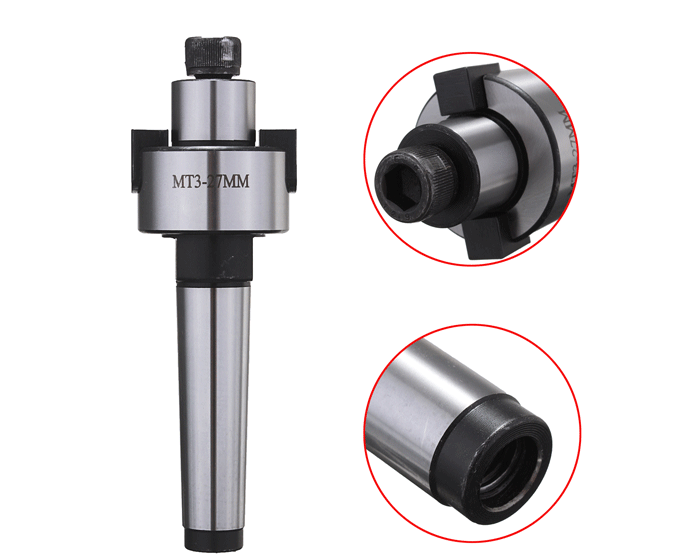

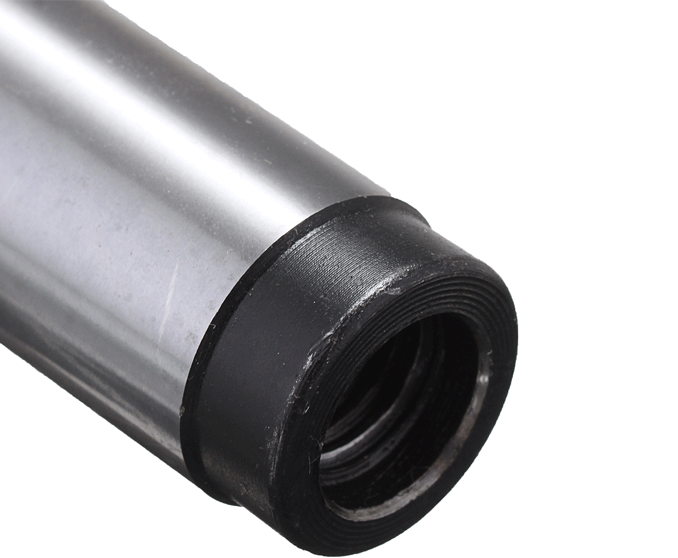

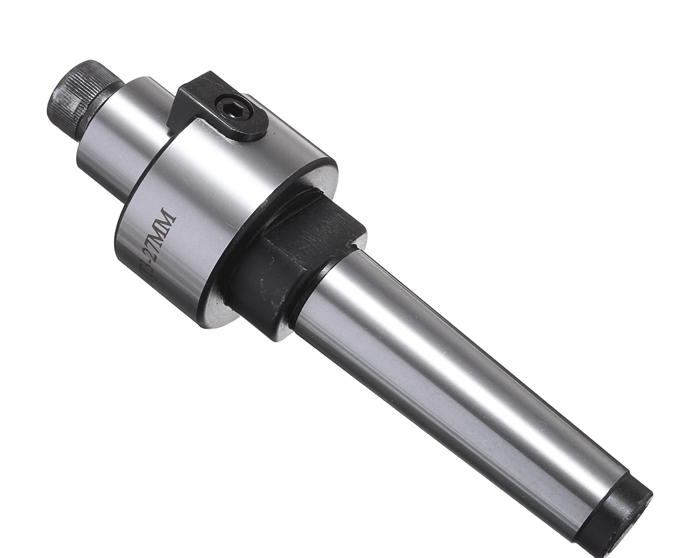

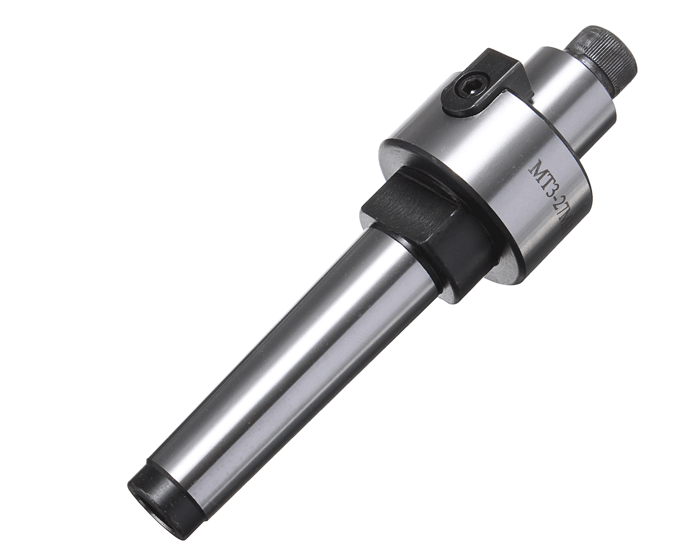

GD-0040 Morse Taper Shell End

1. High quality elastic steel material with long use time.

2. Type: Draw Bar and Tang

3. Shank of the Shell End Mill Arbors: MS1-MS5 BT30 BT40 BT50 DIN69871 A30 DIN69871 A40 DIN69871 A50 CT30 CT40 CT50

4. Suitable Facing Cutter13mm-60mm

5. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand.

6. Holder hardness:48-55HRC

7. Suitable Pull Stub& Facing Cutter is also upon request.

GD-0040 MORSE TAPER SHELL END MILL ARBORS (TANG TYPE)
Order No. D d W Order No. D d W
(mm) (mm) (mm) (mm) (cm) (cm)
SD/MS2-1-2   1/2 6.35 SD/MS2-13   13 8
SD/MS2-5-8 17.780 5/8 7.14 SD/MS2-16 17.780 16 8
SD/MS2-3-4   3/4 7.97 SD/MS2-22   22 10
SD/MS2-7-8   7/8 8.70 SD/MS2-27   27 12
SD/MS3-1-2   1/2 6.35 SD/MS3-13   13 8
SD/MS3-5-8   5/8 7.14 SD/MS3-16   16
SD/MS3-3-4 23.825 3/4 7.94 SD/MS3-22 23.825 22 10
SD/MS3-7-8   7/8 8.70 SD/MS3-27   27 12
SD/MS3-1   1 9.53 SD/MS3-32   32 14
SD/MS3-1-1/4   1-1/4 12.70 SD/MS3-40   40 16
SD/MS4-1-2   1/2 6.35 SD/MS3-13   13 8
SD/MS4-5-8   5/8 7.14 SD/MS3-16   16
SD/MS4-3-4   3/4 7.94 SD/MS3-22   22 10
SD/MS4-7-8 31.267 7/8 8.70 SD/MS3-27 31.267 27 12
SD/MS4-1   1 9.53 SD/MS3-32   32 14
SD/MS4-1-1/4   1-1/4 12.70 SD/MS3-40   40 16
SD/MS4W-1-1/2   1-1/2 15.88 SD/MS3-50   50 18
SD/MS5-1-2   1/2 6.35 SD/MS3-16   16 8
SD/MS5-5-8   5/8 7.14 SD/MS3-22   22 10
SD/MS5-3-4   3/4 7.94 SD/MS3-27   27 12
SD/MS5-7-8 44.399 7/8 8.70 SD/MS3-32 44.399 32 14
SD/MS5-1   1 9.53 SD/MS3-40   40 16
SD/MS5-1-1/4   1-1/4 12.70 SD/MS3-50   50 18
SD/MS5-1-1/2   1-1/2 15.88 SD/MS3-60   60 20
SD/MS5-2   2 19.05
