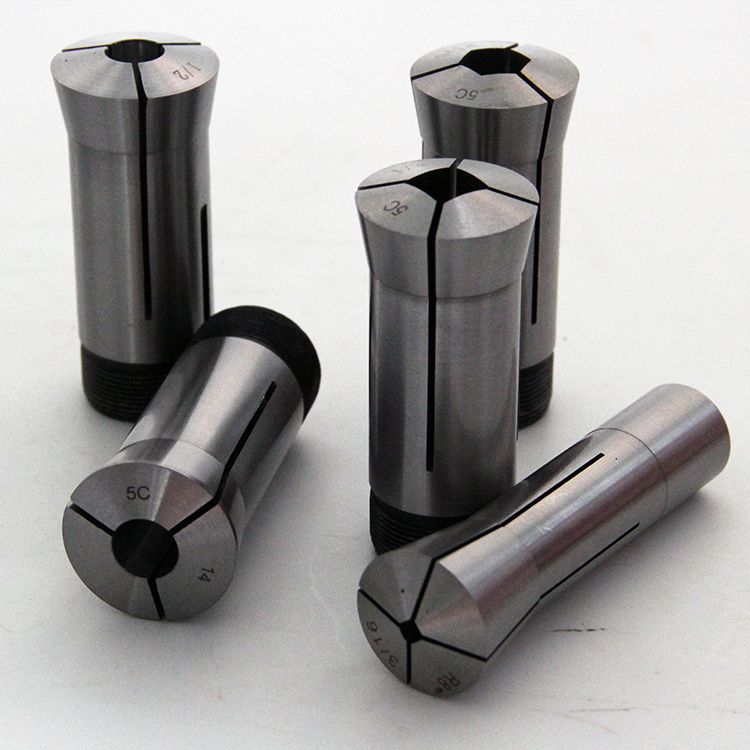

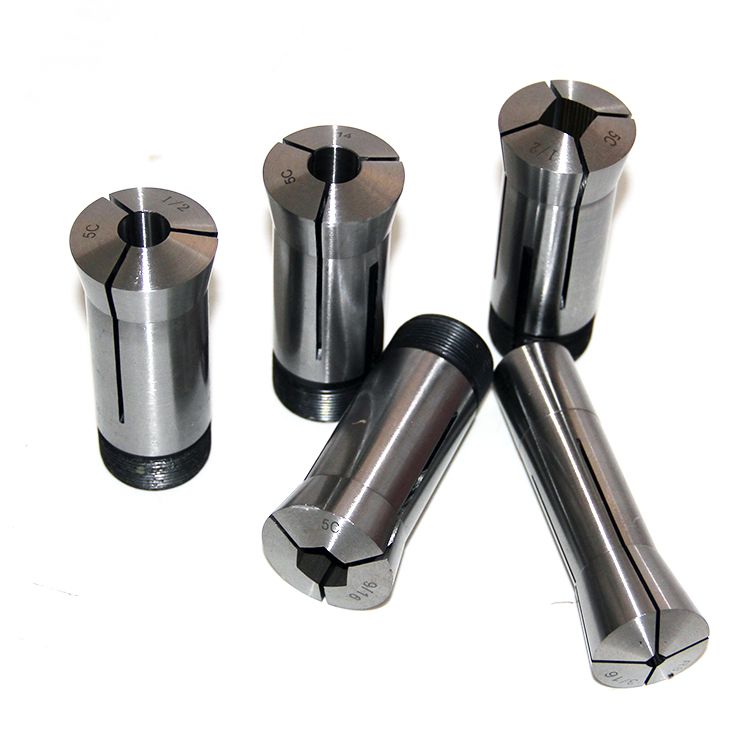

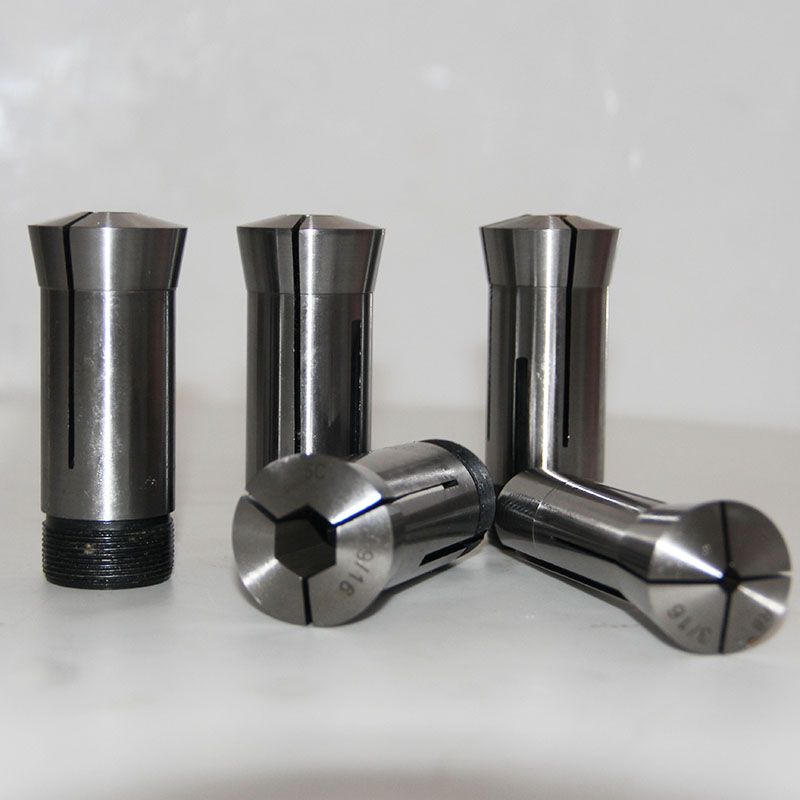

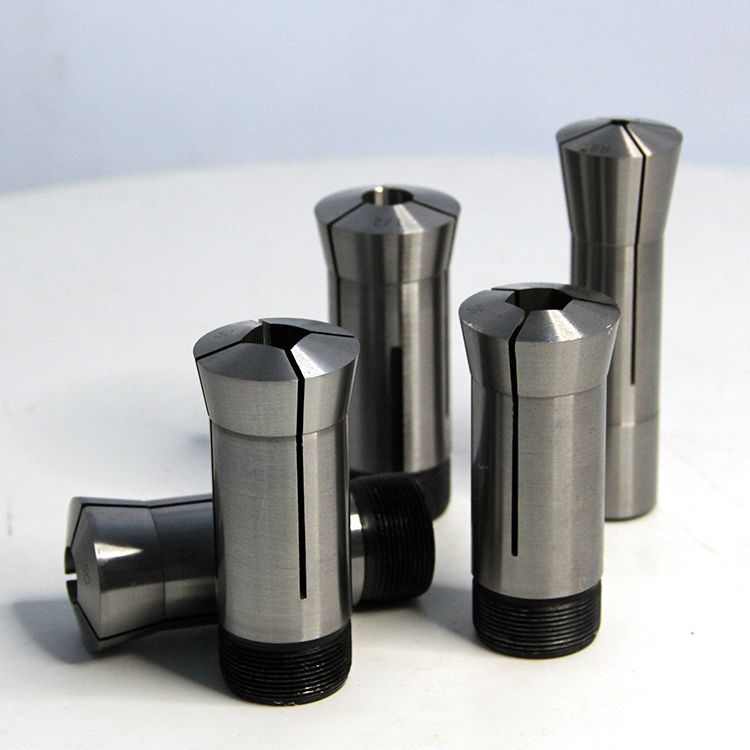

GD-0011 R8 COLLET

Item No.: CO154111734
Send Enquiry

1.Products name : R8 COLLETS

2.Material:65Mn

3.Hardness: clamping part HRC55-60 elastic part HRC40-45

4.This unit is applicable to all sorts of milling machines,which spindle taper hole is R8,such as X6325、X5325 etc.

5.Accuracy:0.015mm

6.Type:Round Square Hex

7.Mini order quantity: 10pcs

8.Package : Paper box

9.Brand : GD-TOOLS

GD-0011	R8 COLLET
Order No.	Type	Clamping range		Wt(kg)
		mm	In
R8-01-d	Round	1-20	1/16-7/8	0.24
R8-02-S	Square	3-13	1/8-1/2	0.24
R8-03-H	Hex	3-16	1/8-5/8	0.24

Inspection of Accuray
d		L	Run out
mm	in	mm	in	mm
1-1.6	1/32-1/16	6.35	0.0005	0.013
>1.6-3	>1/16-1/8	12.7	0.0005	0.013
>3-10	>1/8-3/8	25.4	0.0005	0.013
>10-16	>3/8-5/8	38.1	0.0005	0.013
>16-20	>5/8-7/8	50.8	0.0005	0.013
