Quick Change Tool Post

GD-0058 quick change tool post turning boring and facing holder

Item No.: CO16132734
Send Enquiry

Product name:Turning Boring And Facing Holder
Hardness：HRC50-60
Type：Quick change
Material：spheroidal cast iron
Accuracy：high accuracy for fix-position
Feature:exchange tool quickly,high precision
Product series:TOOL-QUICK CHANGE TOOL POSTS
Package:Plastic Box or Wooden box
Usage:CNC Machine Center

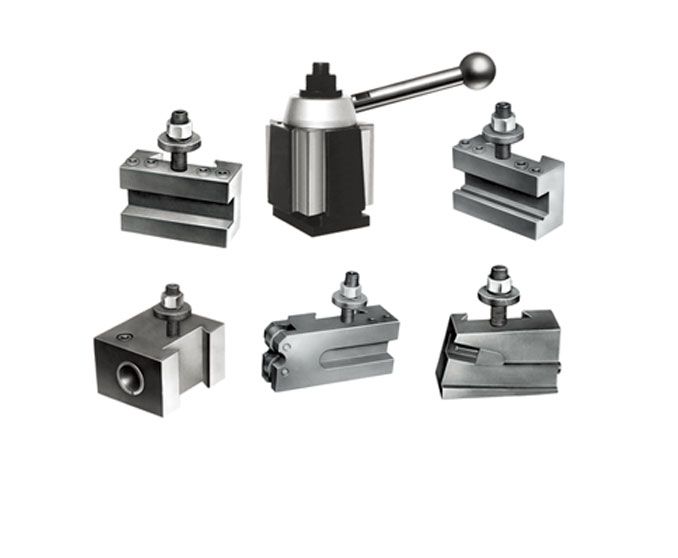

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.

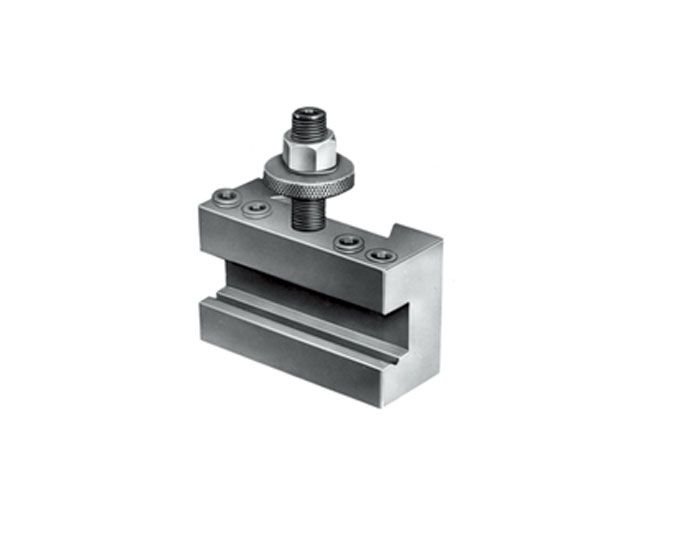

TURNING BORING AND FACING HOLDER

GD-0058	TURNING BORING AND FACING HOLDER
Order No.	A(in)	B1(in)	C(in）	D（in）	Tool bit.range （in）	Wt（kg）
250-102	1	1/2	29/64	1-1/2	3/16-1/2	0.40
250-202	1-1/8	5/8	1/2	1-3/4	1/4-5/8	0.70
250-303	1-7/16	3/4	5/8	2-1/8	1/2-3/4	1.11
250-404	1-23/32	1	3/4	2-1/2	1/2-1	1.75
