Quick Change Tool Post

  • GD-0059 heavy duty boring bar holder tool post
  • GD-0059 heavy duty boring bar holder tool post
  • GD-0059 heavy duty boring bar holder tool post
  • GD-0059 heavy duty boring bar holder tool post
GD-0059 heavy duty boring bar holder tool post GD-0059 heavy duty boring bar holder tool post GD-0059 heavy duty boring bar holder tool post GD-0059 heavy duty boring bar holder tool post

GD-0059 heavy duty boring bar holder tool post

Product name:Heavy duty boring bar holder
Hardness:HRC50-60
Type:Quick change
Material:spheroidal cast iron
Accuracy:high accuracy for fix-position
Feature:exchange tool quickly,high precision
Product series:TOOL-QUICK CHANGE TOOL POSTS
Package:Plastic Box or Wooden box
Usage:CNC Machine Center

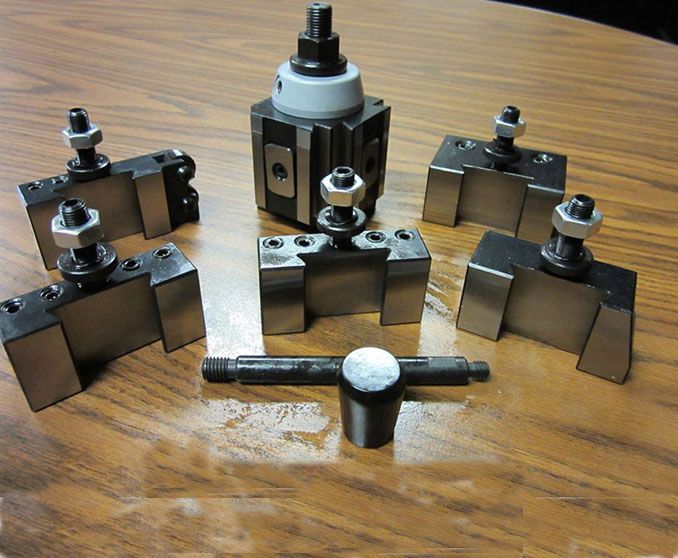

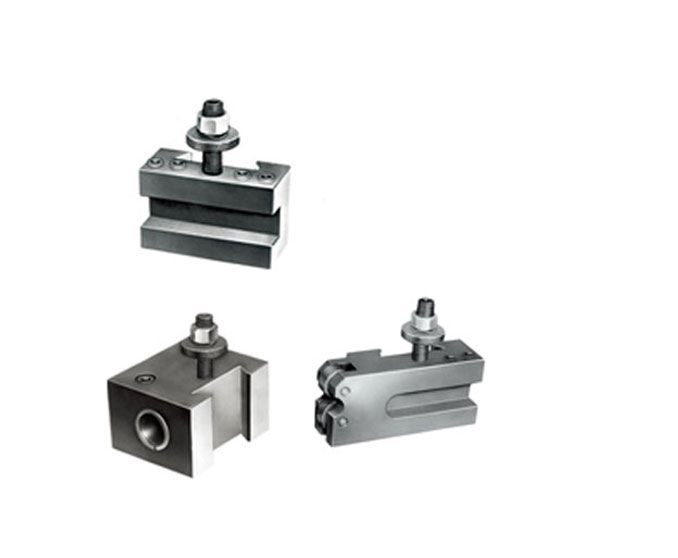

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.

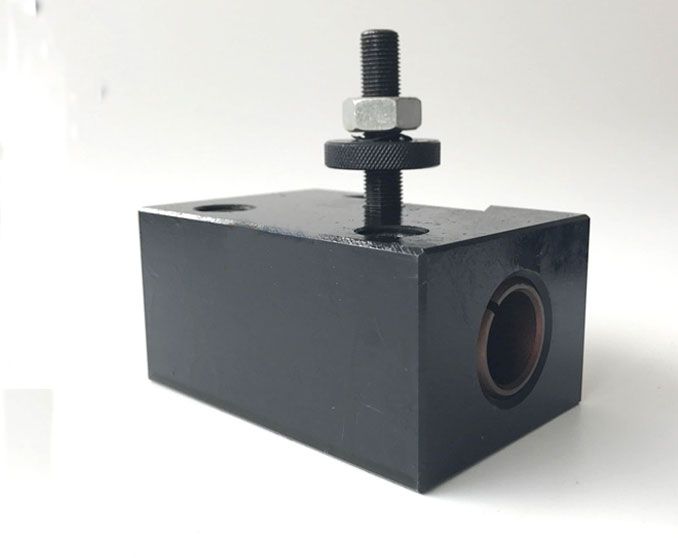

HEAVY DUTY BORING BAR HOLDER

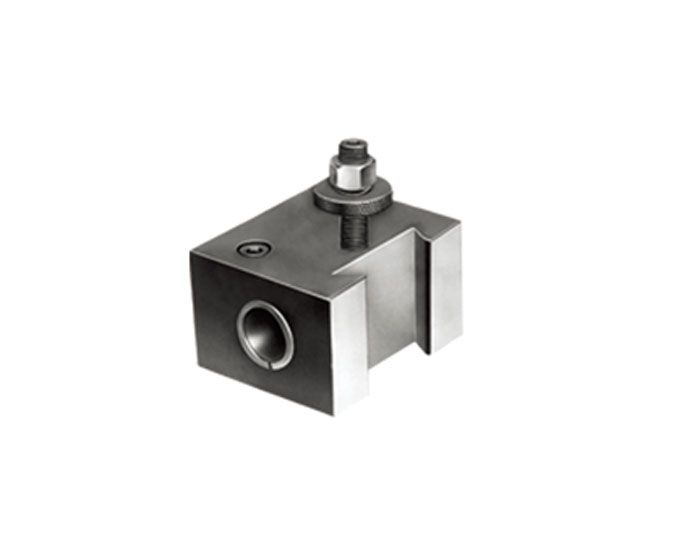

GD-0059 HEAVY DUTY BORING BAR HOLDER
Order No. A(in) B1(in) C(in Din Wtkg
250-104 3/4 1/1/2 5/8 3/4 0.90
250-204 7/8 1-3/4 3/4 1 1.52
250-304 1 2 3/4 1 2.16
250-404 1-1/4 2-1/2 1 1-1/4 3.47
250-141 7/8 1-3/4 3/4 1 1.35
250-241 1 2 1 1-1/4 2.12
250-341 1-1/8 2-1/4 1 1-1/4 3.05
250-441 1-3/8 2-3/4 1-1/4 1-1/2 4.35
