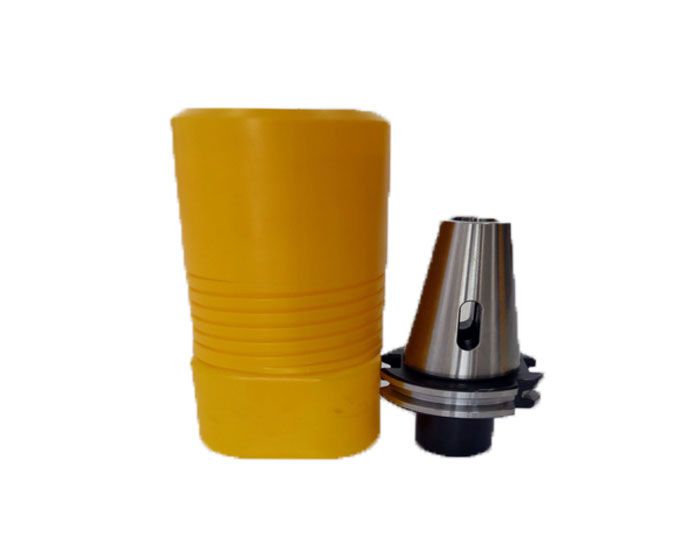

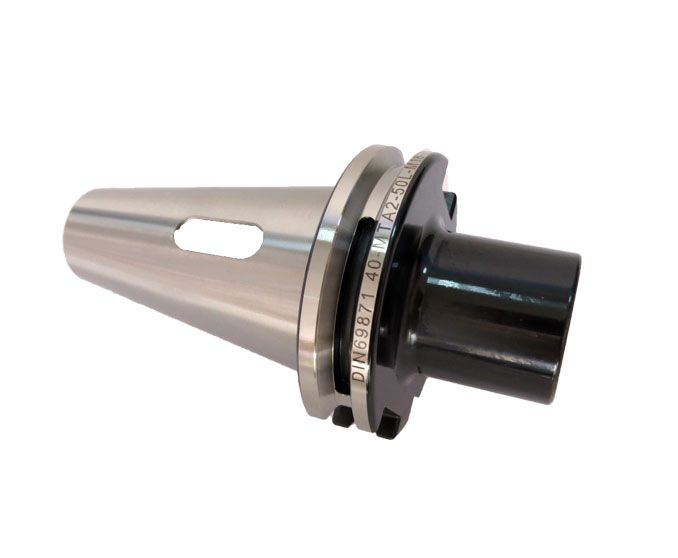

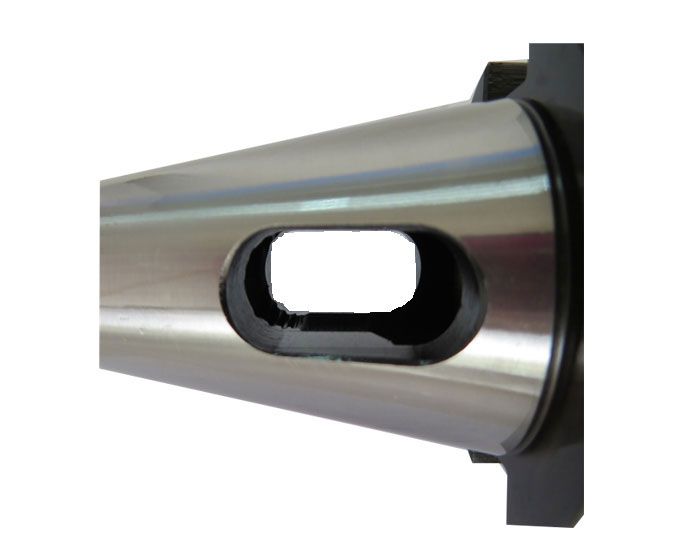

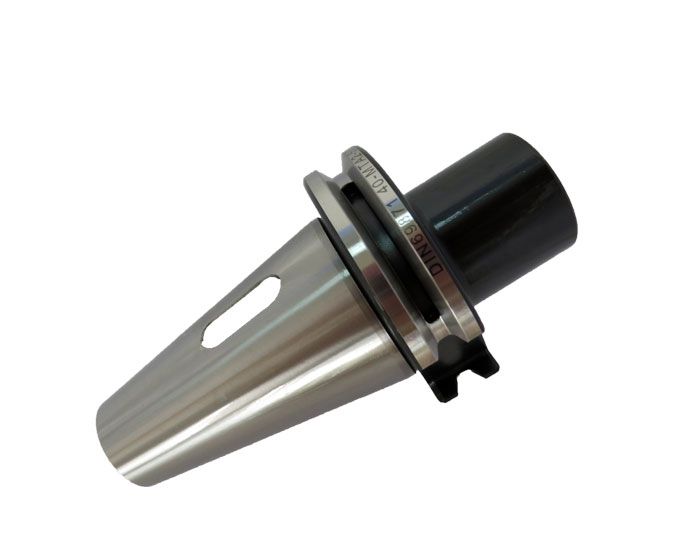

GD-0090 DIN69871 Morse taper(with drawbar)

1.High quality elastic steel material with long use time.
2.Type: A AD AD/B
3.Shank of the DIN Taper Shell Mill Arbors:DIN69871.A30, A40 A50
4.Suitable Facing Cutter:16mm-40mm
5.The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
6.Holder hardness:48-55HRC
7.Suitable Pull Stub& Facing Cutter is also upon request.

GD-00090 MORSE TAPER (WITH DRAWBAR)
Order NO.
DIN69871.A×MS.NO.T-L1
L D D1 Figure
DIN69871.A40×MW1-45 113.40 25.00 44.45 1.00
DIN69871.A40×MW2-60 128.40 32.00 1.00
DIN69871.A40×MW3-70 138.40 40.00 3.00
DIN69871.A40×MW3-80 148.40 40.00 2.00
DIN69871.A40×MW3-100 168.40 40.00 2.00
DIN69871.A40×MW4-90 158.40 48.00 3.00
DIN69871.A40×MW4-100 168.40 48.00 2.00
DIN69871.A50×MW1-45 146.80 25.00 69.85 1.00
DIN69871.A50×MW2-45 146.80 32.00 1.00
DIN69871.A50×MW3-60 161.80 40.00 1.00
DIN69871.A50×MW3-80 181.80 40.00 1.00
DIN69871.A50×MW4-80 181.80 48.00 3.00
DIN69871.A50×MW4-90 191.80 48.00 2.00
DIN69871.A50×MW4-120 221.80 48.00 2.00
DIN69871.A50×MW5-100 201.80 61.00 3.00
DIN69871.A50×MW5-120 221.80 61.00 2.00
