CNC Tool Series

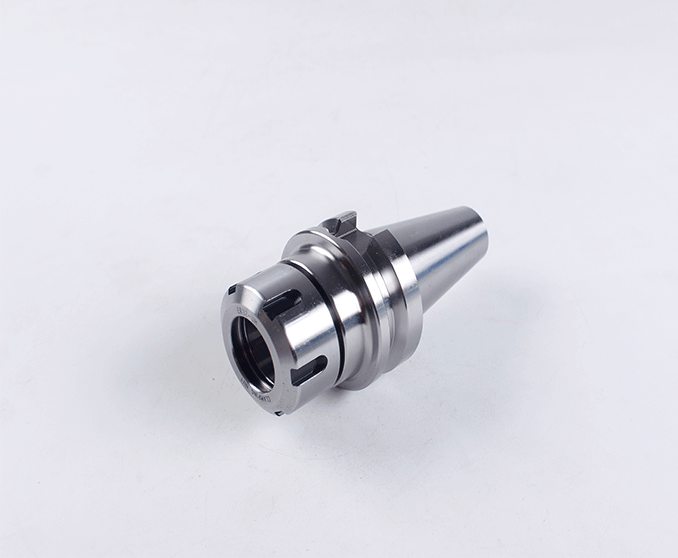

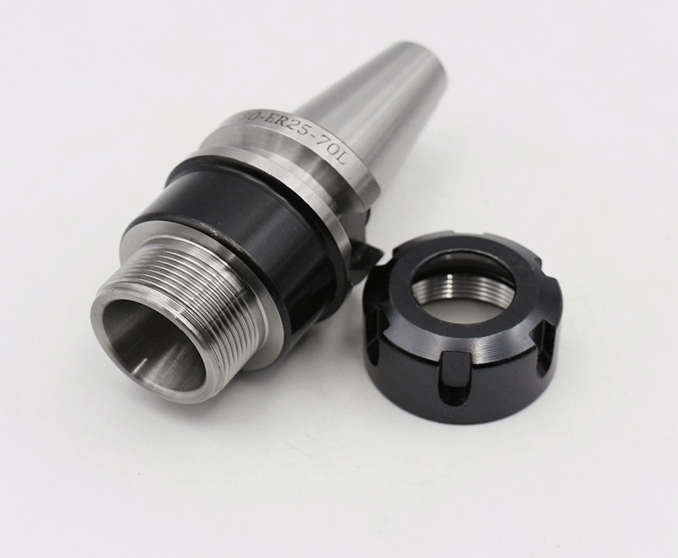

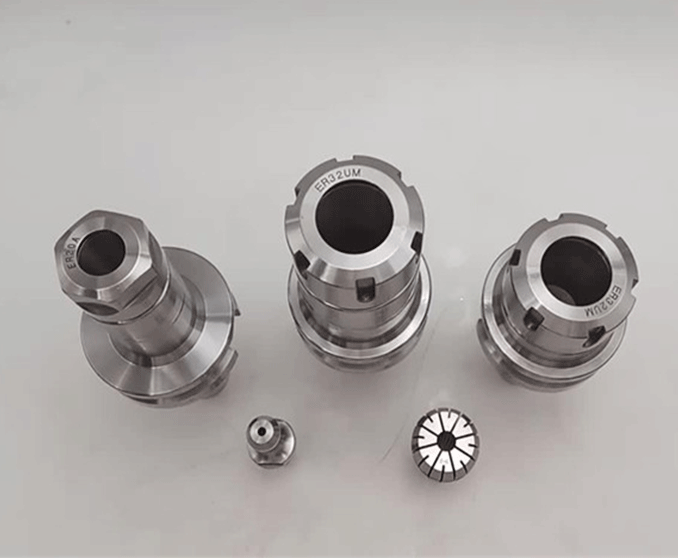

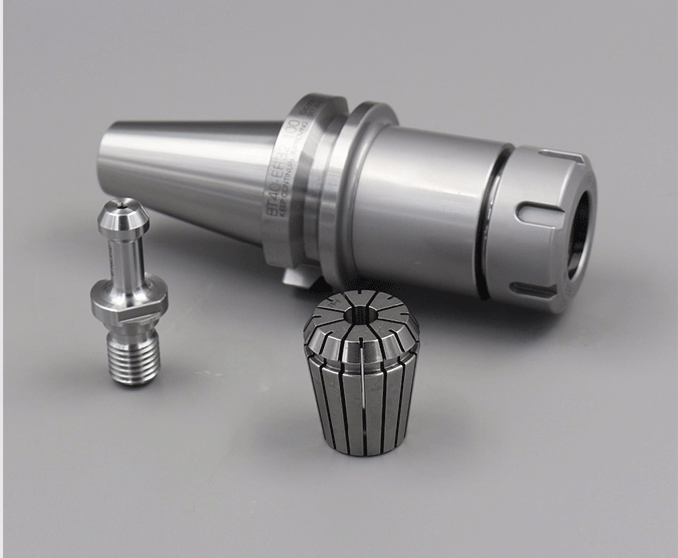

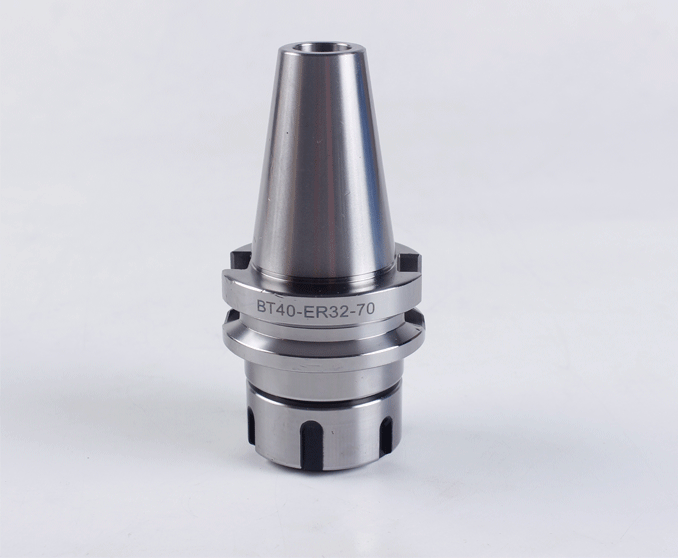

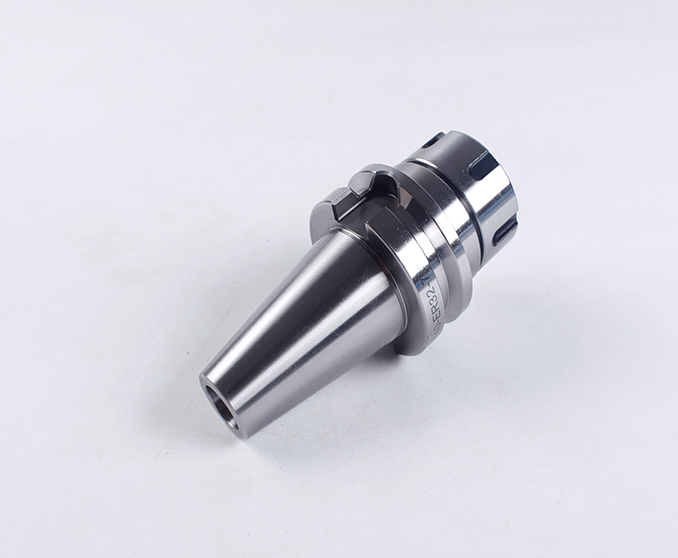

GD-0093 BT Milling Chuck Arbors
- Item No.: CO1698734
- Send Enquiry
1. High quality elastic steel material with long use time.
2. Type: A AD AD/B
3. Shank of the Arbors：BT30, BT40, BT50, DIN69871.A30, DIN69871.A40, DIN69871.A50, CT40, CT50. DIN2080
4. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand. (G6.3/12000rpm, G2.5/20000rpm)
5. Holder hardness: HRC 52-55
| GD-0093 | BT MILLING CHUCK ARBORS | |||||||
| Order NO. BT×ER-L1 |
D | D1 | Order NO. | D | D1 | |||
| BT×ER-L1 | ||||||||
| BT30×ER16-70 | 28 | 31.75 | BT45×ER32-70 | 50 | 57.15 | |||
| BT30×ER20-70 | 34 | 31.75 | BT45×ER32-100 | 50 | 57.15 | |||
| BT30×ER25-70 | 42 | 31.75 | BT45×ER32-120 | 50 | 57.15 | |||
| BT30×ER32-70 | 50 | 31.75 | BT45×ER40-80 | 63 | 57.15 | |||
| BT30×ER40-80 | 63 | 31.75 | BT45×ER40-100 | 63 | 57.15 | |||
| BT40×ER16-70 | 28 | 44.45 | BT45×ER40-120 | 63 | 57.15 | |||
| BT40×ER20-70 | 34 | 44.45 | BT50×ER16-70 | 28 | 69.85 | |||
| BT40×ER20-100 | 34 | 44.45 | BT50×ER16-90 | 28 | 69.85 | |||
| BT40×ER20-150 | 34 | 44.45 | BT50×ER16-135 | 28 | 69.85 | |||
| BT40×ER25-60 | 42 | 44.45 | BT50×ER20-70 | 34 | 69.85 | |||
| BT40×ER25-70 | 42 | 44.45 | BT50×ER20-90 | 34 | 69.85 | |||
| BT40×ER25-90 | 42 | 44.45 | BT50×ER20-135 | 34 | 69.85 | |||
| BT40×ER25-100 | 42 | 44.45 | BT50×ER20-150 | 34 | 69.85 | |||
| BT40×ER25-150 | 42 | 44.45 | BT50×ER20-165 | 34 | 69.85 | |||
| BT40×ER32-70 | 50 | 44.45 | BT50×ER25-70 | 42 | 69.85 | |||
| BT40×ER32-100 | 50 | 44.45 | BT50×ER25-135 | 42 | 69.85 | |||
| BT40×ER32-150 | 50 | 44.45 | BT50×ER25-165 | 42 | 69.85 | |||
| BT40×ER40-70 | 63 | 44.45 | BT50×ER32-70 | 50 | 69.85 | |||
| BT40×ER40-80 | 63 | 44.45 | BT50×ER32-80 | 50 | 69.85 | |||
| BT40×ER40-120 | 63 | 44.45 | BT50×ER32-100 | 50 | 69.85 | |||
| BT40×ER40-150 | 63 | 44.45 | BT50×ER32-102 | 50 | 69.85 | |||
| BT45×ER16-70 | 28 | 57.15 | BT50×ER40-80 | 63 | 69.85 | |||
| BT45×ER20-70 | 34 | 57.15 | BT50×ER40-100 | 63 | 69.85 | |||
