CNC Tool Series

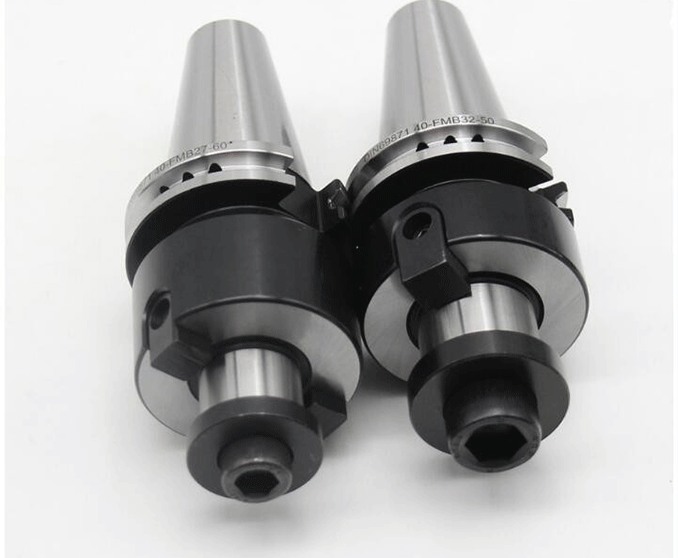

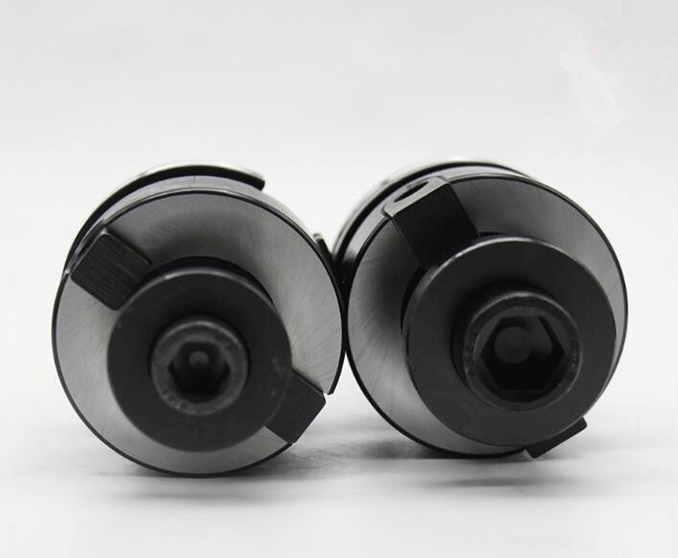

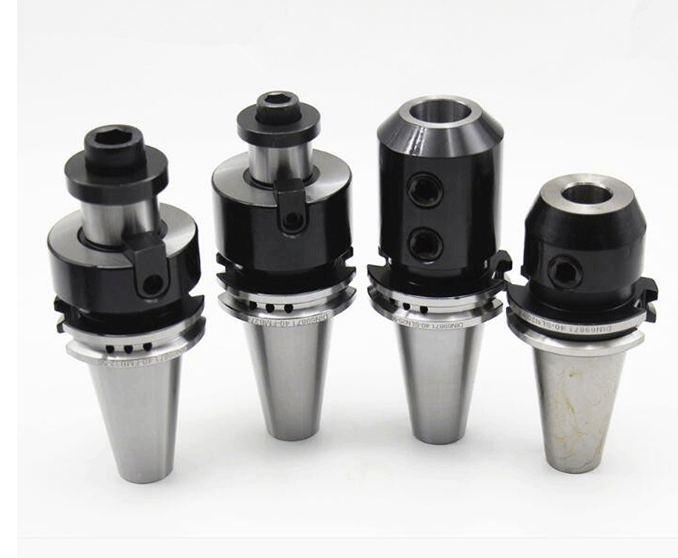

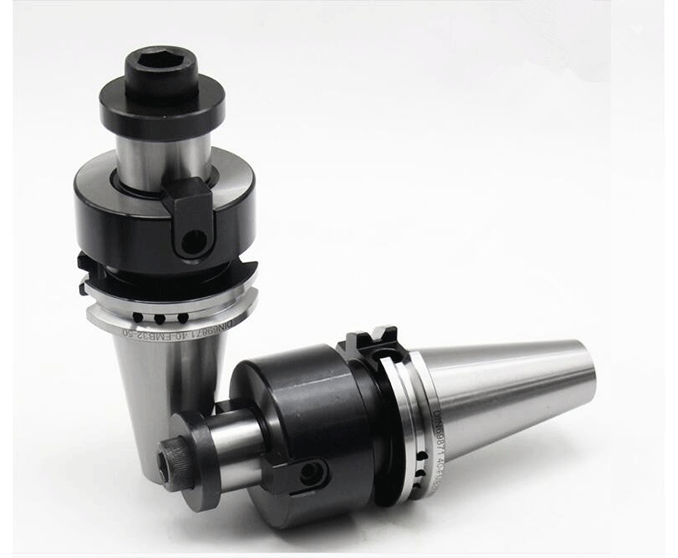

GD-0092 Combi Shell End Mill Arbors
- Item No.: CO1690734
- Send Enquiry
1. High quality elastic steel material with long use time.
2. Type: A AD AD/B
3. Shank of the Arbors：BT30, BT40, BT50, DIN69871.A30, DIN69871.A40, DIN69871.A50, CT40, CT50. DIN2080
4. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand. (G6.3/12000rpm, G2.5/20000rpm)
5. Holder hardness: HRC 52-55
| GD-0092 | COMBI SHELL END ARBORS | ||
| Order NO. | D | D1 | Wt(kg) |
| BT×d-L1 | |||
| BT30×16-55 | 32 | 31.75 | 1.00 |
| BT30×22-55 | 40 | 31.75 | 1.25 |
| BT30×27-55 | 48 | 31.75 | 1.25 |
| BT30×32-55 | 58 | 31.75 | 1.50 |
| BT30×40-60 | 70 | 31.75 | 2.30 |
| BT40×16-55 | 32 | 44.45 | 1.20 |
| BT40×16-100 | 32 | 44.45 | 1.50 |
| BT40×22-55 | 40 | 44.45 | 1.25 |
| BT40×22-100 | 40 | 44.45 | 1.85 |
| BT40×27-55 | 48 | 44.45 | 1.50 |
| BT40×27-100 | 48 | 44.45 | 2.00 |
| BT40×32-60 | 58 | 44.45 | 1.20 |
| BT40×32-100 | 58 | 44.45 | 2.30 |
| BT40×40-60 | 70 | 44.45 | 2.00 |
| BT40×40-100 | 70 | 44.45 | 3.00 |
| BT50×16-63 | 32 | 69.85 | 3.60 |
| BT50×16-100 | 32 | 69.85 | 4.00 |
| BT50×22-70 | 40 | 69.85 | 3.70 |
