Collets series
GD-00972 J45 TAPPING CHUCK
- Item No.: CO15300734
- Send Enquiry

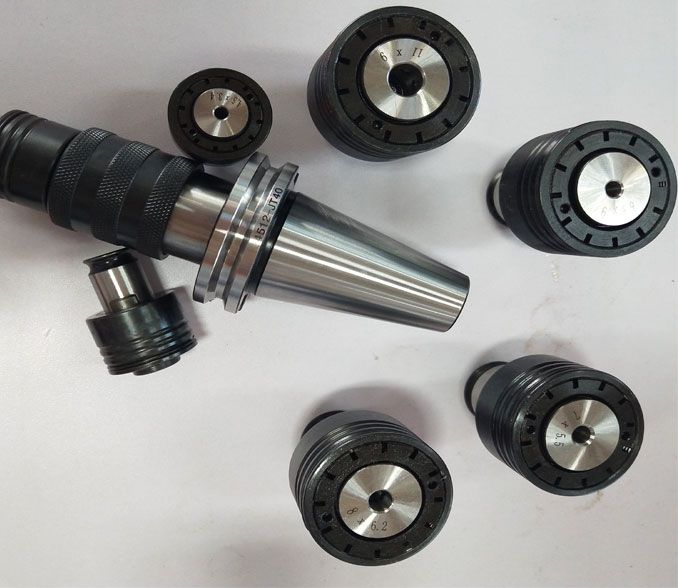

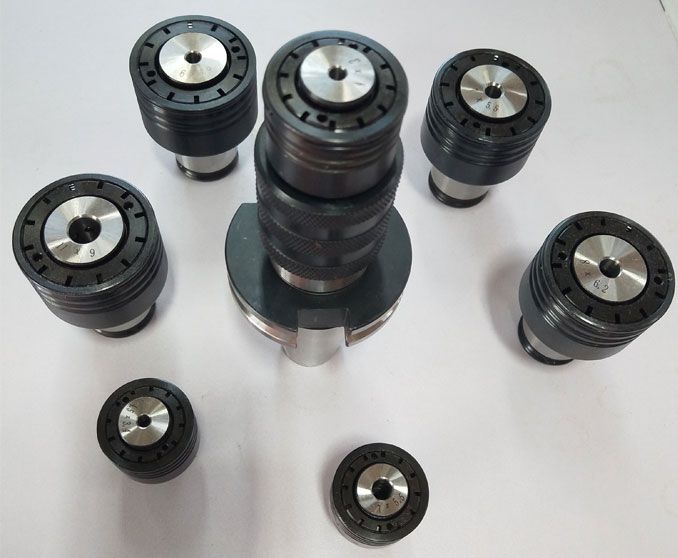

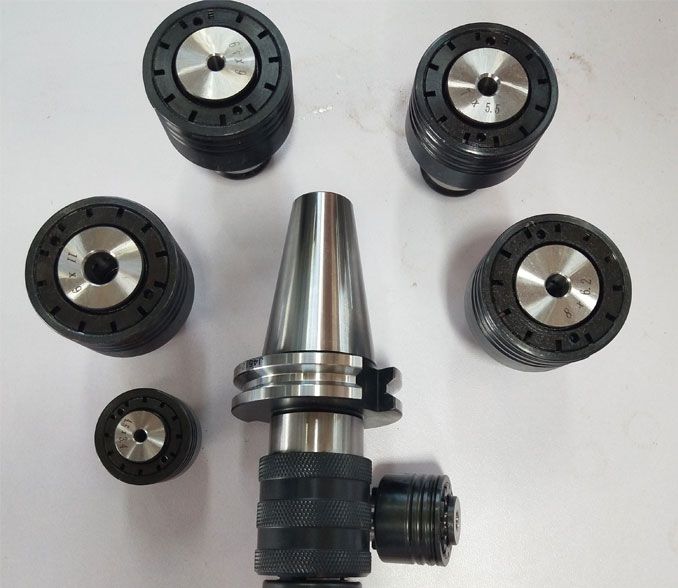

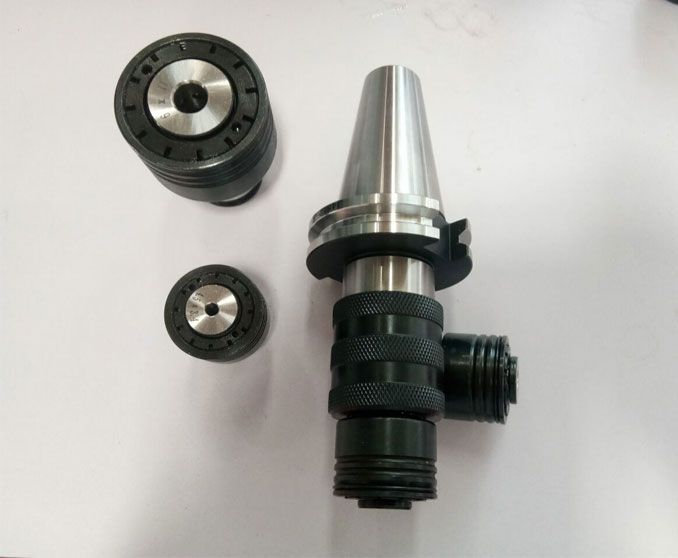

| This unit is consisted of chuck and tap collet.The chuck has installed comensating device for thread pitch.There | |||||||||

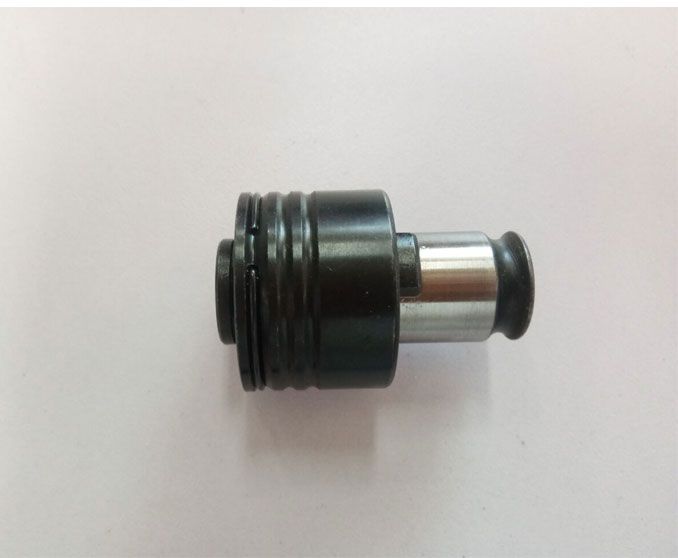

| are two different tap collets,one with overload protection and one without.When using the tap collet with overload | |||||||||
| protection,the protectiondevice can automatically release to avoid tap-break.Just adjust nuts and you can get the | |||||||||
| different release torque quickly and conveniently | |||||||||
| D(mm) | D1(mm) | d(mm) | L1(mm) | |||
| Model No. | Shank | Tapping range | ||||
| D30-12 | DIN69871.30 | M3~M12 | 36 | 31.75 | 19 | 59 |
| D40-12 | DIN69871.40 | 44.45 | ||||
| D50-12 | DIN69871.50 | 69.85 | 62 | |||
| B30-12 | BT30 | 31.75 | 59 | |||
| B40-12 | BT40 | 44.45 | 64 | |||
| B50-12 | BT50 | 69.85 | 75 | |||
| D30-20 | DIN69871.30 | M7~M20 | 53 | 31.75 | 31 | 97 |
| D40-20 | DIN69871.40 | 44.45 | ||||
| D50-20 | DIN69871.50 | 69.85 | ||||
| B30-20 | BT30 | 31.75 | ||||
| B40-20 | BT40 | 44.45 | ||||
| B50-20 | BT50 | 69.85 | ||||
| D30-36 | DIN69871.30 | M14~M36 | 78 | 31.75 | 48 | 149 |
| D40-36 | DIN69871.40 | 44.45 | ||||
| D50-36 | DIN69871.50 | 69.85 | ||||
| B30-36 | BT30 | 31.75 | ||||
| B40-36 | BT40 | 44.45 | ||||
| B50-36 | BT50 | 69.85 |
