Index Fixture Series

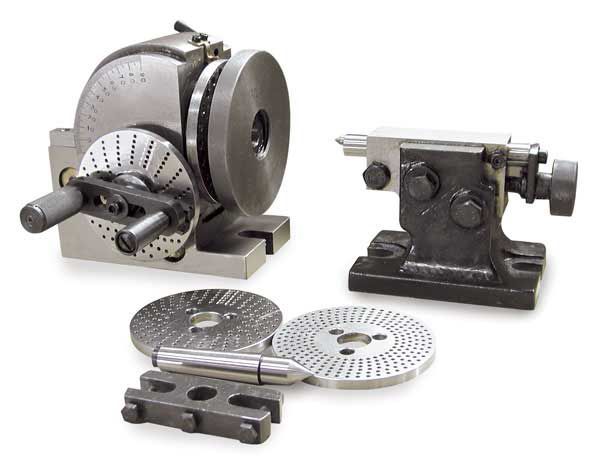

GD-00532 BS SERIES SEMI-UNIVERSAL DIVIDING HEAD

Features
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect
dividing.Complete the gear,face,flute processing and no need accessories,but the whole construction
is the same as universal type.The 24 quick-dividing holes can complete2,3,4,6,8,12,24division
indexding.Attaches 3dividing plate along with the dividing head indirect dividing in any division
indexding 2-50.51-380

SEMI-UNVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(HEAD-STOCK)								UNIT:mm/in
Model	A	S	H	h	a	b	g	Taper of center	Diameter of	N.W.(kg)
Model	A	S	H	h	a	b	g	Taper of center	spindle hole	N.W.(kg)
BS-0	193	140	173	100	166	90	16	MT2	18	23.8
BS-0	7.59	5.51	6.81	3.93	6.53	3.54	0.63	B&S NO.7	18	23.8
BS-1	242	168	220	128	206	113	16	MT3	20	35.8
BS-1	9.52	6.61	8.66	5.04	8.11	4.45	0.63	B&S NO.9	20	35.8
STANDARD ACCESSORIES DIVIDING PLATE A.B.C. Numbers of holes of dividing plate
(worm gear reductionratio 1:40)
Numbers	PlateA	15	16	17	18	19	20
of hole	PlateB	21	23	27	29	31	33
of hole	PlateC	37	39	41	43	47	49
OPTIONAL ACCESSORY
3-Jaw CHUCK
4"OR5" 3-Jaw CHUCK for BS-0
5" or 6"3-Jaw CHUCK FOR BS-1
6" or 7"8"3-Jaw CHUCK for BS-2
SEMI-UNVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(HEAD-STOCK)								UNIT:mm/in
Modle	A1	B1	H1	h	a1	b1	g1	N.W.(KG)	Mueasurement
Modle	A1	B1	H1	h	a1	b1	g1	N.W.(KG)	m³
BS-0	175	87	107	100	130	92	16	Packed with the Dividing Head
BS-0	6.89	3.42	4.21	3.93	5.12	3.62	0.63	Packed with the Dividing Head
BS-1	183	87	137	128	158	110	16	Packed with the Dividing Head
BS-1	7.2	3.42	5.39	5.04	6.22	4.33	0.63	Packed with the Dividing Head
