Collets series

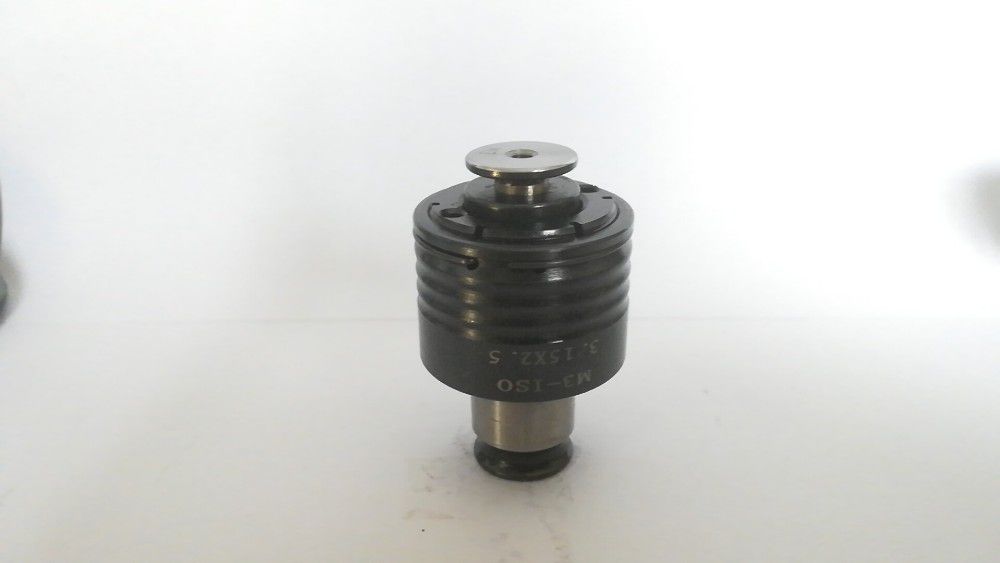

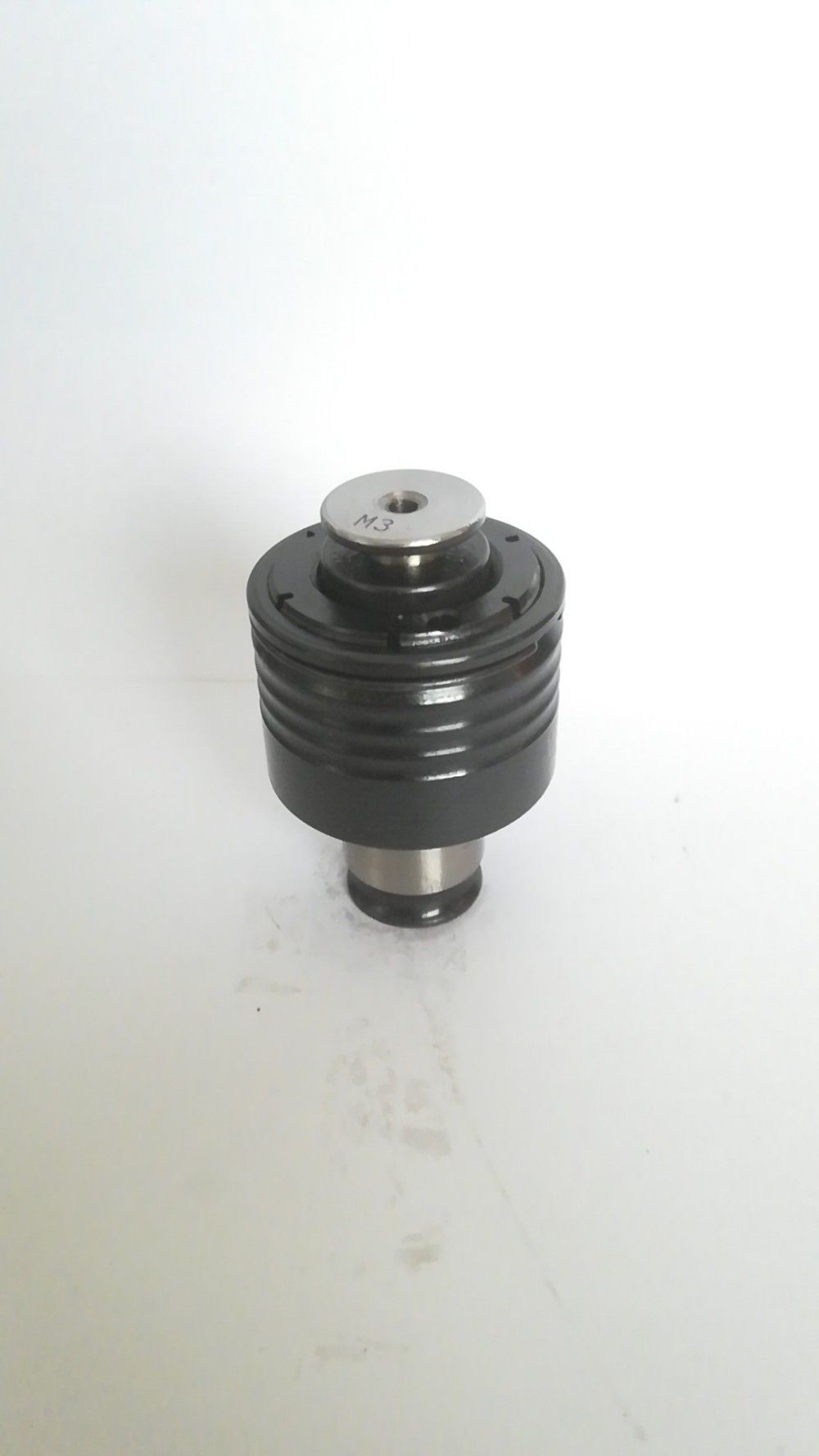

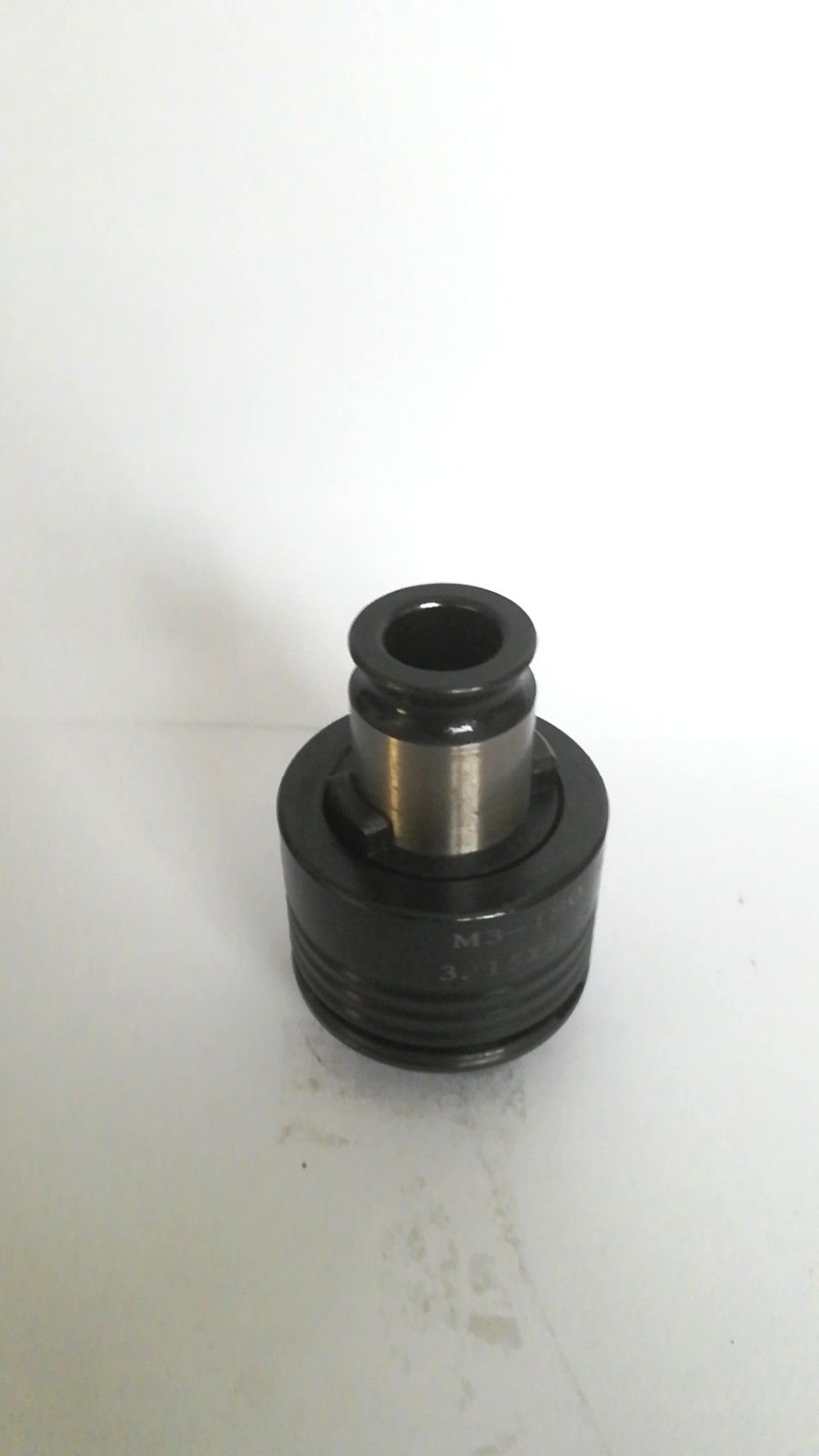

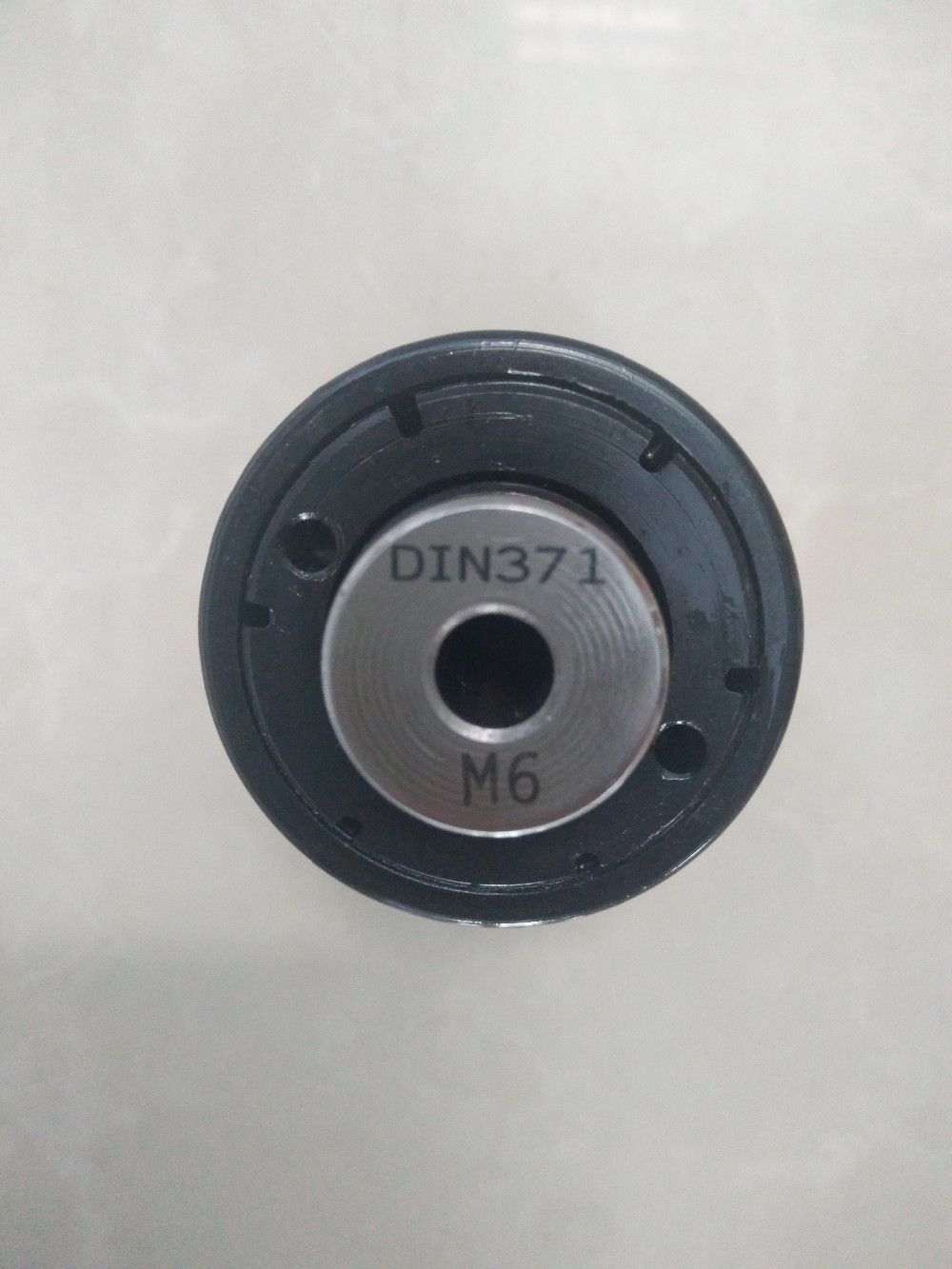

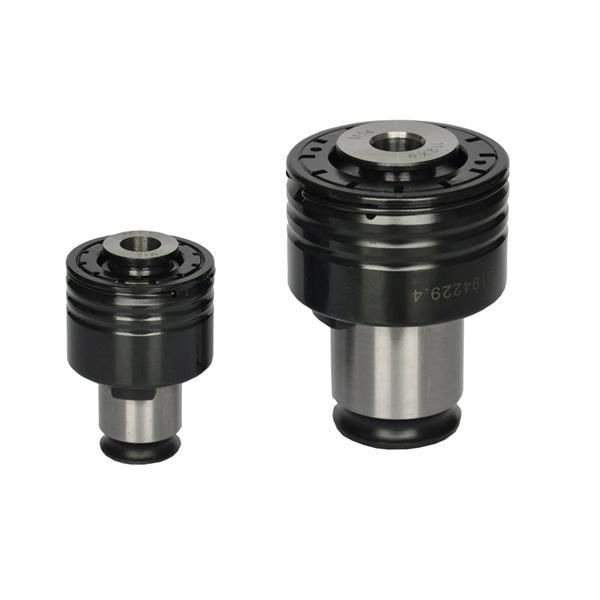

GD-00974 TCS TAPPING TORSION TAPPING COLLET

1.With overload protection device inside the chucks torque adjustable
2.Show the specification in the order,with diameter of shank in the form as 19-3.5×2.7-Ⅱ

GD-00974 TCS TAPPING TORSION TAPPING COLLET
型号Model No.	ISO D×a	DIN371 D×a	DIN376 D×a	JIS(日本)D×a	d(mm)
M2	2.8×2.25	2.8×2.1	2.5×2.1	3×2.5	19
M3(1/8)	3.15×2.5	3.5×2.7		4×3.2
M4(5/32)	4×3.15	4.5×3.4		5×4
M5(3/16)	5×4	6×4.9		5.5×4.5
M6(1/4)	6.3×5	6×4.9		6×4.5
M8(5/16)	6.3×5	8×6.2	6×4.9	6.2×5
M10(3/8)	8×6.3	10×8	7×5.5	7×5.5
M12	9×7.1		9×7	8.5×6.5		31
1/2"	9×7.1		9×7	9×7
M14(9/16)	11.2×9		11×9	10.5×8
M16	12.5×10		12×9	12.5×10
5/8"	12.5×10		12×9	12×9
M18(3/4)	14×11.2		14×11	14×11
M20	14×11.2		16×12	15×12
M22(7/8)	16×12.5		18×14.5	17×13
M24	18×14		18×14.5	19×15	48
M27(1")	20×16		20×16	20×15
M30	20×16		22×18	23×17
M33	22.4×18		25×20	25×19
M36	25×20		28×22	28×21
PT1/16-28				8×6	19
PT1/8-28				8×6	19
PT1/4-19				11×9	31
PT3/8-19				14×11
PT1/2-14				18×14
PT3/4-14				23×17	48
