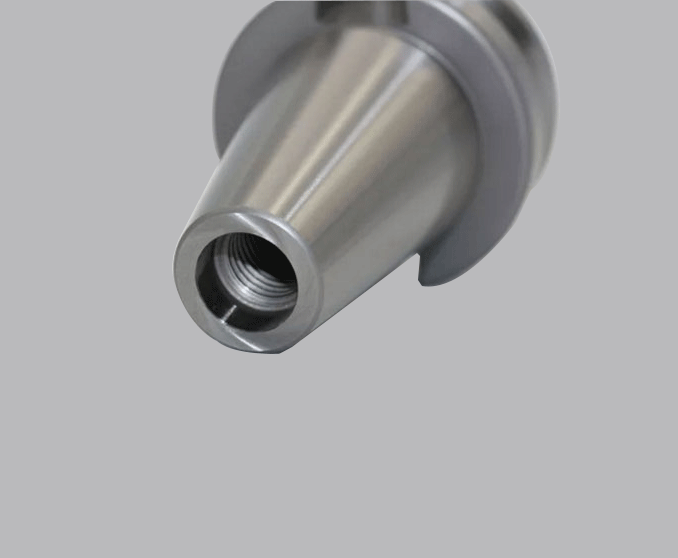

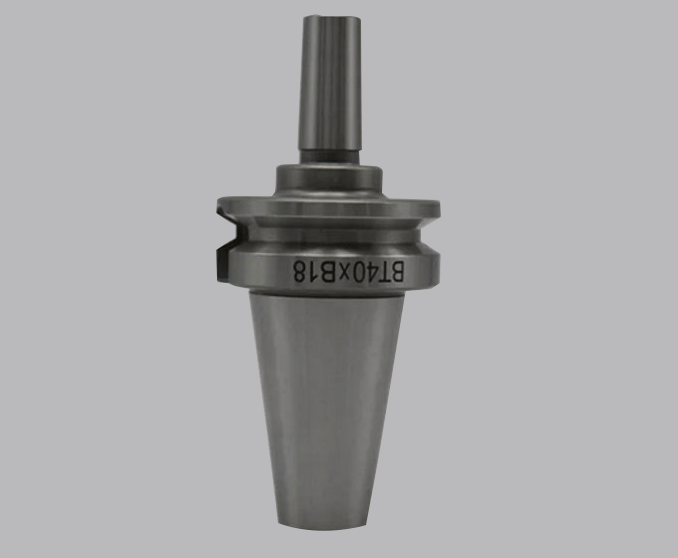

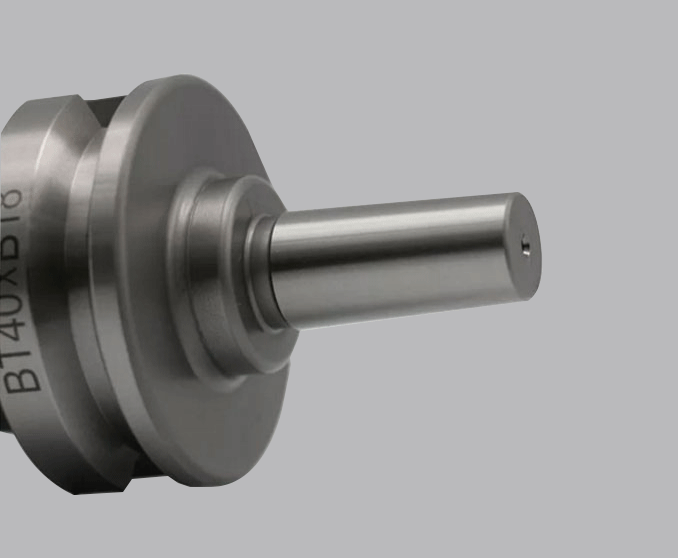

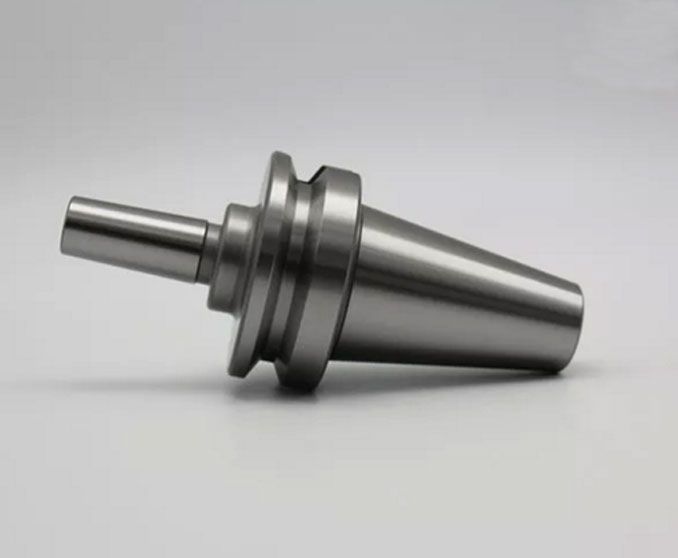

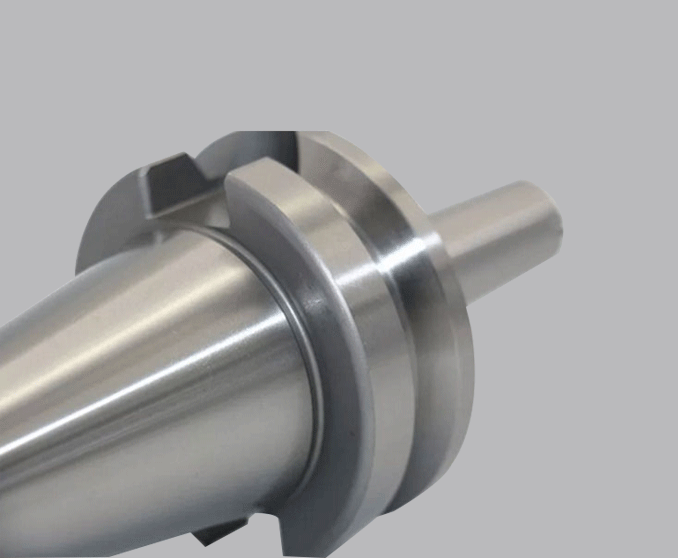

GD-0081 DIN Drill chuck arbors
- Item No.: CO16915734
- Send Enquiry
1.Products name： DIN Drill chuck arbors
2.Material: 40Cr
3.Hardness: HRC48-52
4.Accuracy: 0.005mm
5.Package: Plastic box
6.Type: DIN69871.A40 DIN69871.A50
7.Balanced:G2.5/20000rpm
8.Standard form: AD AD/B
9.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm.the precise precision is G2.5/20000rpm.
| GD-0081 | DRILL CHUCK ARBORS | ||||
| Order No. DIN69871.A-NO.S-L1 | L2 | L | D | D1 | Drawbar thread |
| DIN69871.A40-J0-32 | 11.112 | 111.5 | 6.35 | 44.45 | M16 |
| DIN69871.A40-J1-32 | 16.669 | 117 | 9.754 | 44.45 | M16 |
| DIN69871.A40-J2-32 | 22.225 | 122.6 | 14.199 | 44.45 | M16 |
| DIN69871.A40-J2S-32 | 19.05 | 119.5 | 13.940 | 44.45 | M16 |
| DIN69871.A40-J3-32 | 30.956 | 131.4 | 20.599 | 44.45 | M16 |
| DIN69871.A40-J4-32 | 42.069 | 142.5 | 28.550 | 44.45 | M16 |
| DIN69871.A40-J5-32 | 47.625 | 148 | 35.890 | 44.45 | M16 |
| DIN69871.A40-J6-33 | 25.4 | 125.8 | 17.170 | 44.45 | M16 |
| DIN69871.A40-J33-32 | 25.4 | 125.8 | 15.850 | 44.45 | M16 |
| DIN69871.A40-B6-32 | 10 | 110.4 | 6.35 | 44.45 | M16 |
| DIN69871.A40-B10-32 | 14.5 | 114.9 | 10.094 | 44.45 | M16 |
| DIN69871.A40-B10-45 | 14.5 | 127.9 | 10.094 | 44.45 | M16 |
| DIN69871.A40-B12-32 | 18.5 | 118.9 | 12.065 | 44.45 | M16 |
| DIN69871.A40-B16-32 | 24 | 124.4 | 15.733 | 44.45 | M16 |
| DIN69871.A40-B16-45 | 24 | 137.4 | 15.733 | 44.45 | M16 |
| DIN69871.A40-B18-32 | 32 | 132.4 | 17.780 | 44.45 | M16 |
| DIN69871.A40-B18-45 | 32 | 145.4 | 17.780 | 44.45 | M16 |
| DIN69871.A40-B22-32 | 40.5 | 140.9 | 21.793 | 44.45 | M16 |
| DIN69871.A40-B24-32 | 50.5 | 150.9 | 23.825 | 44.45 | M16 |
| DIN69871.A50-B16-45 | 24 | 170.75 | 15.733 | 69.85 | M24 |
| DIN69871.A50-J3-45 | 30.965 | 177.7 | 20.599 | 69.85 | M24 |
| DIN69871.A50-J6-45 | 25.4 | 172.1 | 17.170 | 69.85 | M24 |
| DIN69871.A50-J33-45 | 25.4 | 172.1 | 15.850 | 69.85 | M24 |
| DIN69871.A50-B16-45 | 24 | 170.8 | 15.733 | 69.85 | M24 |
| DIN69871.A50-B18-45 | 32 | 178.8 | 17.780 | 69.85 | M24 |
| DIN69871.A50-B22-60 | 40.5 | 202.3 | 21.793 | 69.85 | M24 |
| DIN69871.A50-B24-60 | 50.5 | 212.3 | 23.825 | 69.85 | M24 |
| According to needs to be possible to provide the balanced hilt.the standard precision is G6.3/12000rpm,the precise precision is G2.5/20000rpm | |||||
