Collets series

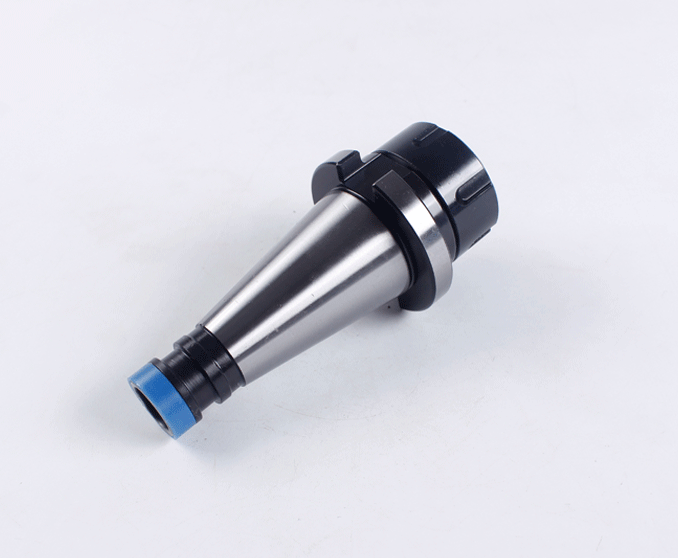

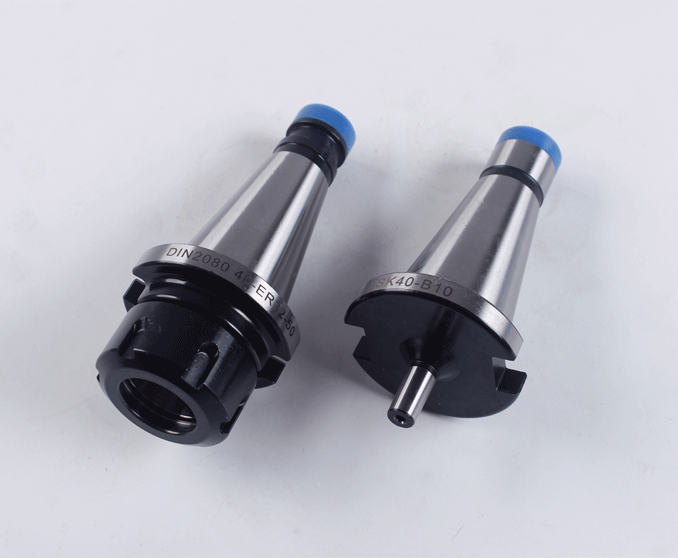

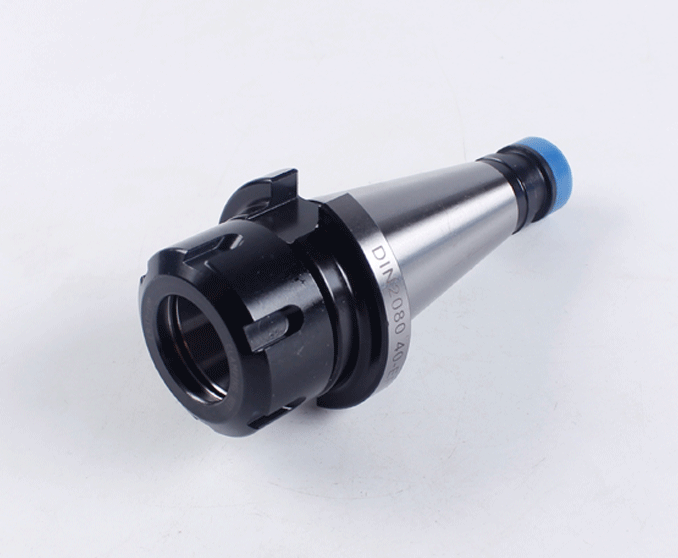

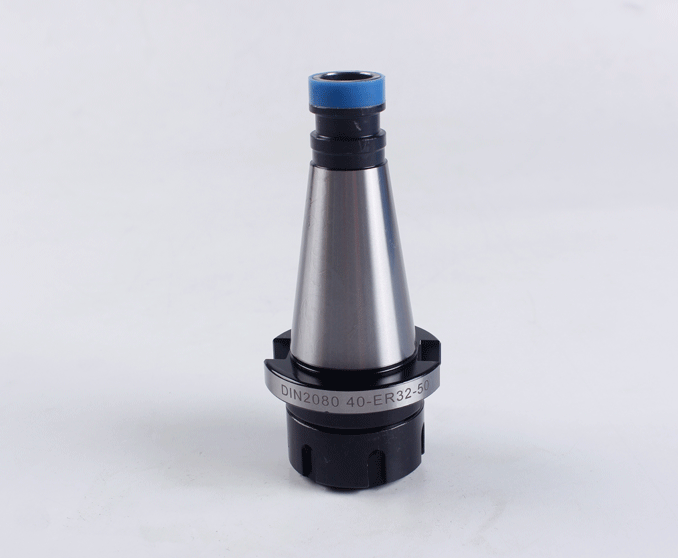

GD-0020 7:24 taper collet chuck

Item No.: CO153444734
Send Enquiry

1.Products name：7:24 Taper collet chuck

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Standard: DIN2080.30 DIN2080.40 DIN2080.50

7.Mini order quantity:10pcs

8.Package:Plastic box

9.Brand:GD-TOOLS

GD-0020	7:24 TAPER COLLET CHUCK
Order No.		7:24 NO	d	D	L1
30×ER11-50		30	1-7	19	50
30×ER16-63		30	1-10	28	63
30×ER20-63		30	1-13	34	63
30×ER25-63		30	1-16	42	63
30×ER32-63		30	2-20	50	63
30×ER40-75		30	3-26	63	75
40×ER16-63		40	1-10	28	63
40×ER20-60		40	1-13	34	60
40×ER25-60		40	1-16	42	60
40×ER32-70		40	2-20	50	70
40×ER40-60		40	3-26	63	60
40×ER50-100		40	6-34	78	100
50×ER16-63		50	1-10	28	63
50×ER20-60		50	1-13	34	60
50×ER25-60		50	1-16	42	60
50×ER32-70		50	2-20	50	70
50×ER40-70		50	3-26	63	70
50×ER50-90		50	6-34	78	90
