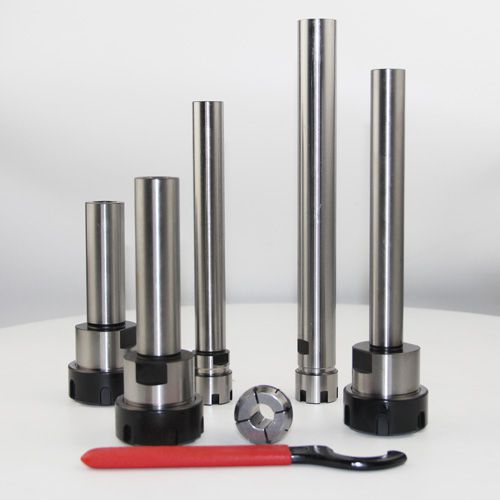

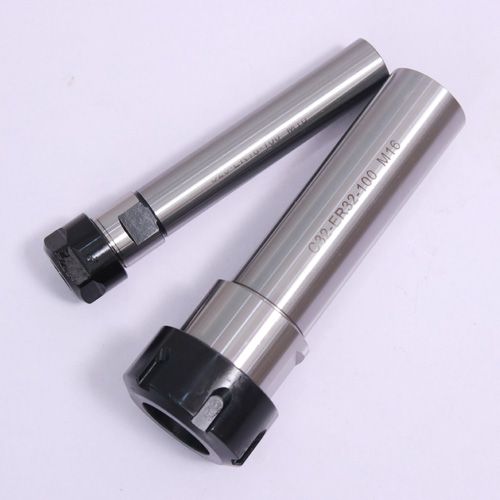

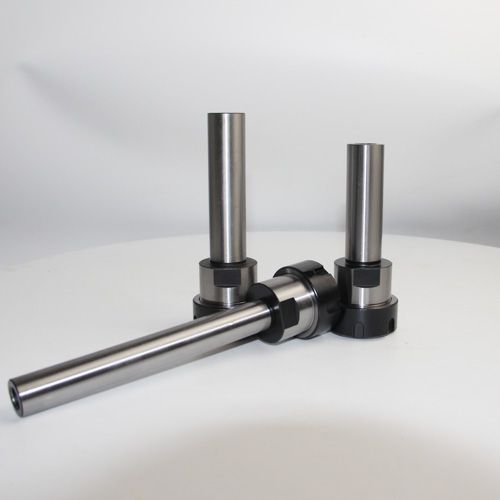

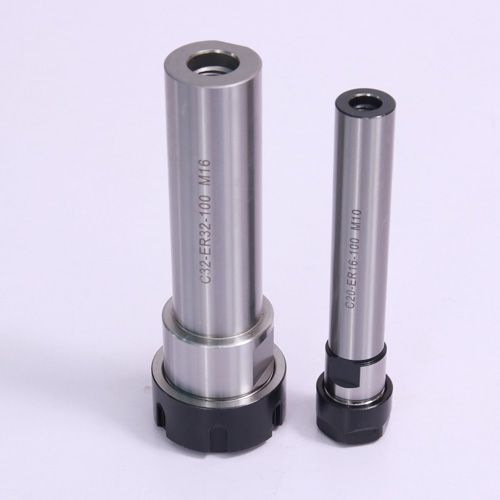

GD-0019 Straight shank collet chuck with standard nut

1.Products name:Straight shank collet chuck with standard nut

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Type: C12 C16 C20 C25 C32 C40

7.Mini order quantity:10pcs

8.Package:Plastic box

9.Brand:GD-TOOLS

GD-0019 STRAIGGD SHANK COLLET CHUCK WITH STANDARD NUT
Order No. d D D1 L L1
ER11-12×100-45 1-7 12 19 100 45
ER11-16×60-40 1-7 16 19 60 40
ER11-16×100-21 1-7 16 19 100 21
ER16-12×100-35 1-10 12 28 100 35
ER16-16×100-50 1-10 16 28 100 50
ER16-16×50-50 1-10 16 28 150 50
ER16-20×100-50 1-10 20 28 100 50
ER16-20×150-50 1-10 20 28 150 50
ER16-25×150-27 1-10 25 28 100 27
ER16-25×150-27 1-10 25 28 150 27
ER20-20×80-50 1-13 20 34 80 50
ER20-20×100-50 1-13 20 34 100 50
ER20-20×150-36 1-13 20 34 150 36
ER20-25×50-50 1-13 25 34 50 50
ER20-25×100-45 1-13 25 34 100 45
ER25-20×150-45 1-13 25 34 150 45
ER25-20×100-50 1-16 20 42 100 50
ER25-20×150-50 1-16 20 42 150 50
ER25-25×80-50 1-16 25 42 80 50
ER25-25×100-50 1-16 25 42 100 50
ER25-25×150-36 1-16 25 42 150 36
ER25-32×60-45 1-16 32 42 60 45
ER25-32×100-45 1-16 32 42 100 45
ER32-25×80-55 2-20 25 50 80 55
ER32-25×100-55 2-20 25 50 100 55
ER32-32×55-45 2-20 32 50 55 45
ER32-32×100-55 2-20 32 50 100 55
ER32-40×75-50 2-20 40 50 75 50
ER32-40×100-50 2-20 40 50 100 50
ER40-32×80-60 3-26 32 63 80 60
ER40-40×100-60 3-26 40 63 100 60
