Drill Chuck series

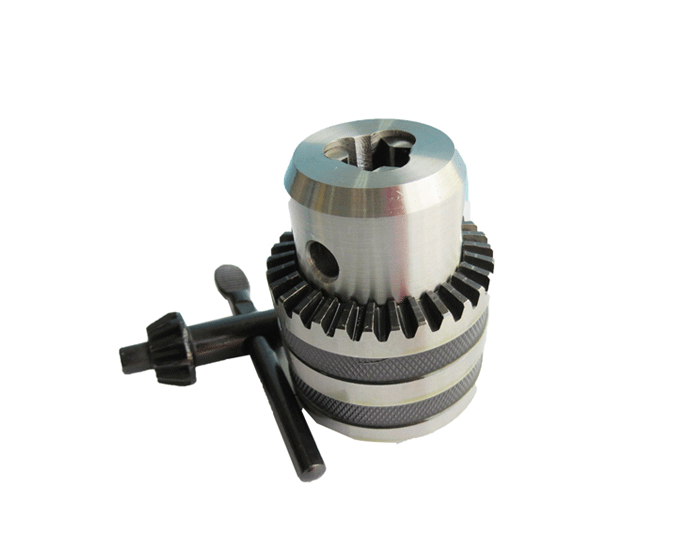

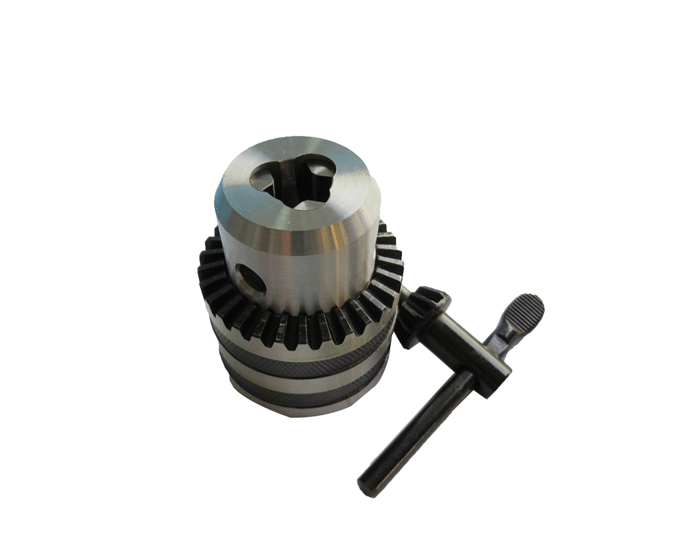

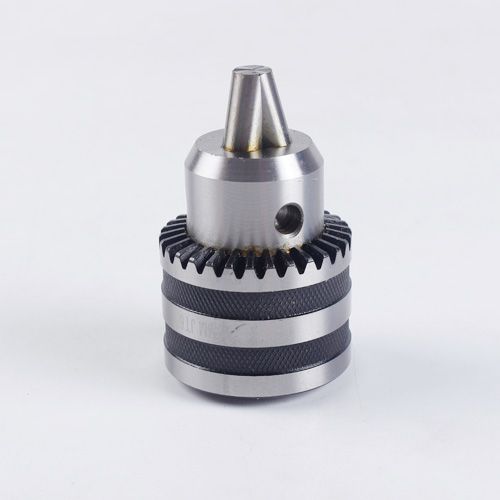

GD-0023 KEY TYPE DRILL CHUCK

Item No.: CO153411734
Send Enquiry

1.Products name：Key type drill chuck

2.Material: 45# steel

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

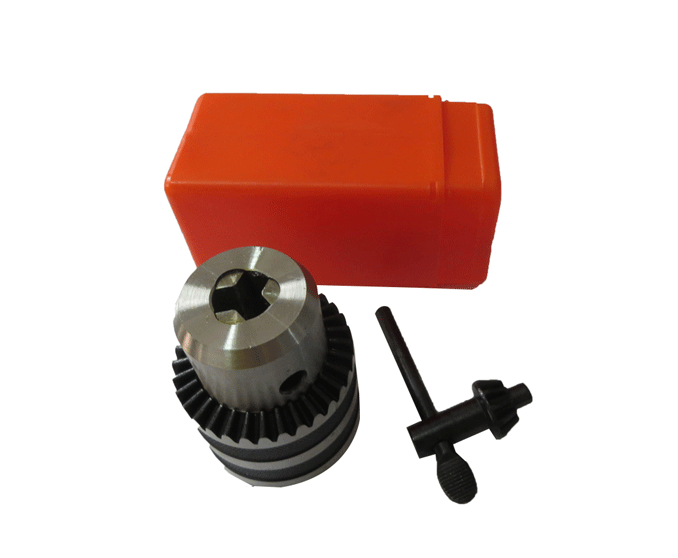

5.Package: Plastic box

6.Suitable for medium、heavy duty drilling use.

7.For milling machine、lathe、drilling machine、wood working machine.

8.High speed drilling can be performed for possessing high griping power.

GD-0023		KEY TYPE DRILL CHUCK
Order No.	Capacity		Mount	D	L	Wt.(kg)
Order No.	Capacity		Mount	mm	mm	Wt.(kg)
J2110	1-10	1/32-3/8	B12	42.5	70	0.34
J2113	1-13	1/32-1/2	B16	53	8	0.63
J2513	1.5-13	1/16-1/2	B16	44	78	0.45
J2516	3-16	1/8-5/8	B16	53	86	0.63
J2516A	3-16	1/8-5/8	B18	53	86	0.63
J2116	3-16	1/32-5/8	B18	57	98	1.00
J2116A	1-16	1/32-5/8	B16	57	93	0.82
J2120	5-20	1/32-5/8	B22	65	110	1.40
J2210	1-10	3/16-3/4	JT2	42.5	70	0.34
J2213	1-13	1/32-3/8	JT6	53	86	0.63
J2213A	1-13	1/32-1/2	JT33	53	86	0.63
J2613	1.5-13	1/32-1/2	JT33	44	78	0.45
J2616	3-16	1/16-1/2	JT3	53	86	0.63
J2616A	3-16	1/8-5/8	JT6	53	86	0.63
J2616B	3-16	1/8-5/8	JT33	53	93	0.65
J2216	1-16	1/32-5/8	JT3	57	98	1.00
J2220	5-20	3/16-3/4	JT3	65	110	1.40
