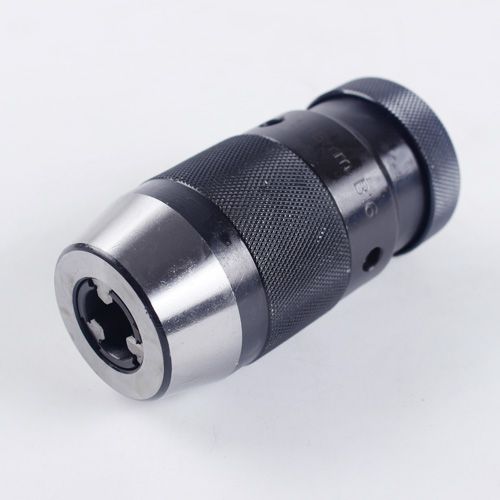

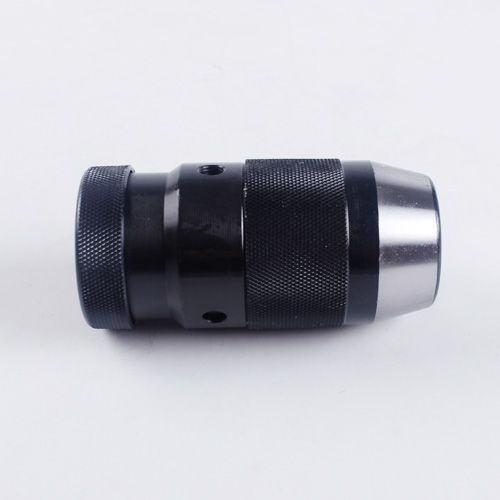

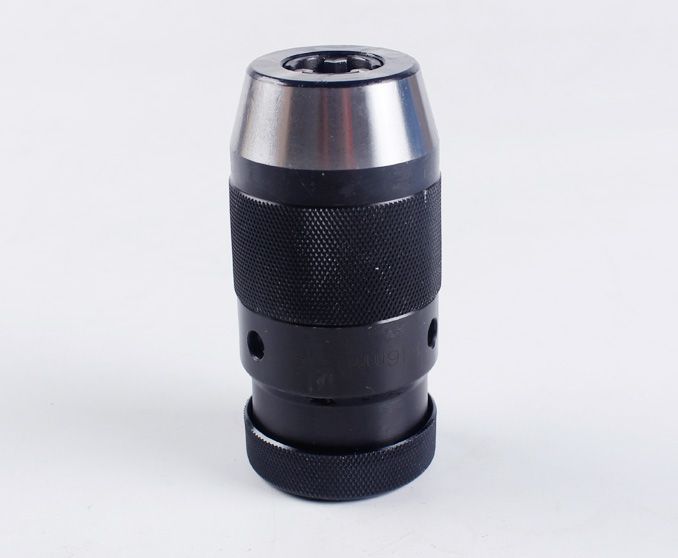

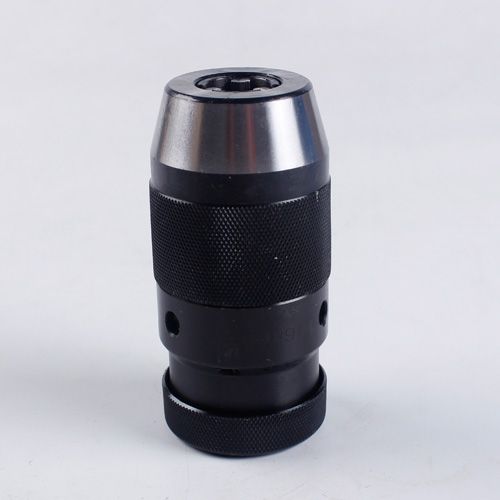

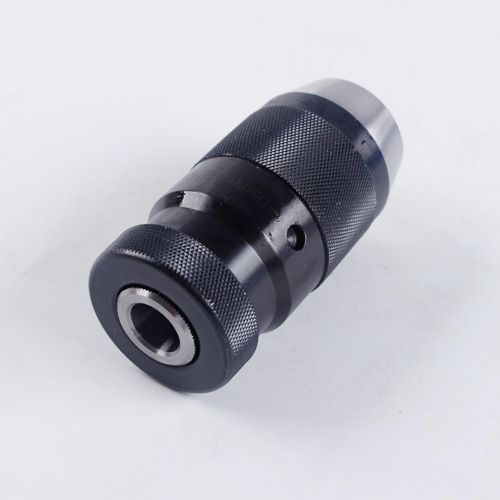

GD-0024 Keyless drill chuck with taper mounted

GD-0024 Keyless drill chuck with taper mounted

Item No.: CO15341734
Send Enquiry

1.Products name：Keyless drill chuck with taper mounted

2.Material: 45# steel

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Grade P & D is used in lathe、milling machine、boring machine、drilling bench etc.

7.Grade M is used in high precision machine-tool,such as machining center and digital control machine.

GD-0024		KEYLESS DRILL CHUCK WITH TAPER MOUNTED

Order No.	Capacity	Mount	D	L	Rount mm
			mm	mm	P	D	M
J0106	0.5-6mm	B10	34	72	0.12	0.16
J0206	1/64-1/4	JT1
J0108	0.5-8mm	B12	42	82
J0208	1/64-5/16	JT2					0.06
J0110	1-10mm	B12	42	82
J0210	1/32-3/8	JT2	44	88
J0210A		JT33
J0113	1-13mm	B16	44	97
J0113A		B16	49	100
J0213	1-32-1/2	JT33
J0213A		JT6
J0116A	3-16mm	B16	54	110	0.14	0.20	0.07
J0116		B18
J0216	1/8-5/8	JT6
J0216A		JT3
J0120	5-20mm	B22	60	125	0.18	0.25
J0220	3/16-3/4	JT3
