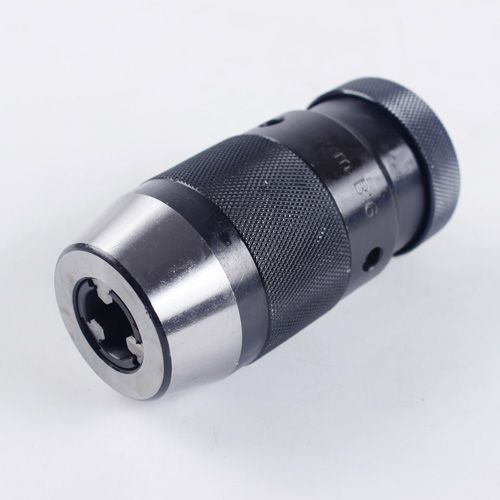

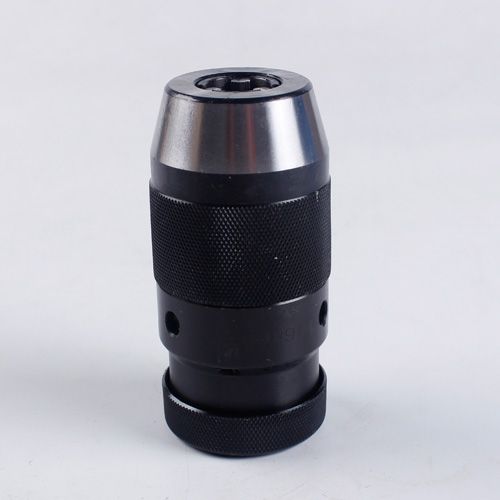

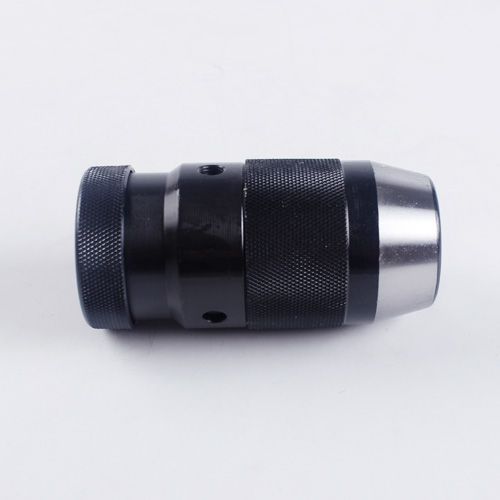

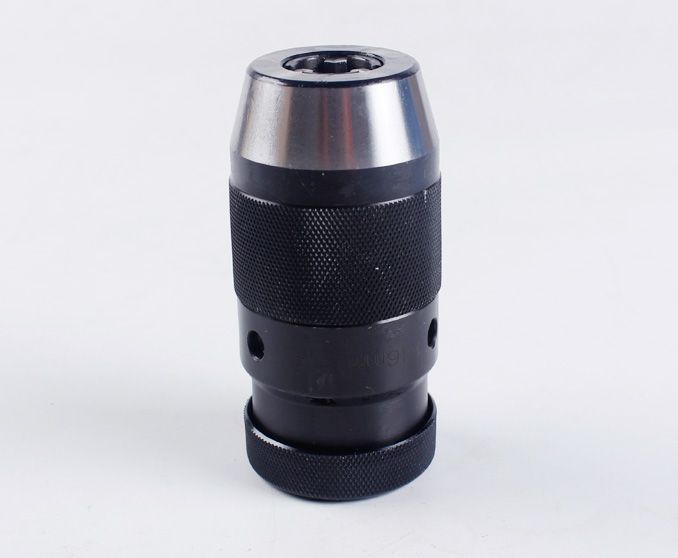

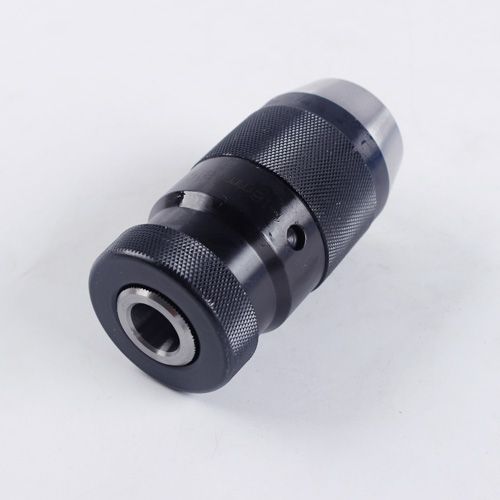

GD-0025 Keyless drill chuck with thread mounted

GD-0025 Keyless drill chuck with thread mounted

Item No.: CO153350734
Send Enquiry

1.Products name：Keyless drill chuck with thread mounted

2.Material: 45# steel

3.Hardness: HRC48-52

4.Accuracy: 0.2mm

5.Package: Plastic box

6.Used in lathe、milling machine、drilling bench、electric hand and woodworking machine etc.

GD-0025	KEYLESS DRILL CHUCK WITH THREAD MOUNTED
GD-0025	KEYLESS DRILL CHUCK WITH THREAD MOUNTED
Order NO.	Capacity	Mount	D	L	Runout
Order NO.	Capacity	Mount	mm	mm	mm
JO306	0.5-6mm	M10×1	34	64	0.20
JO306A	1/64〞-1/4〞	3/8〞-24UNF	34	64
JO308	0.5-8mm	M10×1	40	80
JO308A	1/64〞-5/16〞	3/8〞-24UNF
JO308B	0.5-8mm	M12×1.25
JO308C	1/64〞-5/16〞	1/2〞-20UNF
JO310	1-10mm	M10×1	42	86
JO310A	1/32〞-3/8〞	3/8〞-24UNF
JO310B	1-10mm	M12×1.25
JO310C	1/32〞-3/8〞	1/2〞-20UNF
JO313	1-13mm	M10×1	44	97
JO313A	1/32〞-1/2〞	3/8〞-24UNF
JO313B	1-13mm	M12×1.25
JO313C	1/32〞-1/2〞	1/2〞-20UNF
JO316	3-16mm	M12×1.25	48	107	0.24
JO316A	1/3〞-5/8〞	1/2〞-20UNF
JO316B	3-16mm	M16×1.25
JO316C	1/8〞-5/8〞	5/8〞-16UNF
