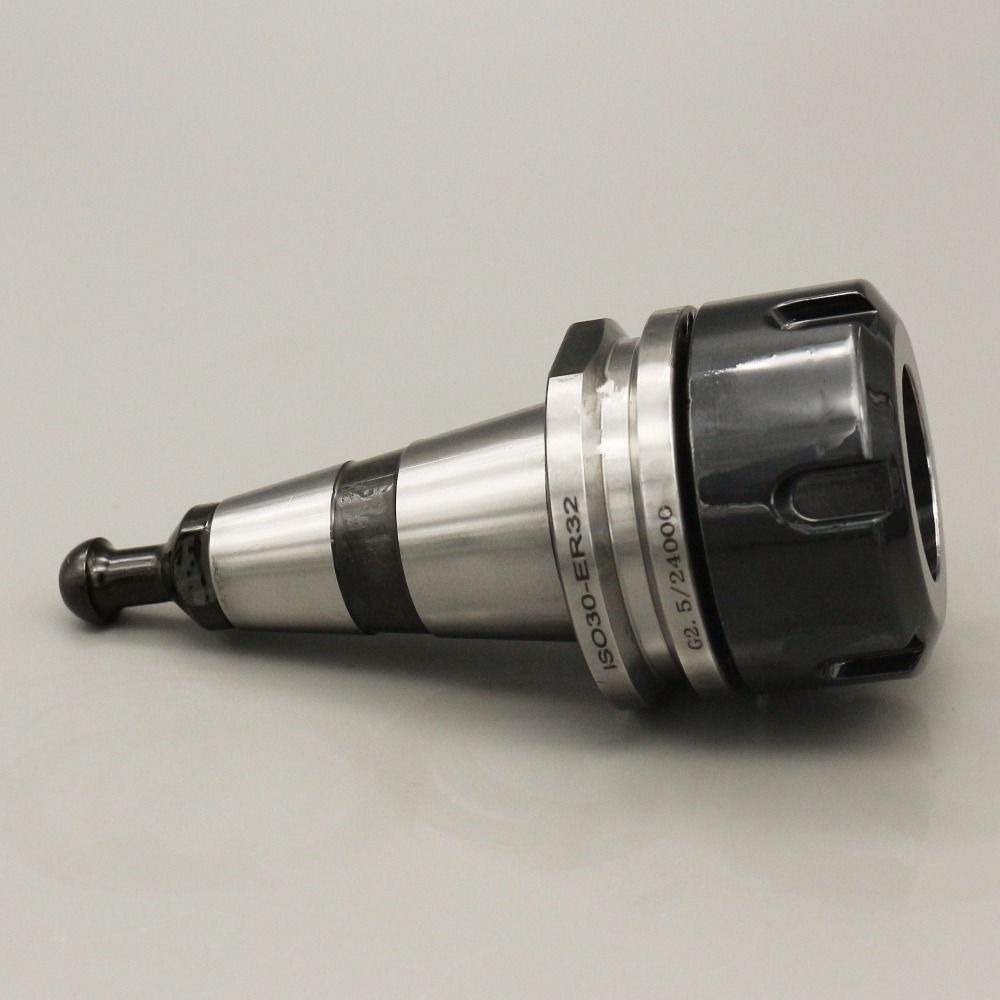

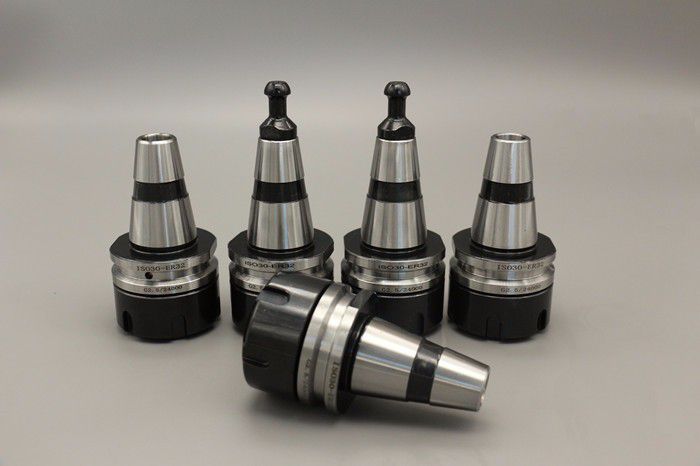

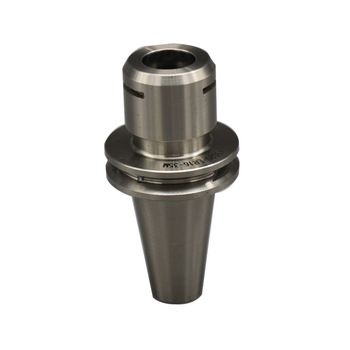

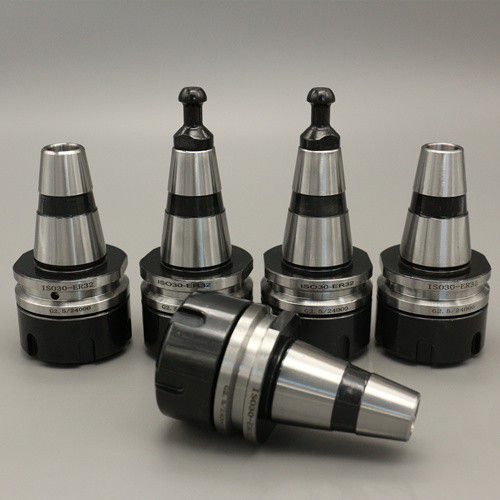

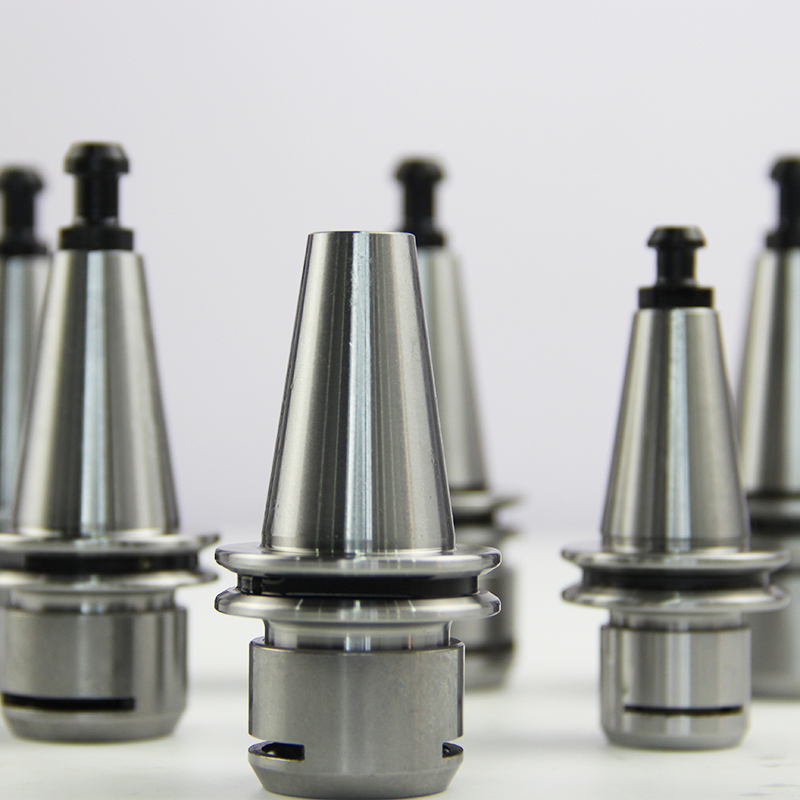

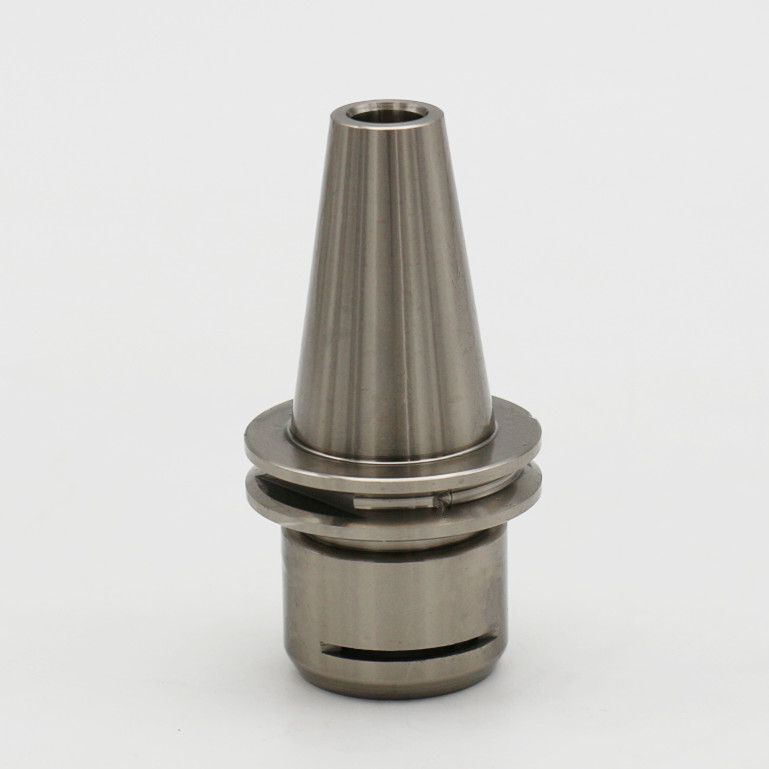

GD-00952 HIGH SPEED COLLET CHUCK WITHOUT KEYWAY

Model NO.

D

Range

D1(Nut)

L1

L2

T

Collet

Spanner

ISO10-ER11MS-25

23

1-7

16

25

5.5

-

ER11

ER11MR

ISO10-ER16MS-34

23

1-10

22

34

5.5

-

ER16

ER16MR

ISO20-ER16MS-35

33

1-10

22

35

8

M8

ER16

ER16MR

ISO20-ER20MS-35

33

1-13

28

ER20

ER20MR

ISO25-ER16MS-35

37

1-10

22

ER16

ER16MR

ISO25-ER20MS-35

37

1-13

28

ER20

ER20MR

ISO25-ER25MS-45

37

1-16

35

45

ER25

ER25MR

ISO30-ER16MS-60

50

1-10

22

60

15.9

M12

ER16

ER16MR

ISO30-ER20MS-60

50

1-13

28

ER20

ER20MR

ISO30-ER25MS-60

50

1-16

35

ER25

ER25MR
