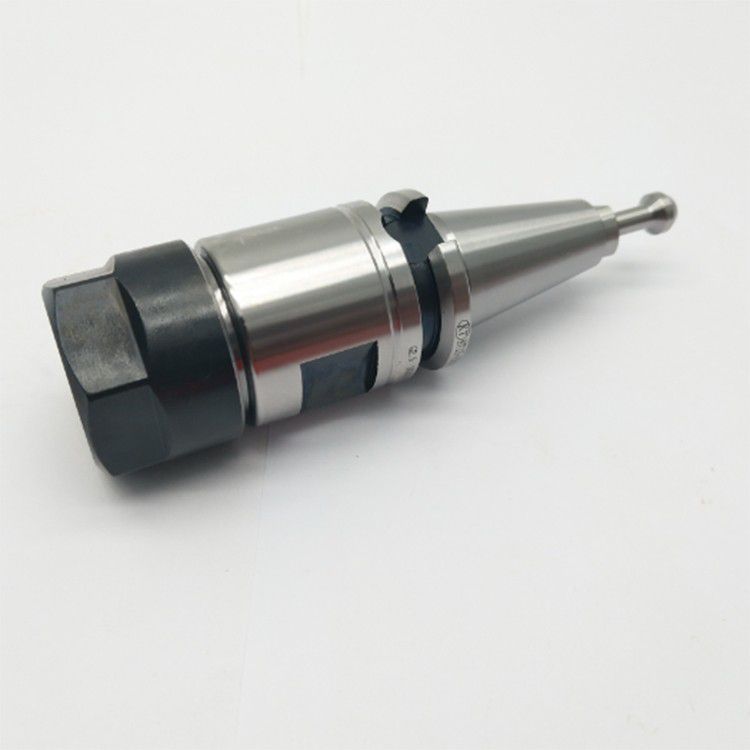

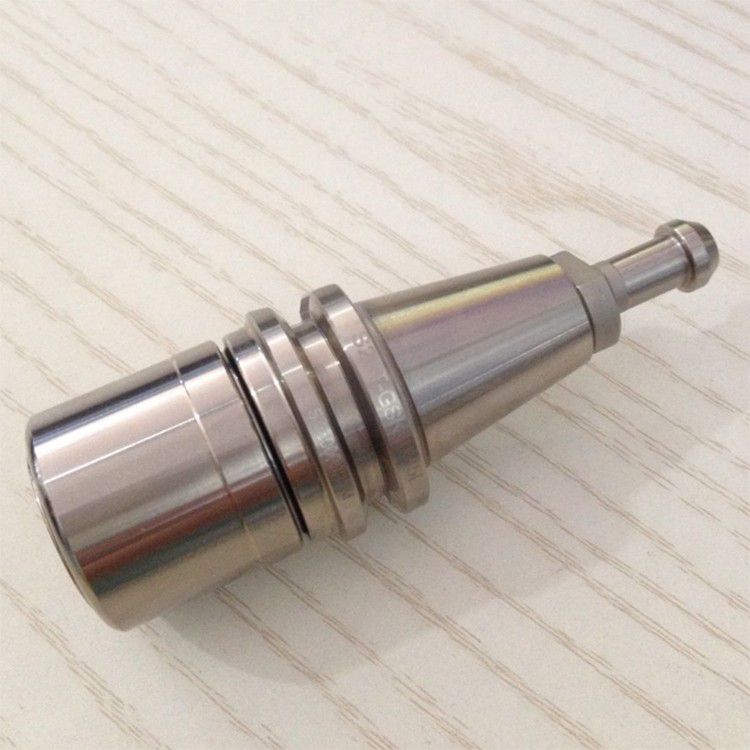

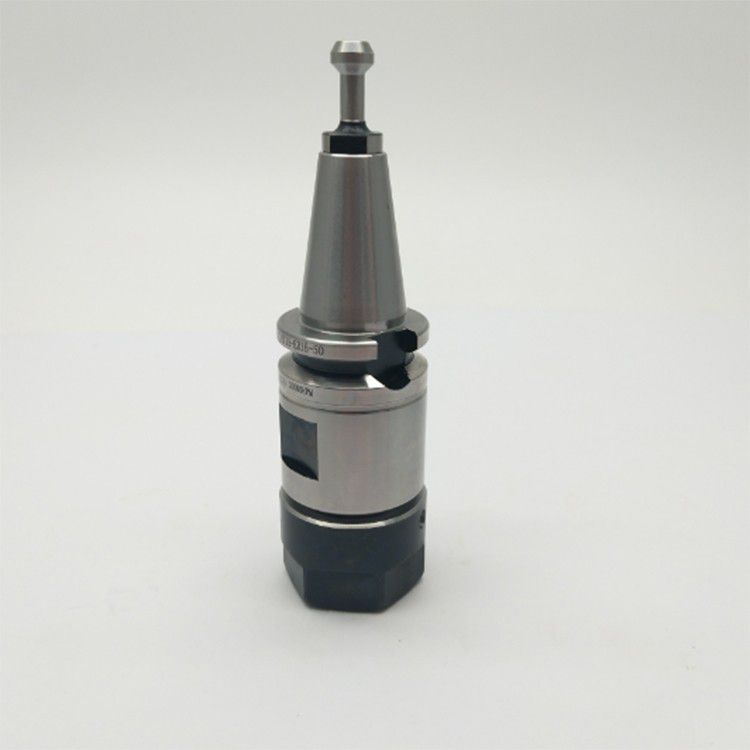

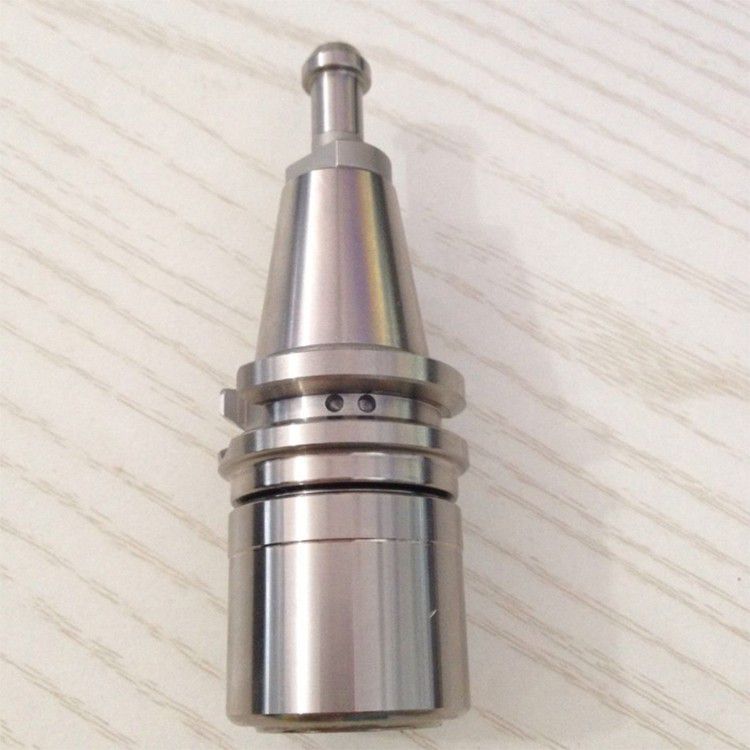

GD-00958 GSK HIGH SPEED COLLET CHUCK

GD-00958 BT/SK(DIN69871A) GSK HIGH SPEED COLLET CHUCK
型号 D L L1 L2 D1 D2 MAX COLLET KGS
Model No. (min﹣¹)
BT/SK30-GSK6-60 2~6 60 33 33 19.5 19.2 40000 CSK6 0.7
BT/SK30-GSK6-90 90 56 65 32 0.7
BT/SK30-GSK6-120 120 62 95 0.8
BT/SK30-GSK10-45 2~10 45 22 22 27.5 27.5 CSK10 0.8
BT/SK30-GSK10-60 60 35 35 0.9
BT/SK30-GSK10-75 75 50 50 1.0
BT/SK30-GSK10-90 90 65 65 1.0
BT/SK30-GSK10-120 120 95 95 1.1
BT/SK30-GSK16-60 3~16 60 37 37 40 40 30000 CSK16 1.1
BT/SK30-GSK16-75 75 52 52 1.2
BT/SK30-GSK16-90 90 67 67 1.2
BT/SK30-GSK16-120 120 97 97 1.3
BT/SK30-GSK20-60 4~20 60 37 37 48 48 CSK20 0.7
BT/SK30-GSK20-75 75 52 52 0.9
BT/SK30-GSK20-90 90 67 67 1.2
BT/SK30-GSK25-90 6~25 90 67 67 55 55 CSK25 1.5
BT/SK40-GSK6-60 2~6 60 30 30 19.5 19.5 CSK6 1.0
BT/SK40-GSK6-90 90 51 60 32 1.1
BT/SK40-GSK6-120 120 60 90 1.4
BT/SK40-GSK6-150 150 60 120 25 1.5
BT/SK40-GSK10-60 2~10 60 32 32 27.5 27.5 CSK10 1.1
BT/SK40-GSK10-75 75 45 45 1.2
BT/SK40-GSK10-90 90 48 60 40 1.2
BT/SK40-GSK10-120 120 73 90 1.4
BT/SK40-GSK10-150 150 73 118 34.5 1.6
BT/SK40-GSK10-180 180 73 148 39 1.6
BT/SK40-GSK16-60 3~16 60 32 32 40 40 25000 CSK16 1.3
BT/SK40-GSK16-75 75 43 43 1.4
BT/SK40-GSK16-90 90 58 58 1.5
BT/SK40-GSK16-120 120 88 88 1.7
BT/SK40-GSK16-150 150 118 118 1.9
BT/SK40-GSK16-180 180 148 148 2.0
BT/SK40-GSK20-60 4~20.0 60 32 32 48 48 CSK20 1.3
BT/SK40-GSK20-75 75 45 45 1.4
BT/SK40-GSK20-90 90 60 60 1.6
BT/SK40-GSK20-120 120 90 90 2.0
BT/SK40-GSK25-75 6~25 75 47 47 55 55 20000 CSK25 1.7
BT/SK40-GSK25-90 90 61 61 1.8
BT/SK40-GSK25-120 120 91 91 2.0
BT/SK50-GSK6-105 2~6 105 55 64 19.5 32 20000 CSK6 3.8
BT/SK50-GSK6-135 135 60 92 3.9
BT/SK50-GSK6-165 165 60 114 4.0
BT/SK50-GSK6-200 200 60 151 30 4.2
BT/SK50-GSK10-105 2~10 105 57 57 27.5 27.5 CSK10 4.2
BT/SK50-GSK10-135 135 70 92 32 4.4
BT/SK50-GSK10-165 165 75 114 4.6
BT/SK50-GSK10-200 200 75 151 36 4.8
BT/SK50-GSK10-225 225 75 178 40 5.0
BT/SK50-GSK16-105 3~16 105 62 62 40 CSK16 4.7
BT/SK50-GSK16-135 135 92 92 4.9
BT/SK50-GSK16-165 165 90 122 50 5.1
BT/SK50-GSK16-200 200 90 157 52 5.5
BT/SK50-GSK20-105 4~20 105 62 62 48 48 CSK20 4.3
BT/SK50-GSK20-135 135 92 92 4.6
BT/SK50-GSK20-165 165 122 122 5.0
BT/SK50-GSK20-200 200 157 157 5.4
BT/SK50-GSK25-105 6~25 105 62 62 55 55 15000 CSK25 5.2
BT/SK50-GSK25-135 135 92 92 5.4
BT/SK50-GSK25-165 165 122 122 5.6
BT/SK50-GSK25-200 200 157 157 6.0
