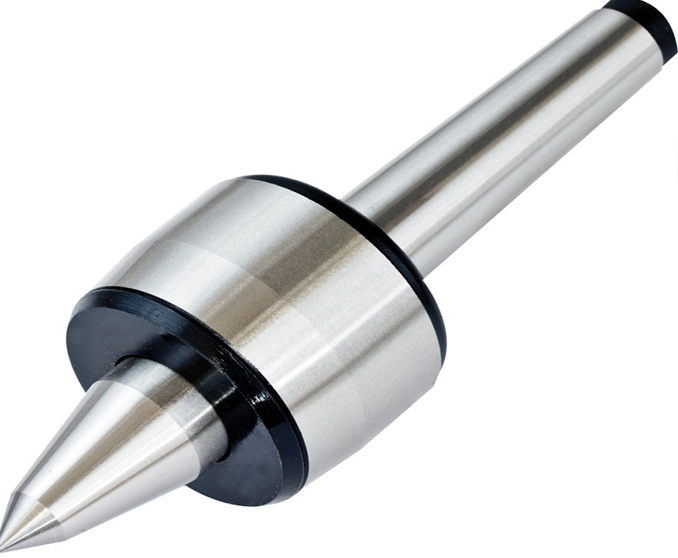

GD-0047 Precision Live Center

Item No.: CO155457734
Send Enquiry

1.material:mandrel use bearing steel
2.high rigidity and high durability
3.high precision:accuracy 0.01mm,high speed 12000rpm
4 Sub-zero treatment and Thermal aging process
5.Live center adopts precision matched angular contact bearing and integration with roller bearing,ensure high concentric precision.
6.Sealing ring at the fron end is dust proof and water proof,can avoid coolant influene the bearing,prolong the life of the live center.

GD-0047	PRECISION LIVE CENTER
Order No.	MS.NO.	L	D	L1	d	D1	Max Load	Max Speed	Accuracy
		(mm)				(mm)	(kg)	(rpm)	(mm)
M11/101	MS1	124	36	27	15	12.065	80	7000	0.01
M11/102	MS2	139	45	34	20	17.780	140	7000	0.005
M11/106	MS3	176.5	60	47	25	23.825	400	5000	0.005
M11/108	MS4	217	70	53	32	31.267	500	3800	0.005
M11/110	MS5	273	90	65	40	44.399	1200	3000	0.005
M11/114	MS6	354.5	105	78	50	63.348	2500	2600	0.01
