Face Mill

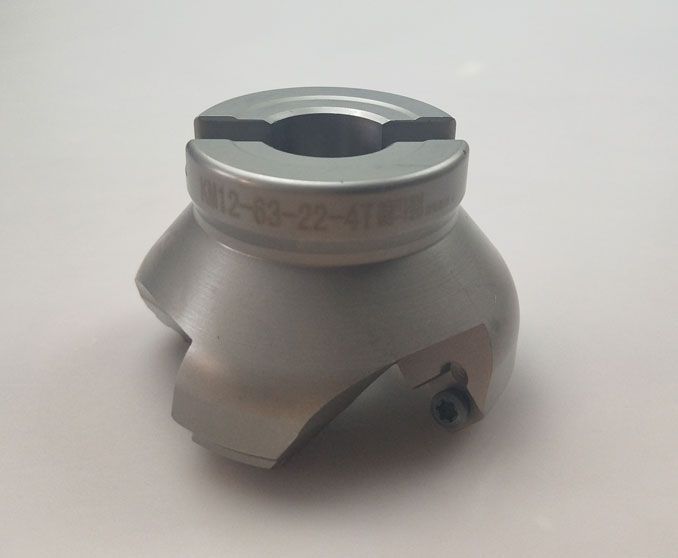

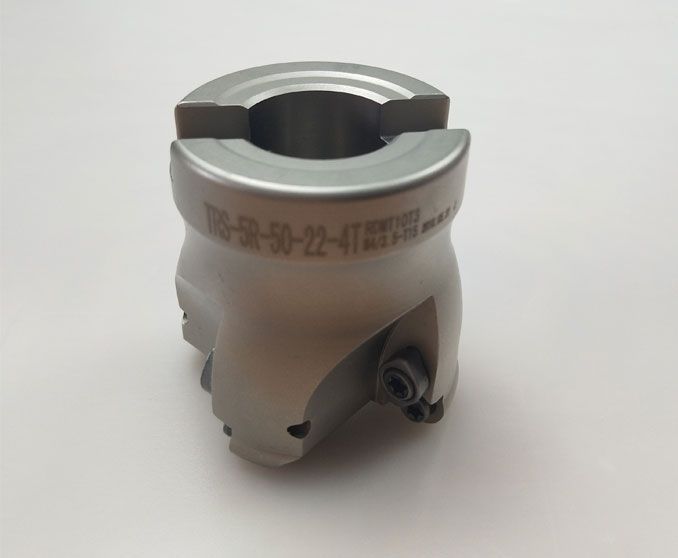

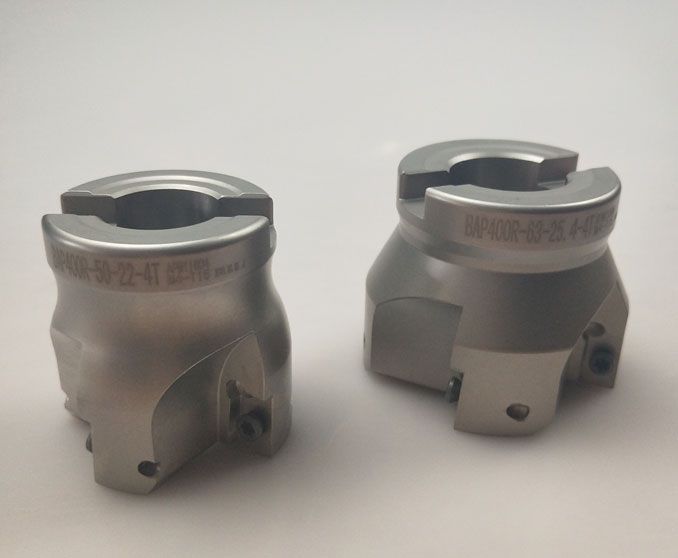

EMR/EMRW ROUND DOUND DOWEL FACE MILL CUTTTERS GD-00131

Item No.: CO162210734
Send Enquiry

1.Products name : EMR/EMRN ROUND DOWEL FACE MILL CUTTERS
2.Material: 40crmo
3. application:0.003mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

GD-00131	EMR/EMRW ROUND DOWEL FACE MILL CUTTERS
规格/型号Model	尺寸Size(mm)							刀片Insert	压板Clamp	螺钉Screw	扳手Wrench
规格/型号Model	D	d	H	W	T	a	重量KGS	刀片Insert	压板Clamp	螺钉Screw	扳手Wrench
EMR-6R-40-16-3T	40	16	42	8.5	5	6	0.3	RPMT1204 M0	A-6R	A40100J M4*10	T15F T15
EMR-6R-50-22-4T	50	22	50	10.4	6.3	6	0.35
EMR-6R-50-25.4-4T	50	25.4	50	10	6	6	0.35
EMR-6R-63-22-4T	63	22	50	10.4	6.3	6	0.55
EMR-6R-63-22-5T	63	22	50	10.4	6.3	6	0.55
EMR-6R-63-25.4-4T	63	25.4	50	10	6	6	0.55
EMR-6R-80-27-5T	80	27	50	12.4	7	6	0.85
EMR-6R-80-27-6T	80	27	50	12.4	7	6	0.85
EMR-6R-80-25.4-5T	80	25.4	50	10	6	6	0.85
EMR-6R-80-25.4-6T	80	25.4	50	10	6	6	0.85
EMR-6R-100-32-6T	100	32	50	14.4	8	6	1.2
EMR-6R-100-31.75-6T	100	31.75	50	13	8	6	1.2
EMR-6R-125-40-6T	125	40	63	16.4	9	6	3.2
EMR-6R-160-40-8T	160	40	63	16.4	9	6	5.2
EMR-6R-200-60-10T	200	60	63	25.7	14	6	6.8
EMR-6R-250-60-12T	250	60	63	25.7	14	6	10.5
