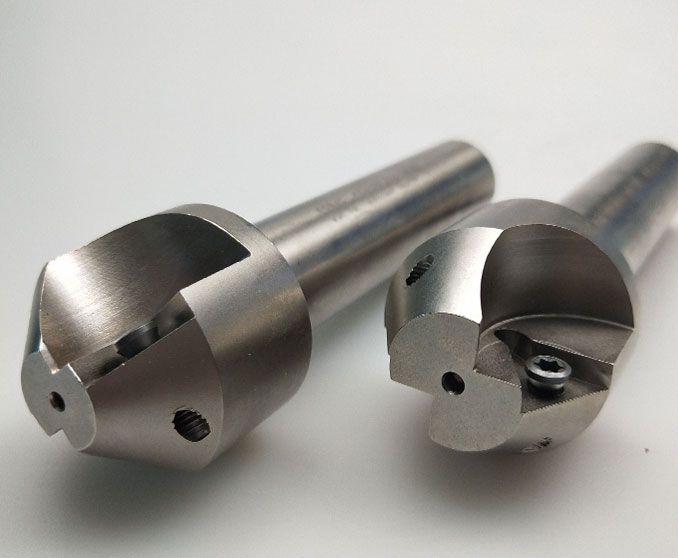

Face Mill

TP SHOULDER FACE MILL GD-00136

Item No.: CO16227734
Send Enquiry

1.Products name : TP SHOULDER FACE MILL
2.Material: 40crmo
3. application:0.002mm
4.Place of Origin: Shandong, China (Mainland)
5.Mini order quantity: 10pcs
6.Package : Paper box
7.Brand : GD-TOOLS

Produce features:
1.Use the anti-knocking tool steeel material quality.
2.After whole pre-hard.finshes again, two processing having the strain

GD-00136	TP SHOULDER FACE MILL						适用刀片 Applicable inserts	压板clamp piece	螺钉Clamp screw	扳手Wrench
型号Model	刃数 No.of flutes	尺寸size
型号Model	刃数 No.of flutes	D	d	L	L1	a
TP16-30X100-C20	2	30	20	100	45	14	TPMN1603 TPKN1603	AMS-4	A40100J M4X10	T15
TP16-35X100-C20	2	35	20	100	45	14
TP16-35X105-C25	2	35	25	105	45	14
TP16-35X110-C32	2	35	32	110	45	14
TP16-40X110-C20	3	40	20	110	45	14
TP16-40X110-C25	3	40	25	110	45	14
TP16-40X115-C32	3	40	32	115	45	14
TP16-50X110-C20	3	50	20	110	42	20	TPMN2204 TPKN2204 XPKR220412 XPKN220408	CYS-20	A50110DM5x11	T20
TP16-50X110-C25	3	50	25	110	42	20
TP16-50X115-C32	3	50	32	115	42	20
TP16-65X110-C20	3	63	20	110	42	20
TP16-65X110-C25	3	63	25	110	42	20
TP16-65X110-C32	3	63	32	110	42	20
