Adapter Series

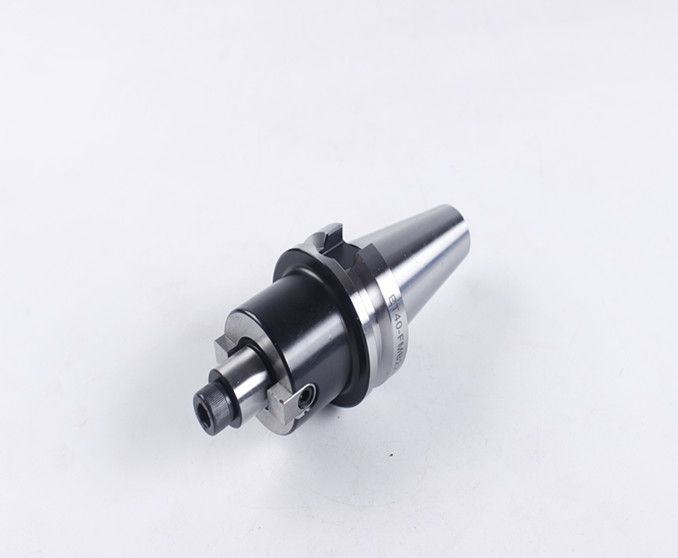

  • GD-0038 Shell Mill Arbors

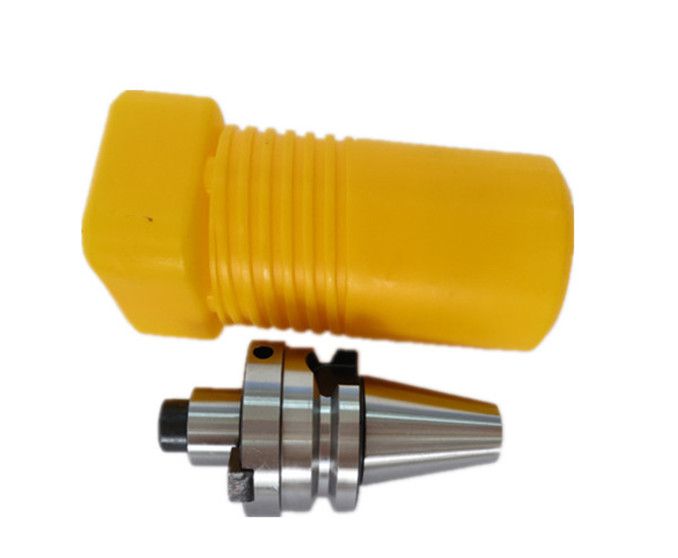

  • GD-0038 Shell Mill Arbors

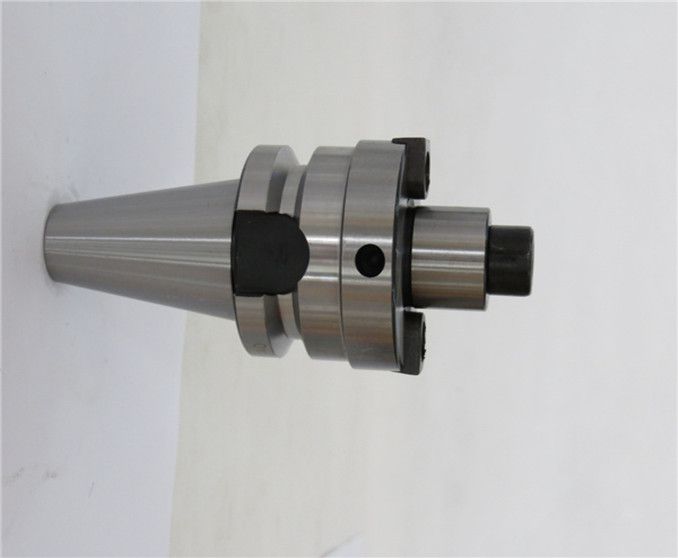

  • GD-0038 Shell Mill Arbors

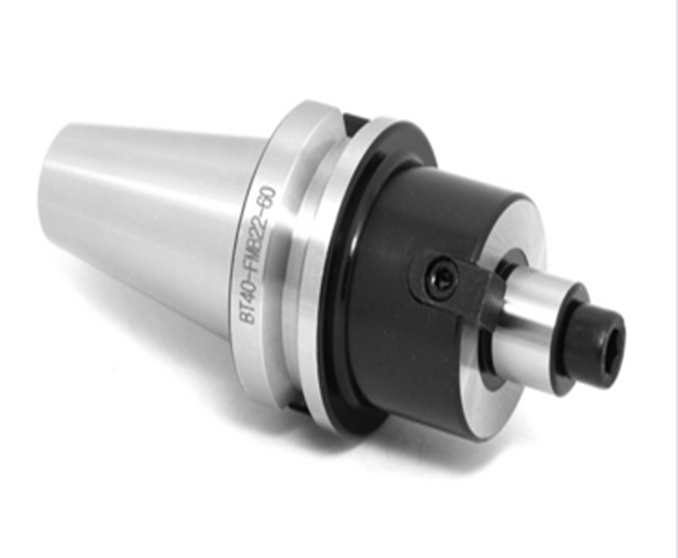

  • GD-0038 Shell Mill Arbors

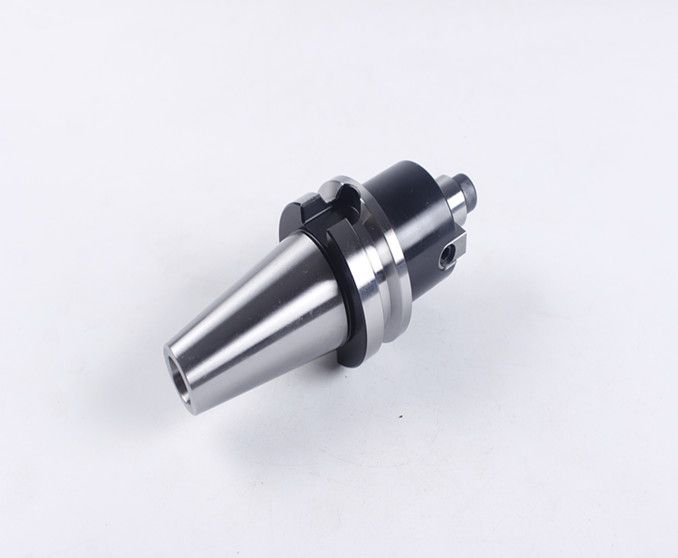

  • GD-0038 Shell Mill Arbors
GD-0038 Shell Mill Arbors GD-0038 Shell Mill Arbors GD-0038 Shell Mill Arbors GD-0038 Shell Mill Arbors GD-0038 Shell Mill Arbors

GD-0038 Shell Mill Arbors

Order NO. D mm d mm W mm L mm Wt(kg) d in W mm L mm Wt(kg)
SD/ISO30*d 31.75 13 8 121 0.31 1/2 6.35 139.5 0.55
16 8 126 0.37 5/8 7.14 140.5 0.64
22 10 129 0.47 3/4 7.94 144 0.75
27 12 134 0.6 7/8 8.7 145 0.88
32 14 141 1.04 1 9.53 145 1.02
40 16 150 1.59 1-1/4 12.7 146 1.41
50 18 155 2.43 1-1/2 15.88 153 1.83
        2 19.05 180 3.57
SD/ISO40*d 44.45 16 8 153 0.71 1/2 6.35 164.5 0.92
22 10 156 0.82 5/8 7.14 165.5 1.01
27 12 159 0.95 3/4 7.94 169 1.13
32 14 178 1.45 7/8 8.7 170 1.3
40 16 182 1.91 1 9.53 170 1.4
50 18 187 2.8 1-1/4 12.7 171 1.7
60 20 209 4.23 1-1/2 15.88 178 2.2
        2 19.05 205 3.9
SD/ISO50*d 69.85 16 8 205 2.88 1/2 6.35 198 2.7
22 10 208 3.04 5/8 7.14 199 2.8
27 12 211 3.22 3/4 7.94 202 2.9
32 14 215 3.49 7/8 8.7 203 3
40 16 219 3.91 1 9.53 203 3.2
50 18 224 4.75 1-1/4 12.7 204 4
60 20 246 6.15 1-1/2 15.88 211.5 4
        2 19.05 238.5 5.7
