Adapter Series

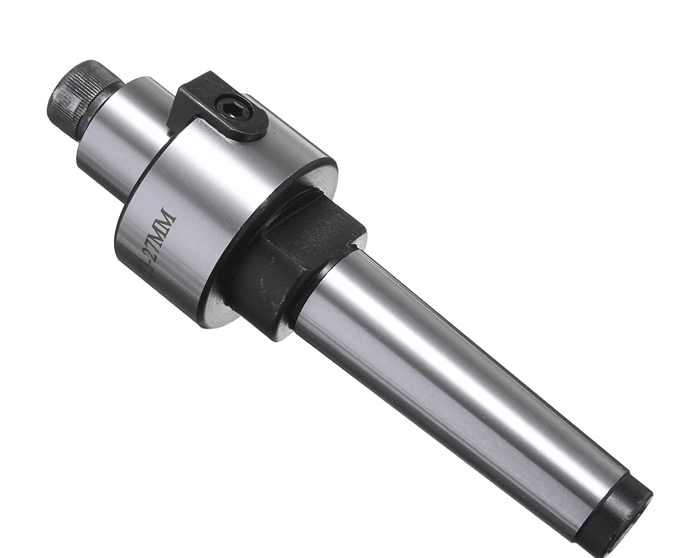

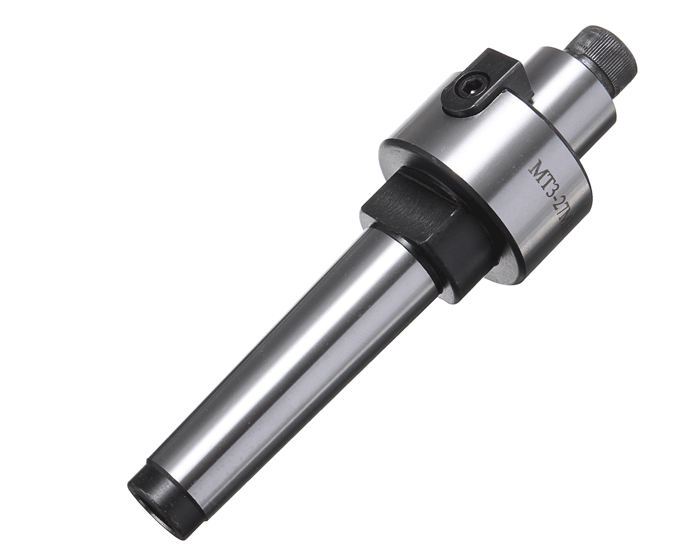

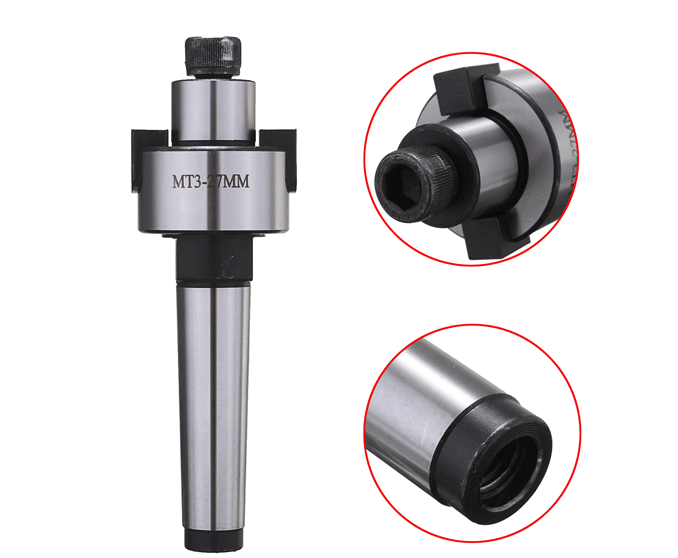

GD-0039 Morse Taper Shell Mill Arbor

1. High quality elastic steel material with long use time.

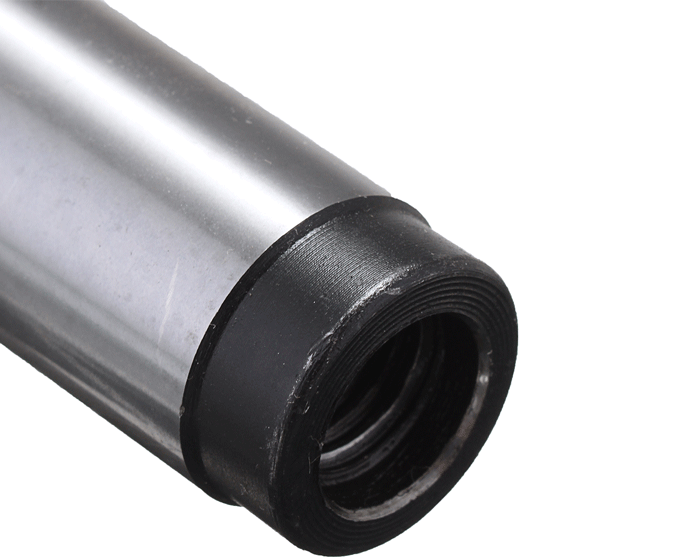

2. Type: Draw Bar and Tang

3. Shank of the Shell End Mill Arbors: MS1-MS5 BT30 BT40 BT50 DIN69871 A30 DIN69871 A40 DIN69871 A50 CT30 CT40 CT50

4. Suitable Facing Cutter：13mm-60mm

5. The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand.

6. Holder hardness:48-55HRC

7. Suitable Pull Stub& Facing Cutter is also upon request.

GD-0039	MORSE TAPER SHELL END MILL ARBORS (DRAW BAR TYPE)
Order No.	D	d	W	Order No.	D	d	W
Order No.	(mm)	(mm)	(mm)	Order No.	(mm)	(cm)	(cm)
SD/MS2W-1/2		1/2	6.35	SD/MS2-13		13	8
SD/MS2W-5/8	17.780	5/8	7.14	SD/MS2-16	17.780	16	8
SD/MS2W-3/4		3/4	7.97	SD/MS2-22		22	10
SD/MS2W-7/8		7/8	8.70	SD/MS2-27		27	12
SD/MS3W-1/2		1/2	6.35	SD/MS3-13		13	8
SD/MS3W-5/8		5/8	7.14	SD/MS3-16		16	8
SD/MS3W-3/4	23.825	3/4	7.94	SD/MS3-22	23.825	22	10
SD/MS3W-7/8		7/8	8.70	SD/MS3-27		27	12
SD/MS3W-1		1	9.53	SD/MS3-32		32	14
SD/MS3W-1-1/4		1-1/4	12.70	SD/MS3-40		40	16
SD/MS4W-1/2		1/2	6.35	SD/MS3-13		13	8
SD/MS4W-5/8		5/8	7.14	SD/MS3-16		16	8
SD/MS4W-3/4		3/4	7.94	SD/MS3-22		22	10
SD/MS4W-7/8	31.267	7/8	8.70	SD/MS3-27	31.267	27	12
SD/MS4W-1		1	9.53	SD/MS3-32		32	14
SD/MS4W-1-1/4		1-1/4	12.70	SD/MS3-40		40	16
SD/MS4W-1-1/2		1-1/2	15.88	SD/MS3-50		50	18
SD/MS5W-1/2		1/2	6.35	SD/MS3-16		16	8
SD/MS5W-5/8		5/8	7.14	SD/MS3-22		22	10
SD/MS5W-3/4		3/4	7.94	SD/MS3-27		27	12
SD/MS5W-7/8	44.399	7/8	8.70	SD/MS3-32	44.399	32	14
SD/MS5W-1		1	9.53	SD/MS3-40		40	16
SD/MS5W-1-1/4		1-1/4	12.70	SD/MS3-50		50	18
SD/MS5W-1-1/2		1-1/2	15.88	SD/MS3-60		60	20
SD/MS5W-2		2	19.05
