GD-0069 milling machine tool vice QGG precision tool vises

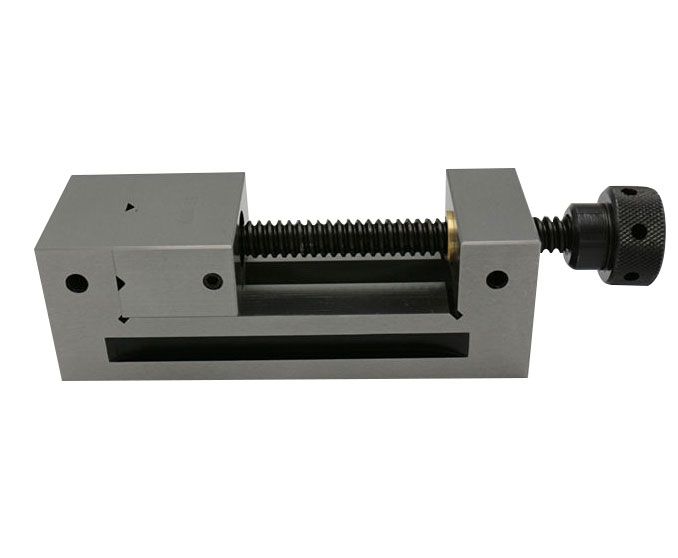

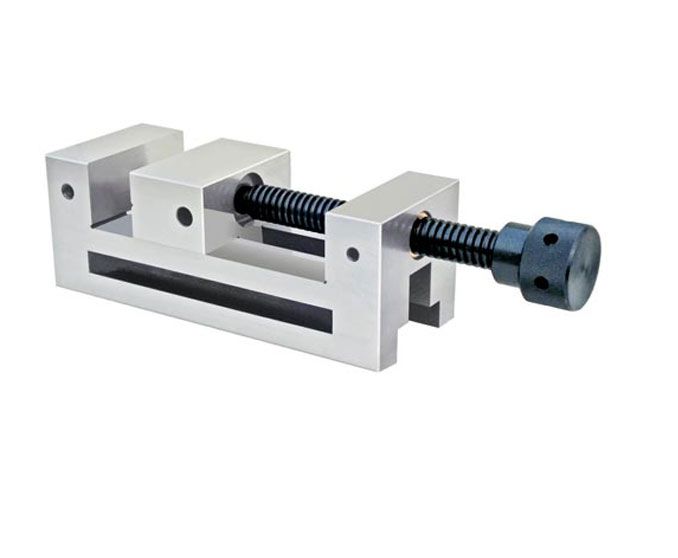

Product name:precision machine tool vise QGG vise
Material:high-qulity alloysteel

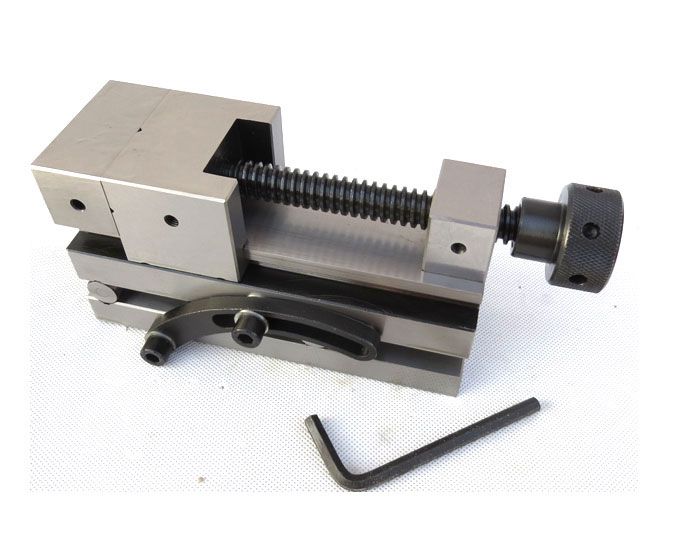

Type:Angle Vise
Hardness:HRC58--62
Parallelism:0.005mm/100mm
Squareness:0.005/100mm
Application:CNC Machine Center
Delivery Status:Standard size delivery short-time

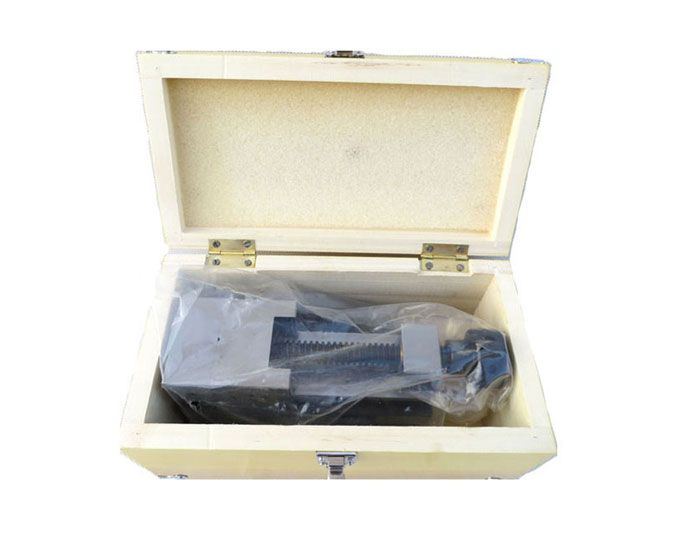

Package:Machine vise with paper box or wooden case


Product Overviews
1. Produced of high quality steel,carburized to wsurface hardness:HRC58-62
2. Parallelism 0.005mm/100mm,squareness 0.005mm
3. Quickly to clamp and easy to operate
4. Used for precision measurement and inspecition precision grinding,EDM and wire-cutting machine
5. Guarantee high accuracy in any position

  QGG系列精密工具平口钳
GD-0069 PRECISION TOOL VISES
Order No. B H Smax Smax Wt
  mm mm mm mm kg
QGG50 50 25 65 155 3.0
QGG60 60 25 55 110 2.4
QGG63 63 32 85 190 3.8
QGG73 73 35 100 210 5.0
QGG80 80 40 100 220 6.5
QGG88 88 40 125 250 11.0
QGG100 100 45 125 260 13.0
QGG125 125 50 160 300 19.5
QGG125A 125 50 210 350 23.0
QGG150 150 50 175 315 23.8
