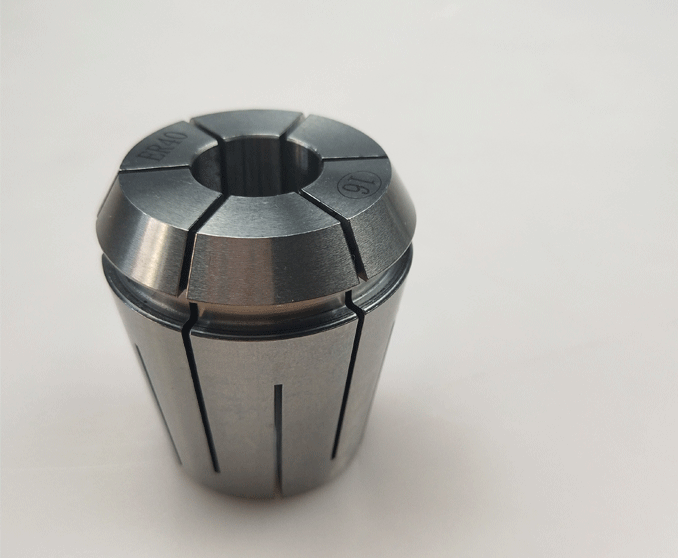

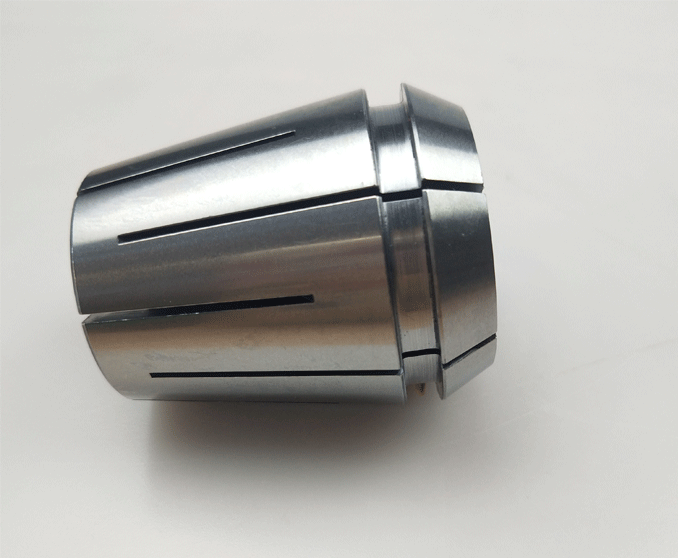

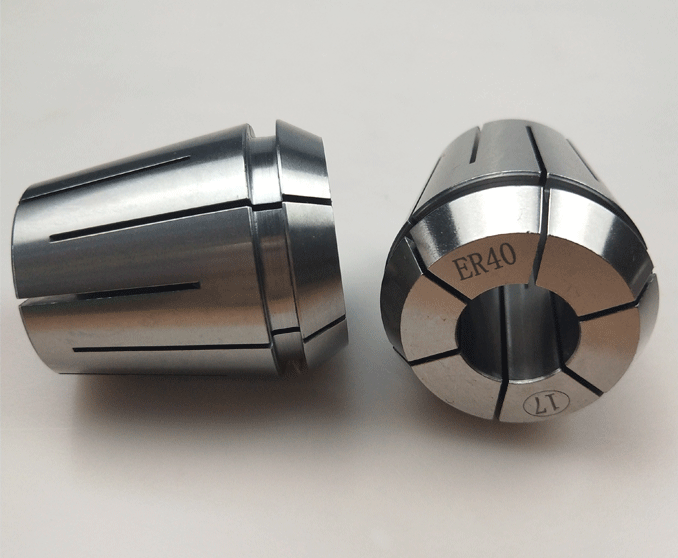

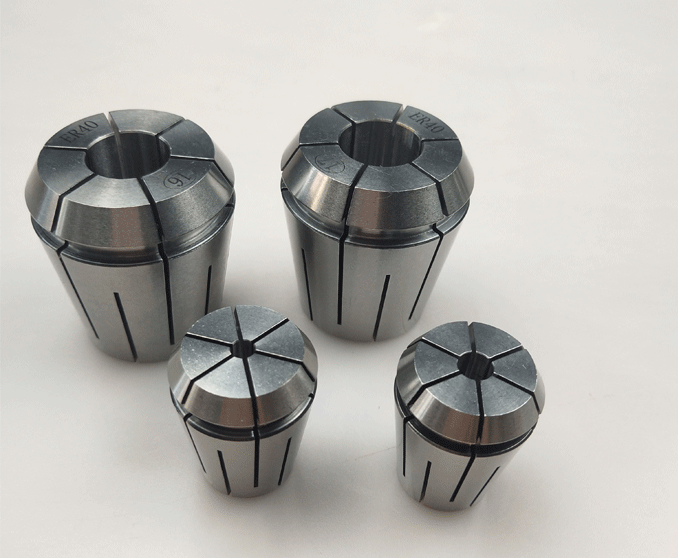

ER STEEL COLLETS GD-0002-1

1. Product Name: Clamping pliers Sealed for

High pressure cooling up to 120 bar GD-0002-1

2. Material: High quality spring steel 65Mn

3. Hardness: HRC44-48

4. Accuracy: 0.008 mm 0.015 mm

5. Type: 426EH 428EH 430EH 470EH 472EH

6. Brand: GD Tools

7. Package: Plastic box-paper box

8. Differences in the use of grooves to reach the seal



9. Central water function applies only to folders to keep the water hole tool

10. Can resist water pressure 7MPA

11. Non-standard can be adjusted.

GD-0002-1 Clamping pliers Sealed for
High pressure cooling up to 120 bar
Bestel-Nr. d Angebot D D1 L L1
426EH 3-6 0.10 16 17 28 6.26
6-10 0.50
428EH 3-6 0.10 20 21 31.5 6.36
6-13 0.50
430EH 3-6 0.10 25 26 34 6.66
6-16 0.50
470EH 3-8 0.10 32 33 40 7.16
8-20 0.50
472EH 4-10 0.10 40 41 46 7.66
10-26 0.50
