Inquiry:
Collets series

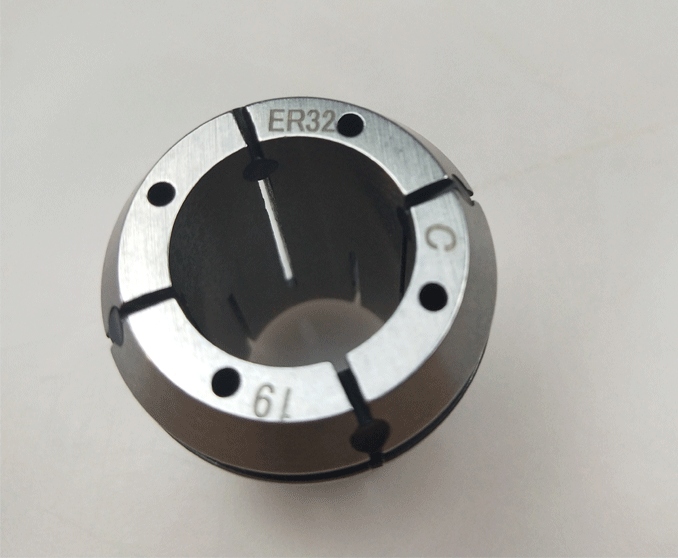

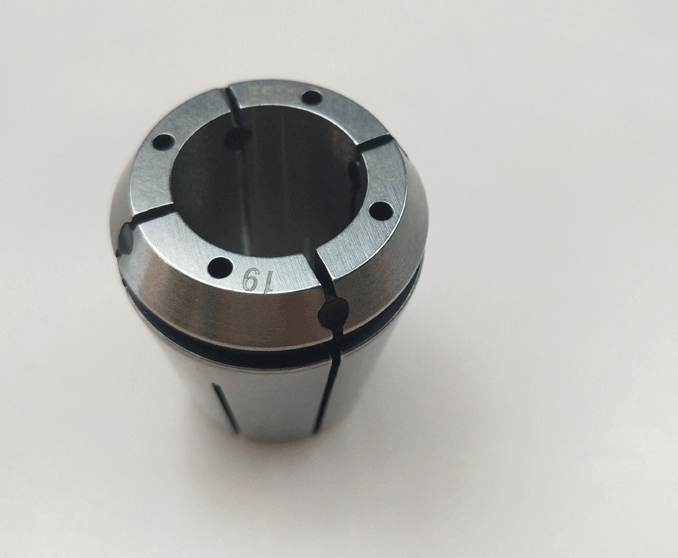

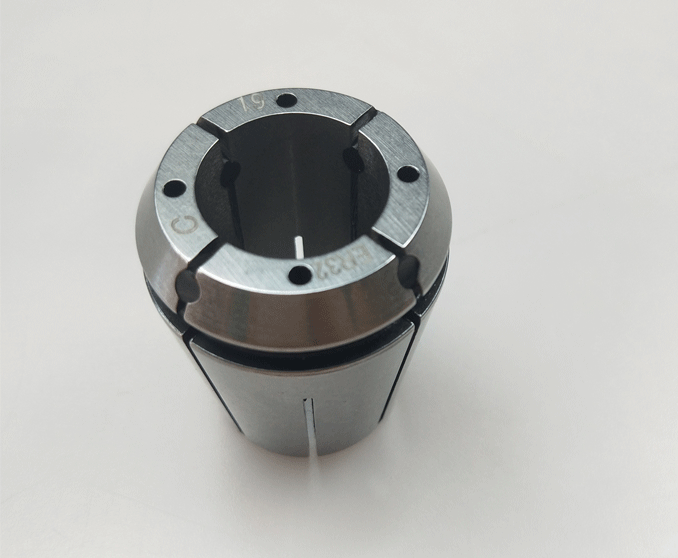

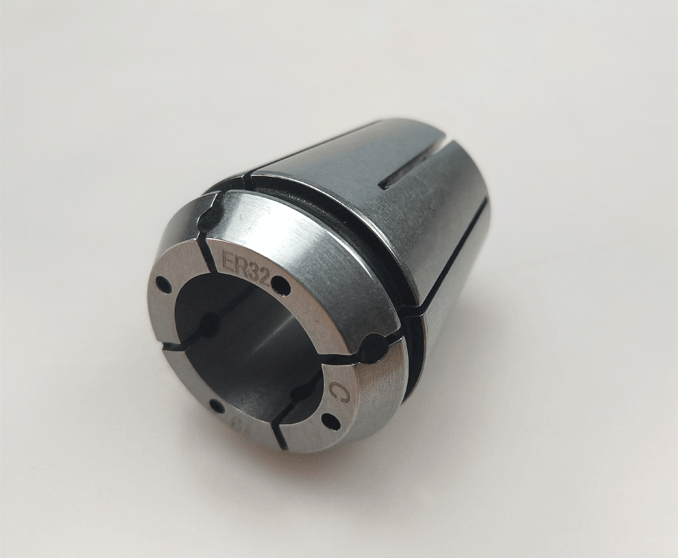

Collets with cooling channels DIN6499B ER System
- Item No.: CO153329734
- Send Enquiry
1.Products name:Collets with cooling channels DIN6499B ER-system
2.Accuracy : 0.015mm
3.Type:ER16 ER20 ER25 ER32 ER40
4.Package:White box Plastic box
5.Application:For mounting straight-shank tools in collet chuck DIN6499.
6.Brand:GD-TOOLS
| GD-0002-2 Collets with cooling channels DIN6499B ER System | ||||
| Bestell-Nr. | Größe | d | D | L |
| 426EC | ER16 | 3-7mm | 17 | 27 |
| 428EC | ER20 | 4-9mm | 21 | 31.5 |
| 430EC | ER25 | 3-14mm | 26 | 34 |
| 470EC | ER32 | 3-20mm | 33 | 40 |
| 472EC | ER40 | 4-26mm | 41 | 46 |
