Face Mill

KM12Universal CNC Milling Cutter Face Milling Machine Cutter Tools

Item No.: CO162223734
Send Enquiry

Product Name :KM 45degrees face mill
Material：Carbide, 40CrMo
Coating：TiCN
Usage：Milling machine
Hardness：HRC42-46
Overall Length:50-100mm
Diameter：50mm,63mm,80mm,100mm,125mm...
Controlling Mode:CNC Tooling System
Processing Type：High Hardness Metal
Application：Industrial Used
Insert Type:Carbide milling insert
Clamp screw:M4X10
Technology：Polished
Cicular cushin:FMB-40-SHIM
Suitable for:Milling Machine

1.Fir steel,castings,aluminum pieces of various ,materials blade the
relevance of a wide range of
2.Capacity chip a large space ,good chip disposal
3.Planar milling finishing applicable
Large rake angle ,cutting a small load.

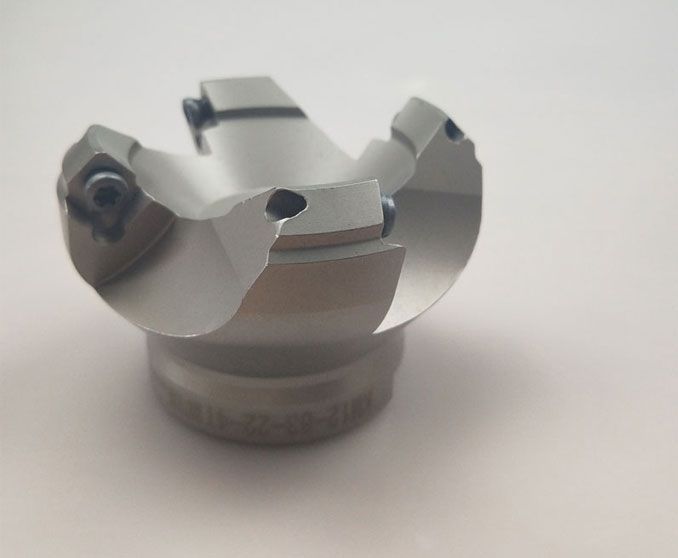

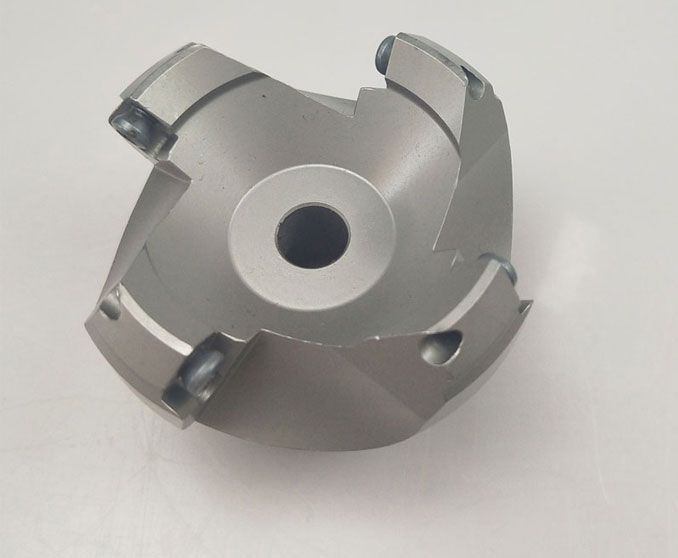

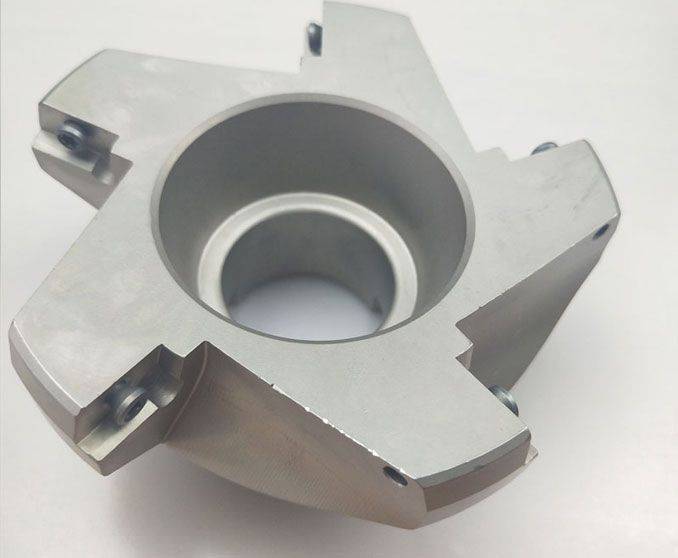

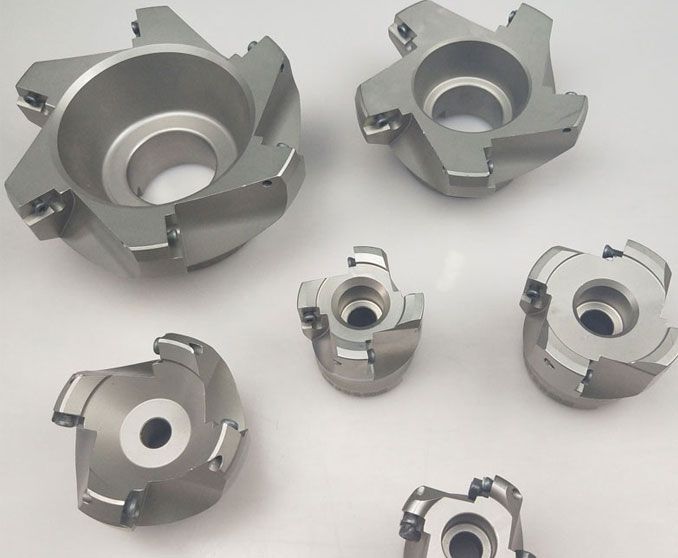

KM-45° Face Mill
型号 Cat .No	尺寸Size
型号 Cat .No	D	d	H	W	T
KM12-50-22-4T	50	22	50	10.4	6.3

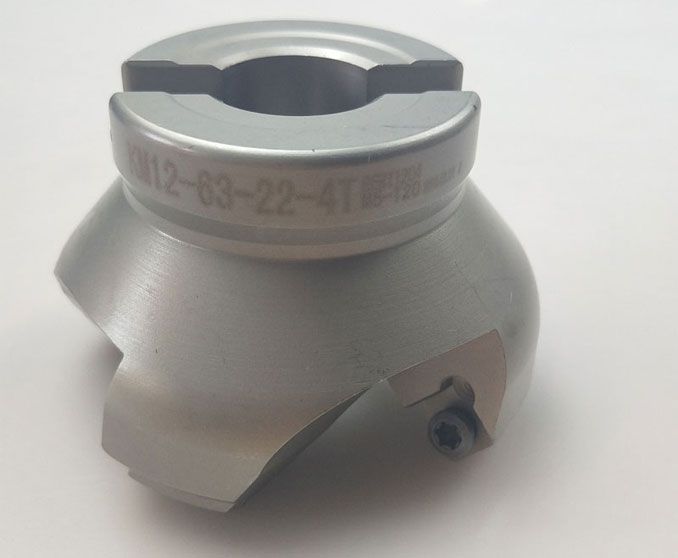

KM12-63-22-4T	63	22	50	10.4	6.3
KM12-80-27-5T	80	27	50	12.4	7
KM12-100-32-5T	100	32	50	14.4	8
KM12-125-40-6T	125	40	63	16.4	9
KM12-160-40-6T	160	40	63	16.4	9
KM12-200-60-8T	200	60	63	25.7	14
KM12-250-60-10T	250	60	63	25.7	14
KM12-63-25.4-4T	63	25.4	50	10	6
KM12-80-25.4-5T	80	25.4	50	10	6
KM12-100-31.75-5T	100	31.75	50	13	8

配件 Mating
型号 Cat .No	刀片 Insert	螺钉 Clamp screw	扳手 Wrench
KM12	SEGD1204	M5×11	T20
