Face Mill

BAP Indexable Face Milling Cutter Cutting Tools

Item No.: CO162225734
Send Enquiry

Product Name :BAP Indexable Face Milling Cutter Cutting Tools
Material：Carbide, 40CrMo
Coating：TiCN
Usage：Milling machine
Hardness：HRC42-46
Overall Length:50-100mm
Diameter：50mm,63mm,80mm,100mm,125mm...
Controlling Mode:CNC Tooling System
Processing Type：High Hardness Metal
Application：Industrial Used
Insert Type:Carbide milling insert
Clamp screw:M4X10
Technology：Polished
Cicular cushin:FMB-40-SHIM
Suitable for:Milling Machine

1.11°positive angle blade
2.Adaptive multi-material blade,applicable to aluminum steel milling
3.Screw Lovking,allow a large space debris,a good chip disposal
4.Cutting light, the resistance of small

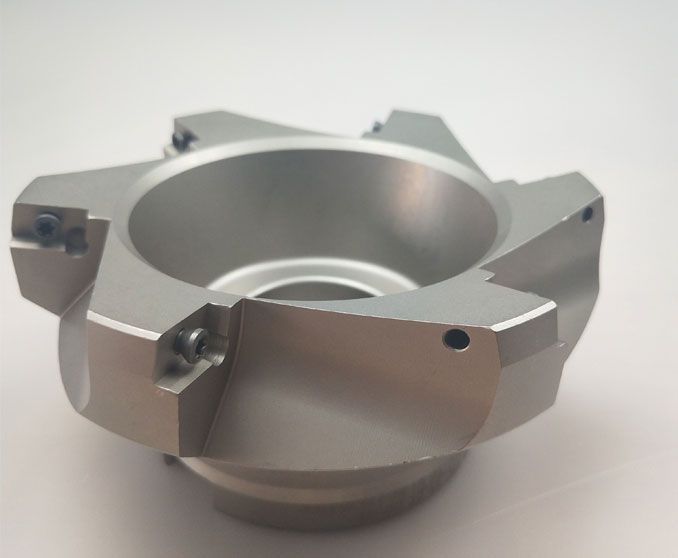

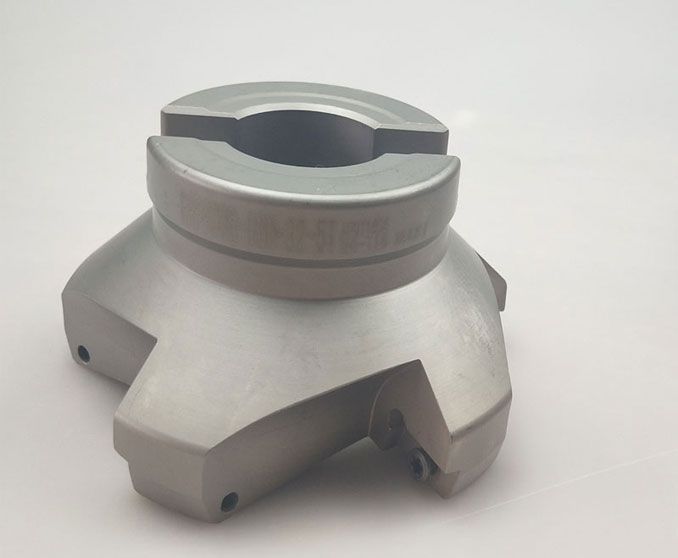

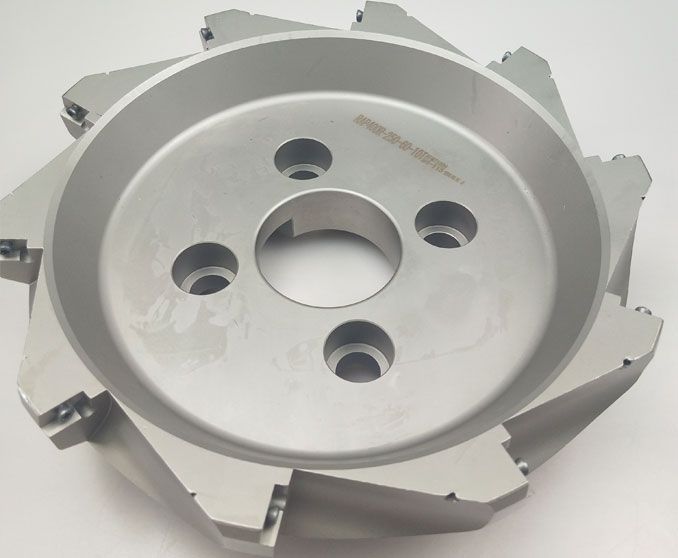

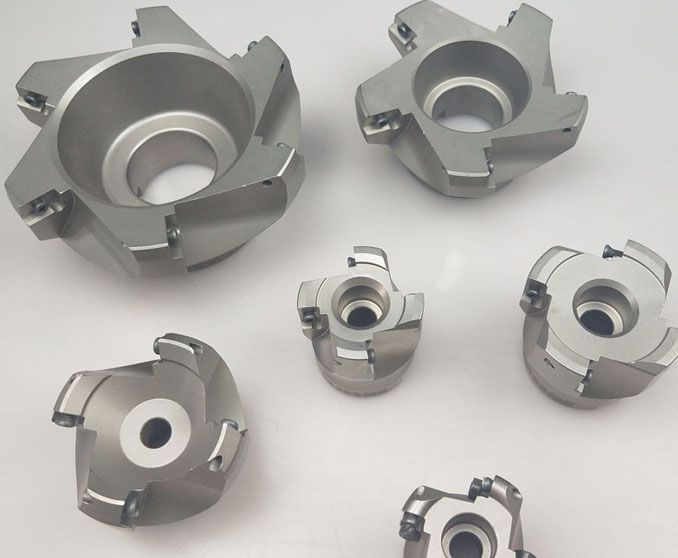

BAP Right angle shoulder face mill
型号 Cat .No	尺寸Size
型号 Cat .No	D	d	H	W	T	a
BAP300R-40-16-5T	40	16	40	8.4	5.6	9
BAP300R-50-22-6T	50	22	50	10.4	6.3	9

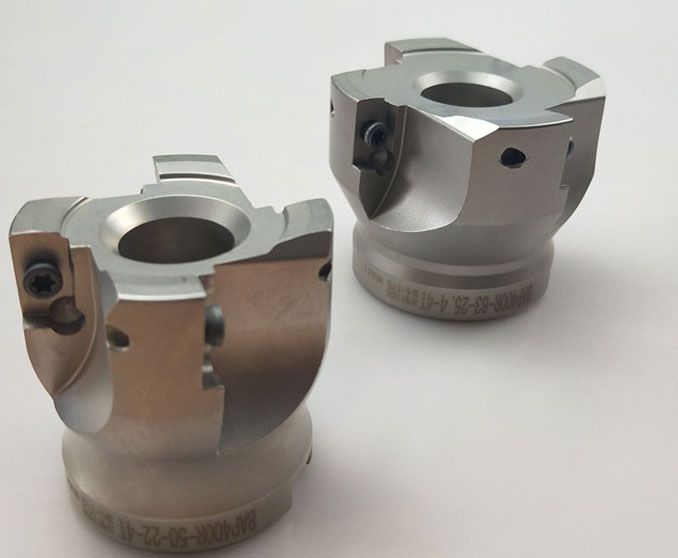

BAP400R-50-22-4T	50	22	50	10.4	6.3	14
BAP400R-63-22-4T	63	22	50	10.4	6.3	14
BAP400R-80-27-6T	80	27	50	12.4	7	14
BAP400R-100-32-6T	100	32	50	14.4	8	14
BAP400R-125-40-7T	125	40	63	16.4	9	14
BAP400R-160-40-8T	160	40	63	16.4	9	14
BAP400R-200-60-9T	200	60	63	25.7	14	14
BAP400R-250-60-14T	250	60	63	25.7	14	14
BAP400R-63-25.4-4T	63	25.4	50	10	6	14
BAP400R-80-25.4-6T	80	25.5	50	10	6	14
BAP400R-100-31.75-6T	100	31.75	50	13	8	14
BAP400R-125-38.1-8T	125	38.1	63	16.2	10	14
BAP400R-160-50.8-8T	160	50.8	63	19.3	11	14

配件 Mating
型号 Cat .No	刀片 Insert	螺钉 Clamp screw	扳手 Wrench
BAP300R	APMT 1135 PDER	M2.5×6	T8
BAP400R	APMT 1604 PDER	M4×10	T10
