Quick Change Tool Post

  • 40-position quick change tool post and tool holders
  • 40-position quick change tool post and tool holders
  • 40-position quick change tool post and tool holders
  • 40-position quick change tool post and tool holders
  • 40-position quick change tool post and tool holders
40-position quick change tool post and tool holders 40-position quick change tool post and tool holders 40-position quick change tool post and tool holders 40-position quick change tool post and tool holders 40-position quick change tool post and tool holders

40-position quick change tool post and tool holders

Application:Milling Cutter
Hardness:HRC50--60
Category:Machine tool accessories
Lathe swing:120-700mm
Material:spheroidal cast iron

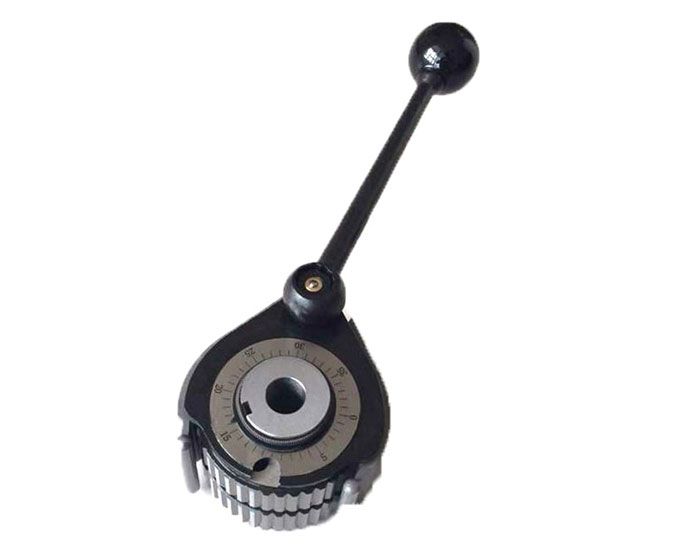

1. cam-lock handle rigidity locks & quickly releases tool holder.
2. correct height of cutting edge is easily and accurately adjusted by special set screws.
3. tools can be reground without removal form tool holder setting remains unaltins unaltered.
4. 40 different angles (every 9º) are conveniently selected from position dials with marker.
5. holders are interchangeable with most other brand 40 position tool post.
Lathe swing: 120-220 ~ 400-70
Xmin: 18.5-61
Xmax: 26.5-91
European-Standard Quality Ensure;
Adjustable according to different requirement;

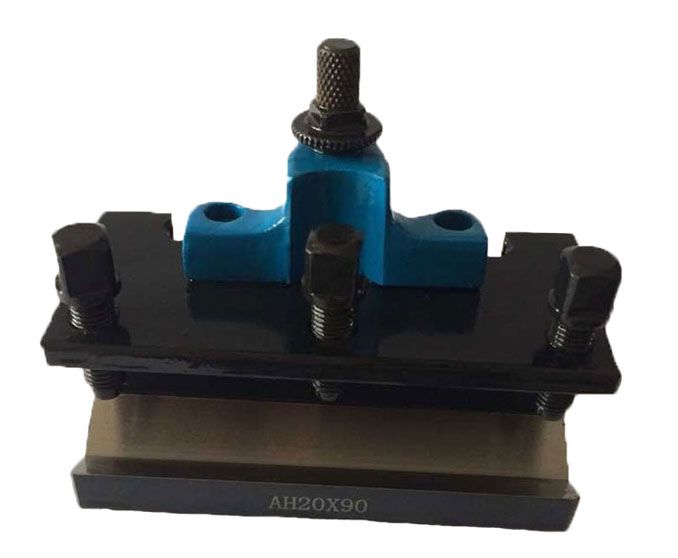

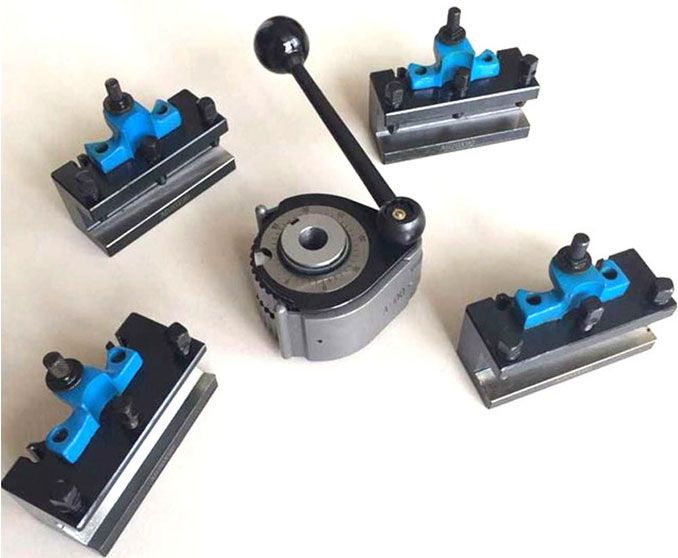

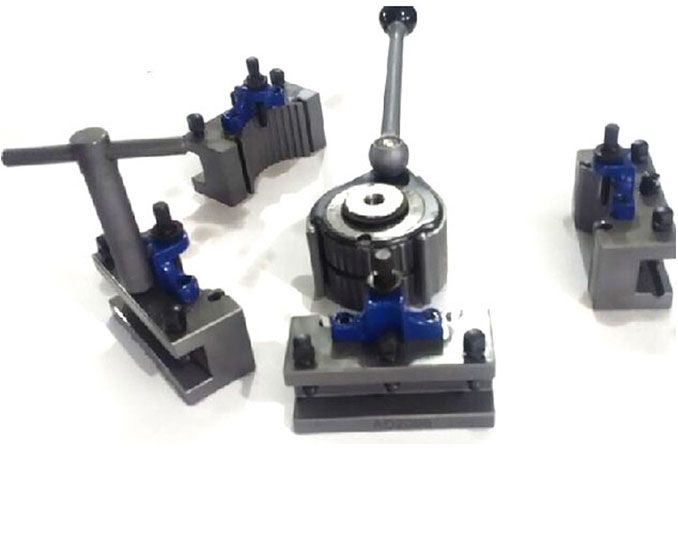

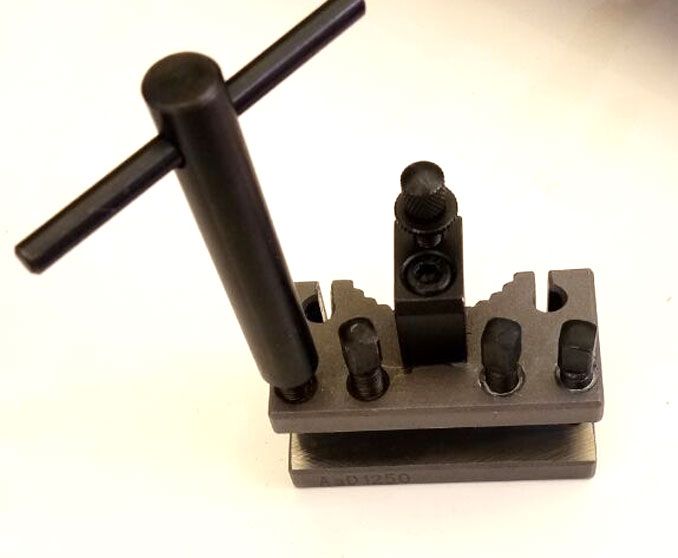

40-POSITION QUICK CHANGE TOOL POST AND TOOL HOLDERS

    0063齿式快换刀夹及刀夹
GD-0062 40-POSITION QUICK CHANGE TOOL POST AND TOOL HOLDERS
Order No. Swing dia(in) Xmin Xmax y h v s u t
Aa 120-220 18 26 6 12 37 37 33.5 13
  150-300 25.5 36.5 9.5 16 56 56 52.4 20
A 29.5 40.5 20
  200-400 29 40.5 9 20 132 68 65.3 20
E 34 43 25
  300-500 38 58 13 25 152 79 75 32
B 46 57 14 32
    47 88 15 32 191 110 92 40
C 400 56 92 16 40 202 102
    61 91 16 45 202 102
