Face Mill

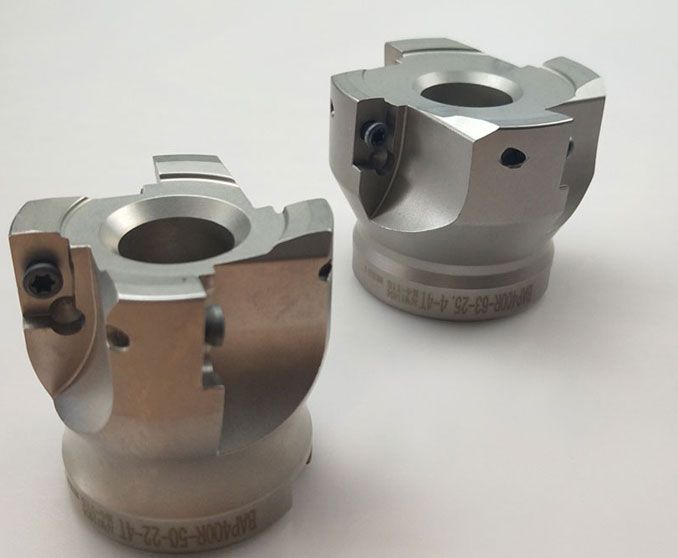

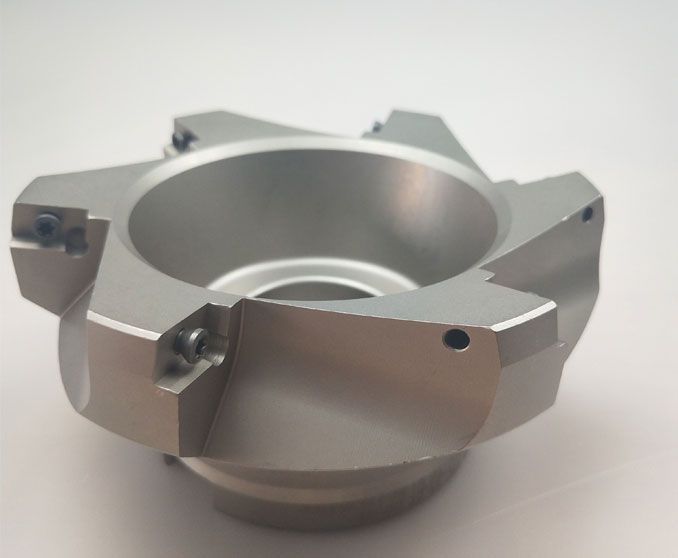

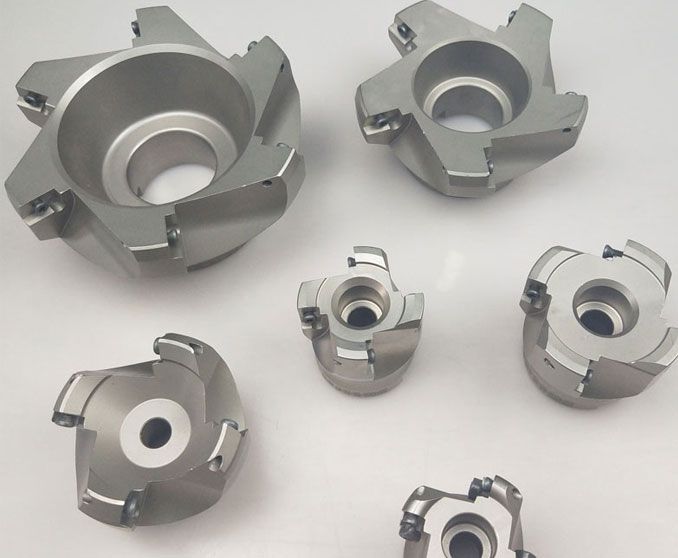

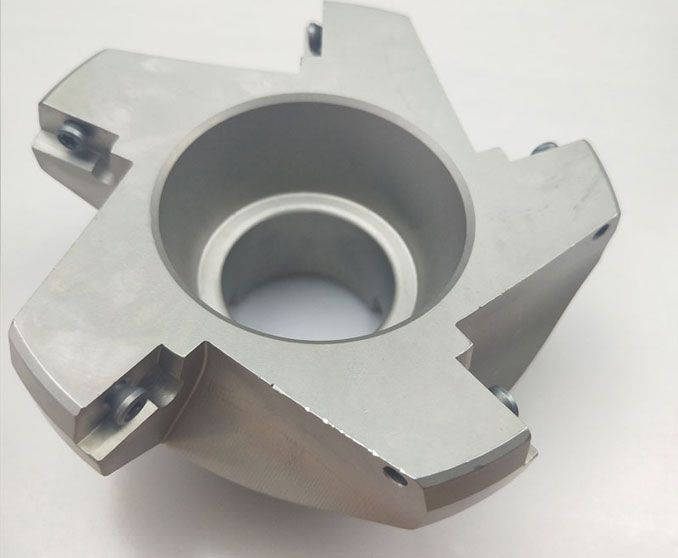

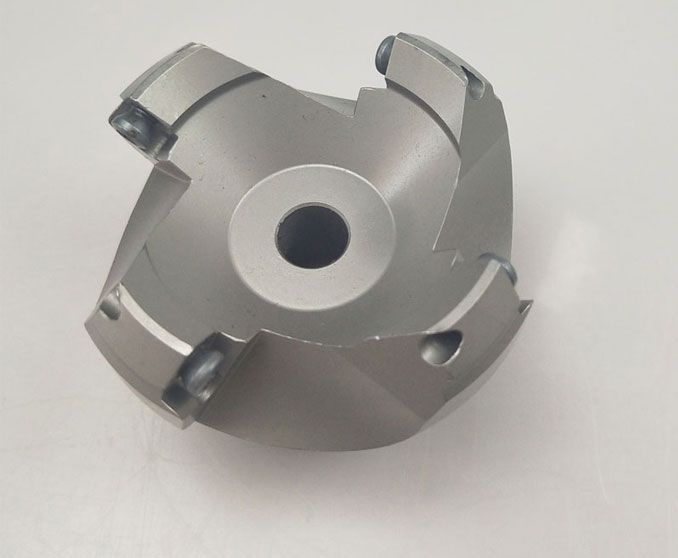

TRS Round dowel face mill CNC milling cutter

Item No.: CO162222734
Send Enquiry

Product Name : TRS Round dowelface mill
Material：Carbide, 40CrMo
Coating：TiCN
Usage：Milling machine
Hardness：HRC42-46
Overall Length:50-100mm
Diameter：50mm,63mm,80mm,100mm,125mm...
Controlling Mode:CNC Tooling System
Processing Type：High Hardness Metal
Application：Industrial Used
Insert Type:Carbide milling insert
Clamp screw:M4X10
Technology：Polished
Cicular cushin:FMB-40-SHIM
Suitable for:Milling Machine

1.Using the 15°positive angle blade
2.Blade economy,the applicability of high
3.Capacity chip a large space,good chip disposal
4.Cone design,steel high

TRS Round dowel face mill
型号 Cat .No	尺寸Size
型号 Cat .No	D	d	H	W	T	a
TRS5-5R-50-22-4T	50	22	50	10.4	6.3	5
TRS5-5R-63-22-4T	63	22	50	10.4	6.3	5
TRS5-5R-80-27-6T	80	27	50	12.4	7	5
TRS5-5R-100-32-6T	10	32	50	14.4	8	5
TRS5-6R-50-22-4T	50	22	50	10.4	6.3	6
TRS5-6R-63-22-4T	63	22	50	10.4	6.3	6
TRS5-6R-80-27-6T	80	27	50	12.4	7	6
TRS5-6R-100-32-6T	100	32	50	14.4	8	6
TRS5-8R-63-22-4T	63	22	50	10.4	6.3	8
TRS5-8R-80-27-5T	80	27	50	12.4	7	8
TRS5-8R-100-32-6T	100	32	50	14.4	8	8

配件 Mating
型号 Cat .No	刀片 Insert	螺钉 Clamp screw	扳手 Wrench
BAP300R	APMT 1135 PDER	M2.5×6	T8
BAP400R	APMT 1604 PDER	M4×10	T15
