Inquiry:
Collets series

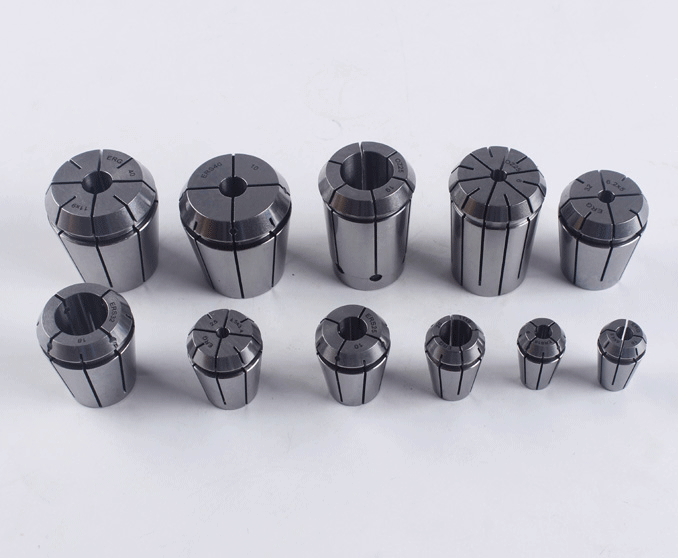

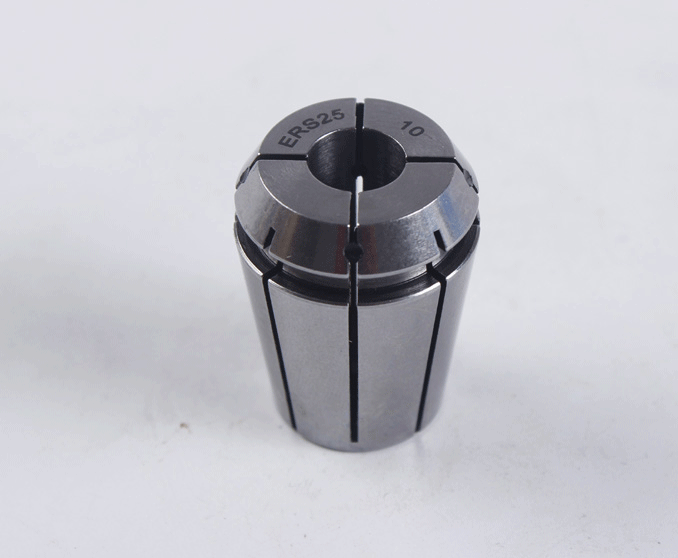

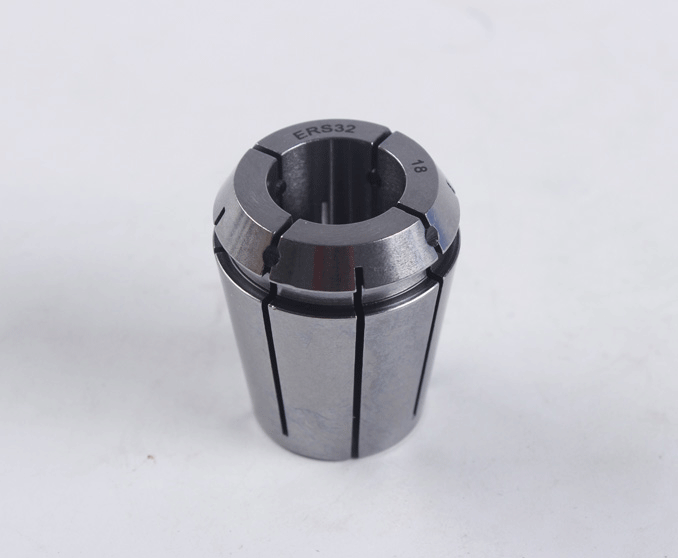

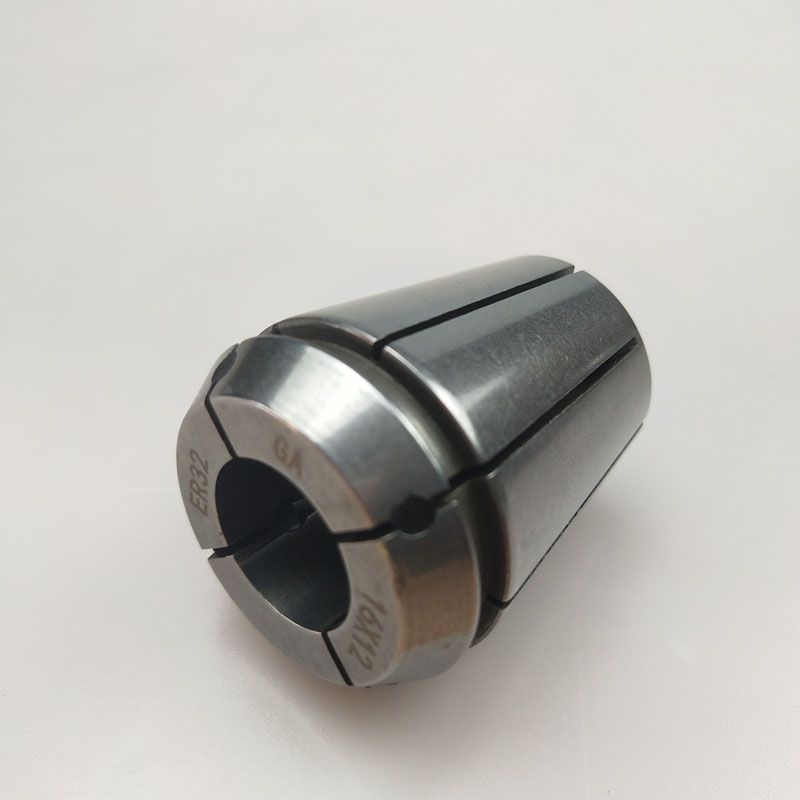

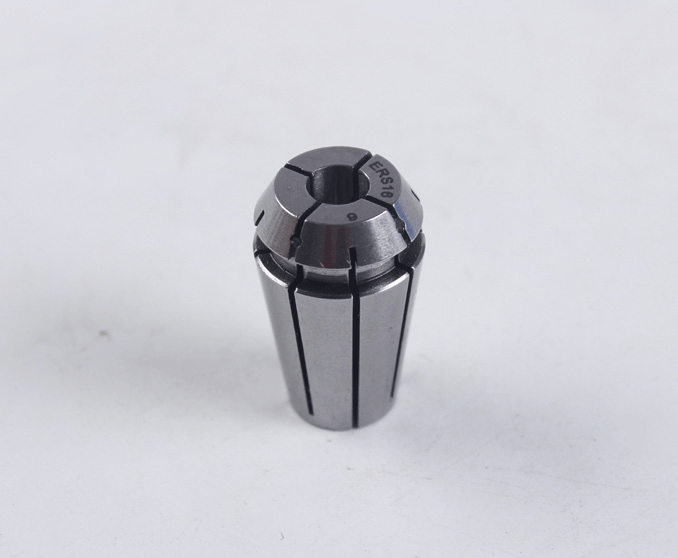

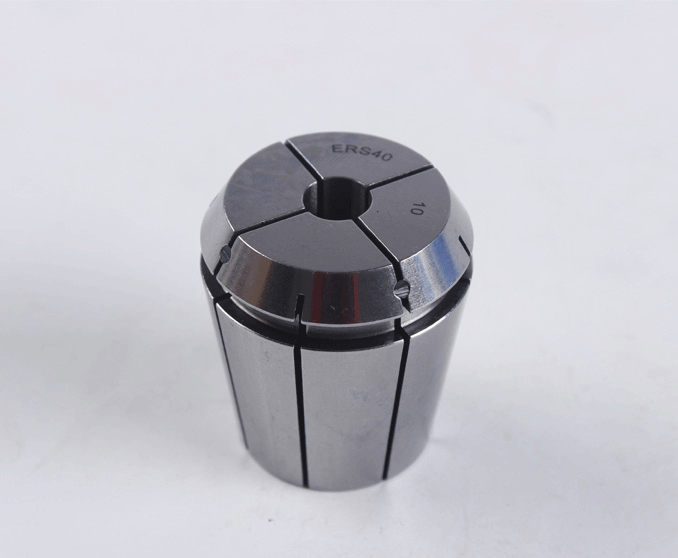

GD-0002 ERC COOL COLLETS
- Item No.: CO154259734
- Send Enquiry
1.Products name : ERC sealed collets
2. Material: High quality spring steel 65Mn
3.Hardness : HRC44-48
4.Accuracy : 0.015mm
5.Type : ER16C ER20C ER25C ER32C ER40C
6.Brand : GD-TOOLS
7.Package : Plastic box paper box
8.Mini order quantity : 10pcs
| GD-0002 ERC COOL COLLETS | |||
| Order No. | D | L | d |
| ER16C-d | 16.74 | 27.50 | 2-10 |
| ER20C-d | 20.74 | 31.50 | 2-13 |
| ER25C-d | 25.74 | 34.00 | 2-16 |
| ER32C-d | 32.74 | 40.00 | 2-20 |
| ER40C-d | 40.74 | 46.00 | 3-26 |
