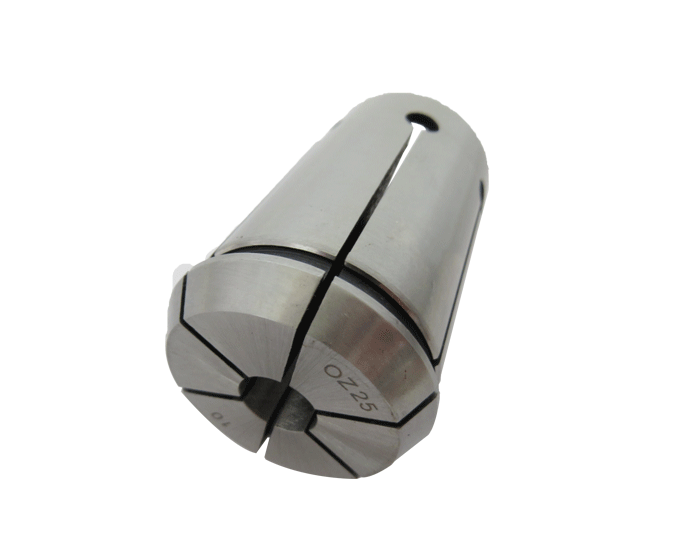

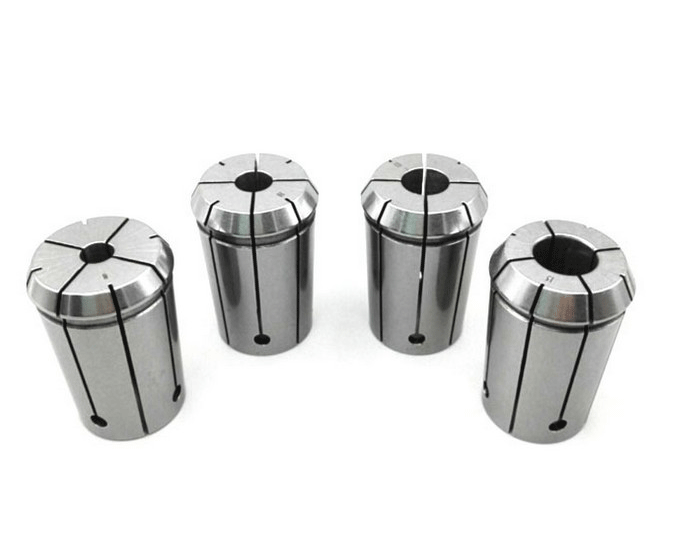

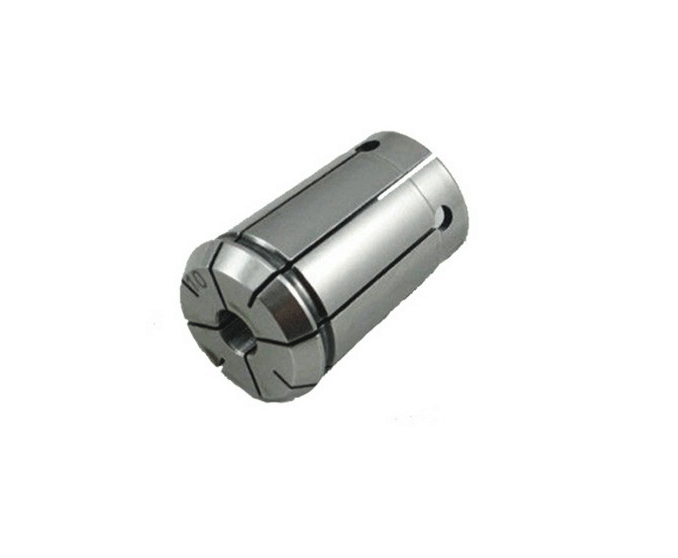

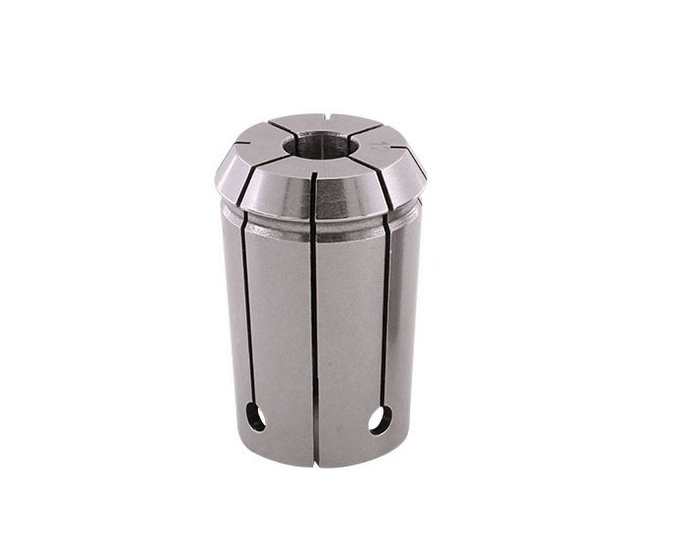

GD-0009 DIN6388A EOC COLLETS

1.Products name : DIN6388A EOC COLLETS

2.Material:65Mn

3.Accuracy:0.015mm

4.Hardness:HRC44-48

5.Type:EOC6A EOC8A EOC10A EOC12A EOC16A EOC20A EOC25A EOC32A EOC40A EOC50A

6.Mini order quantity: 10pcs

7.Package : Paper box

8.Brand : GD-TOOLS

9.H11 clamp workpiece or tooling shank tolerance h11


GD-0009 DIN6388A EOC COLLETS
Model No. D D1 d L L1 L2 L3
EOC6A 10 11.5 1-6 21 3.5 0.5 4
EOC8A 12.65 14.5 1-8 26 4 0.8 4.5
EOC10A 15.15 17.2 1-10 30 4.5 0.8 4.5
EOC12A 17.75 19.8 1-12 34 5 1.1 4.5
EOC16A 22.65 25.5 2-16 40 5.5 1.2 5.5
EOC20A 27.4 29.8 2-20 45 6 1.35 6
EOC25A 32.9 35.05 2-25 52 6 1.4 6
EOC32A 41.3 43.7 4-32 60 6 1.45 7
EOC40A 49.7 52.2 6-40 68 6 1.45 8
EOC50A 61.1 63.8 8-50 80 7 1.45 9
