Inquiry:
Collets series

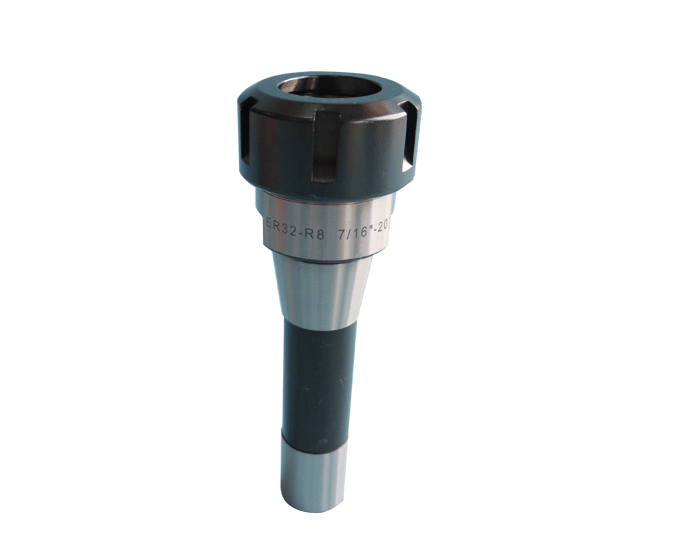

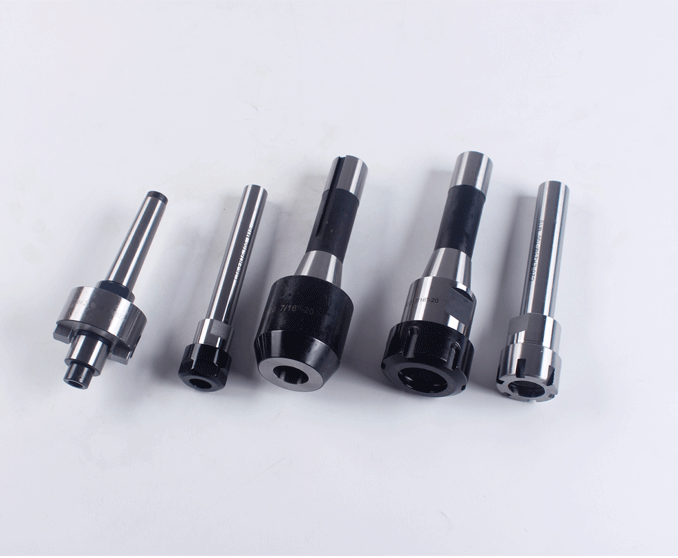

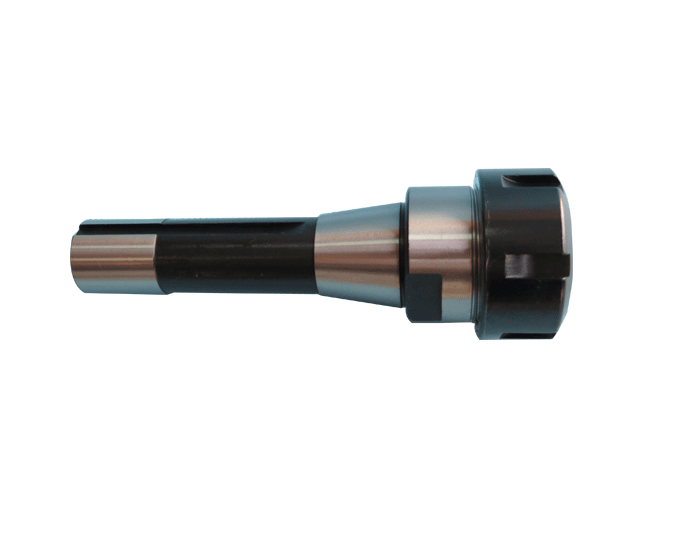

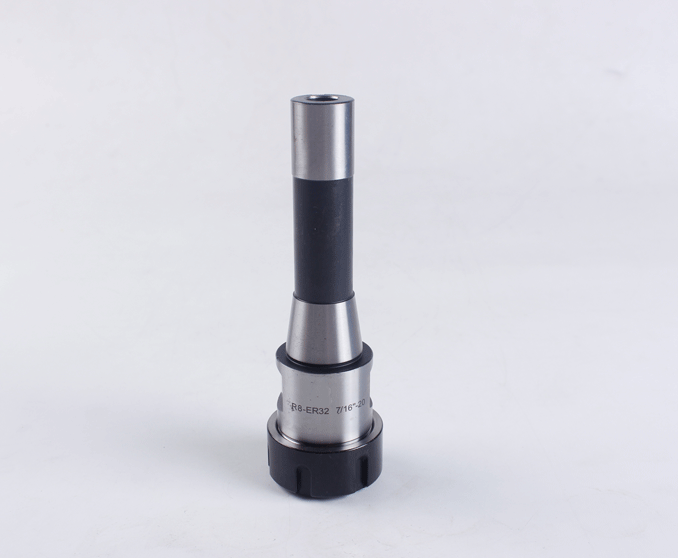

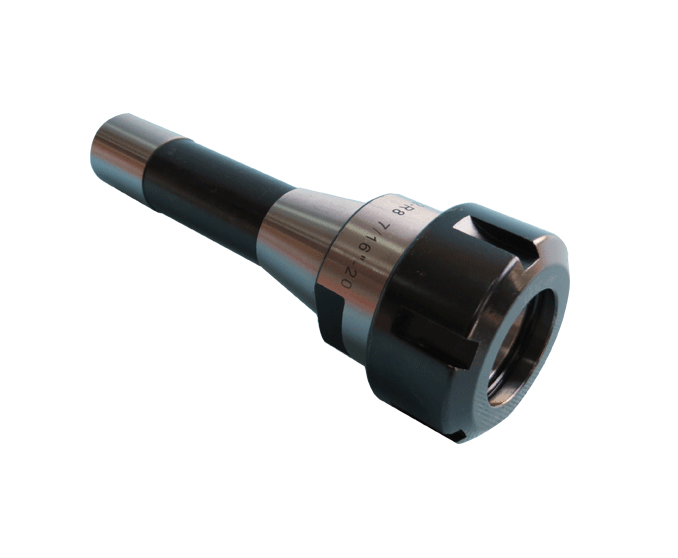

GD-0016 R8 taper collet chuck
- Item No.: CO154030734
- Send Enquiry
1.Products name：R8 taper collet chuck
2.Material: 40Cr
3.Hardness: HRC48-52
4.Accuracy: 0.005mm
5.Package: Plastic box
6.Type: R8xER11 R8xER16 R8xER20 R8xER25 R8xER32 R8xER40
7.Mini order quantity:10pcs
8.Package:Plastic box
9.Brand:GD-TOOLS
| GD-0016 | R8 TAPER COLLET CHUCK | ||
| Order No. | d | D | L1 |
| R8×ER11 | 1-7 | 19 | 34.7 |
| R8×ER16 | 1-10 | 28 | 43.7 |
| R8×ER20 | 1-13 | 34 | 46.5 |
| R8×ER25 | 1-16 | 42 | 49.7 |
| R8×ER32 | 2-20 | 50 | 63 |
| R8×ER40 | 3-26 | 63 | 72 |
