Collets series

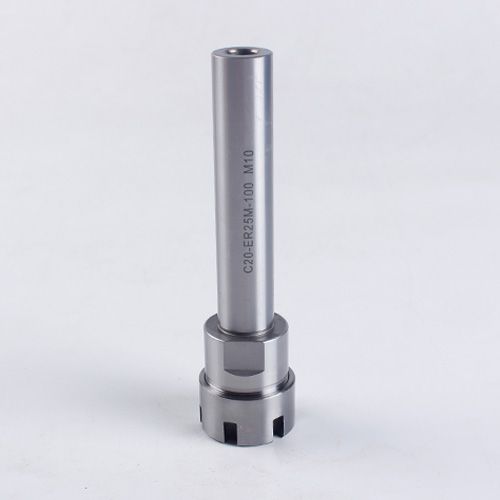

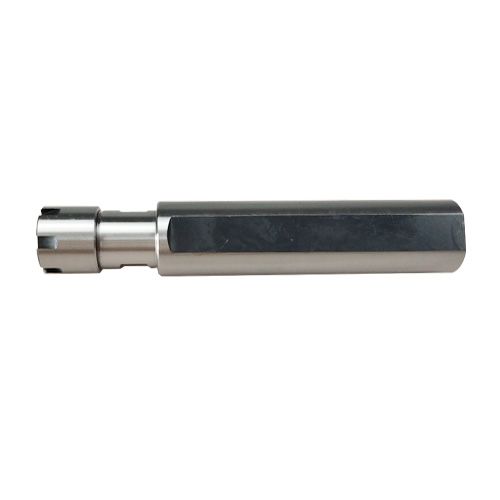

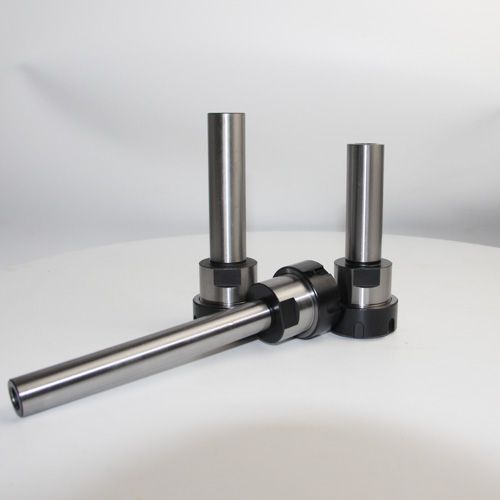

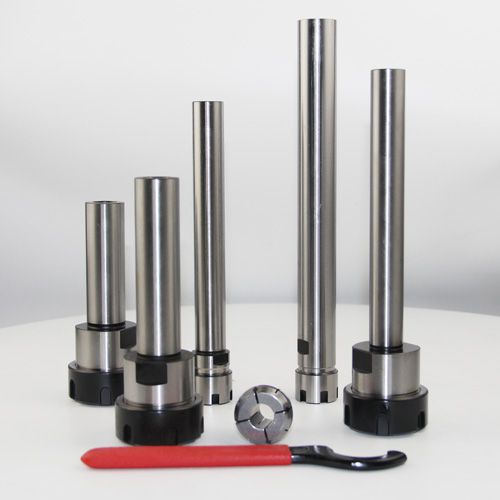

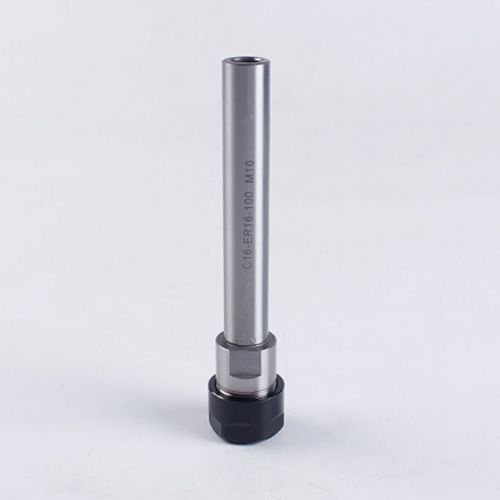

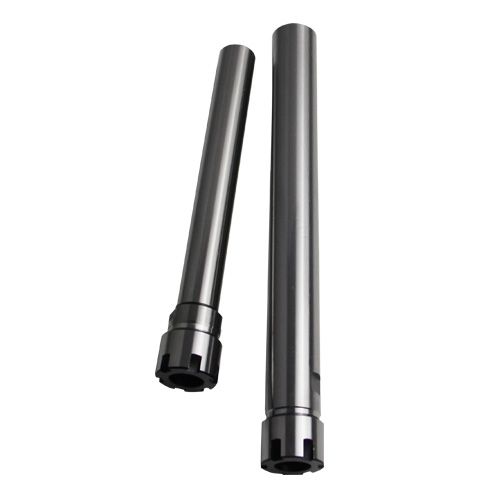

GD-0018 straight shank collet chuck with mini nut

GD-0018 straight shank collet chuck with mini nut

Item No.: CO154033734
Send Enquiry

1.Products name：Straight shank collet chuck with mini nut

2.Material: 40Cr

3.Hardness: HRC48-52

4.Accuracy: 0.005mm

5.Package: Plastic box

6.Type: C10 C12 C16 C20 C25

7.Mini order quantity:10pcs

8.Package:Plastic box

9.Brand:GD-TOOLS

GD-0018	STRAIGGD SHANK COLLET CHUCK WITH MINI NUT
Order No.		d	D	D1	L	L1
ER8M-10×95-17		1-5	10	12	95	17
ER8M-10×120-7		1-5	10	12	120	17
ER8M-16×100-17		1-5	16	12	100	17
ER11M-12×95-28		1-7	12	16	95	28
ER11M-12×150-30		1-7	12	16	150	30
ER11M-16×100-19		1-7	16	16	100	19
ER11M-16×150-19		1-7	16	16	150	19
ER16M-12×50-36		1-10	12	22	50	36
ER16M-12×100-40		1-10	12	22	100	40
ER16M-16×80-37		1-10	16	22	80	37
ER16M-16×150-40		1-10	16	22	150	40
ER16M-20×50-35		1-10	20	22	50	35
ER16M-20×100-25		1-10	20	22	100	25
ER16M-20×150-25		1-10	20	22	150	25
ER20M-16×60-40		1-13	16	28	60	40
ER20M-16×100-40		1-13	16	28	100	40
ER20M-16×150-40		1-13	16	28	150	40
ER20M-20×80-40		1-13	20	28	80	40
ER20M-20×100-40		1-13	20	28	100	40
ER20M-20×120-40		1-13	20	28	120	40
ER20M-20×150-40		1-13	20	28	150	40
ER25M-20×150-50		1-16	20	35	150	50
ER25M-25×145-45		1-16	25	35	145	45
