Collets series

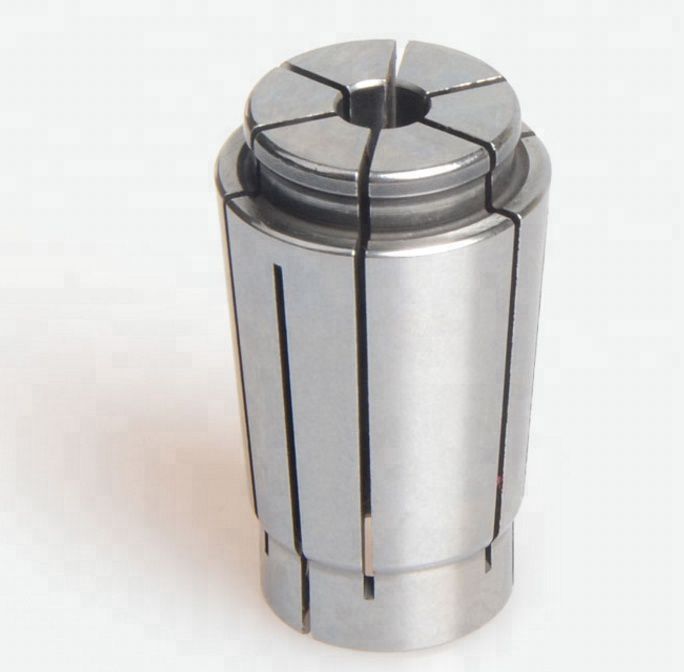

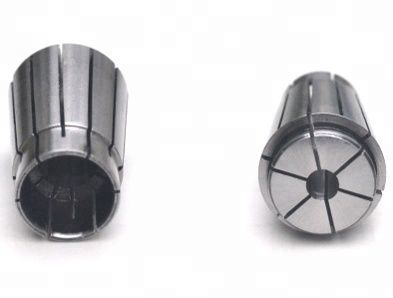

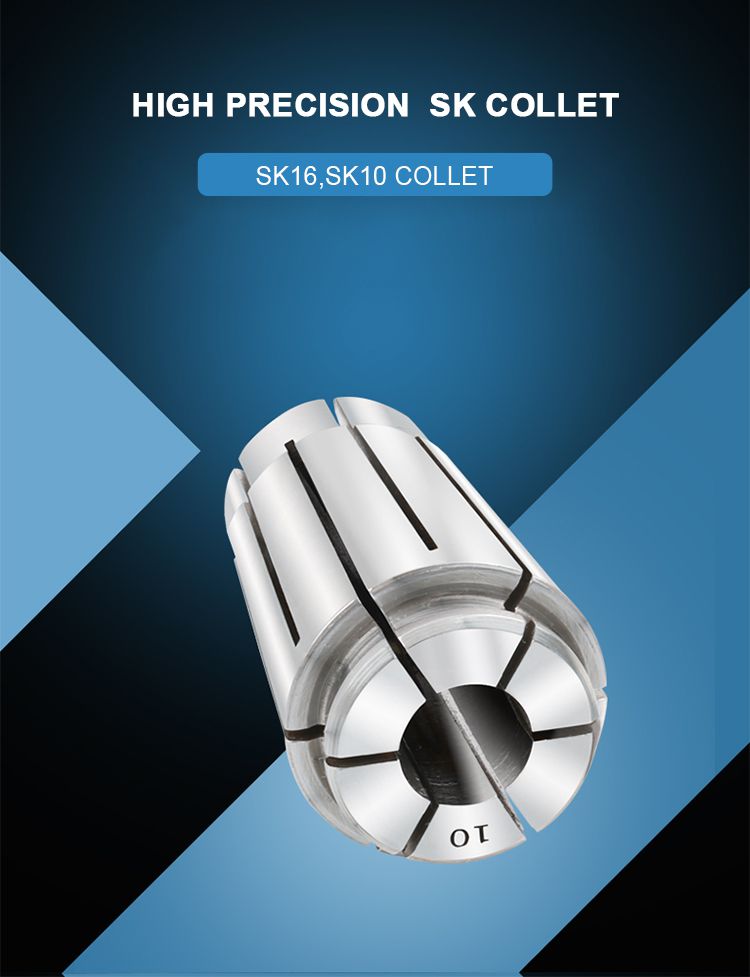

SK HIGH SPEED COLLET

Item No.: CO153044734
Send Enquiry

Sk collets feature
◎Antirust
◎Improve the hardness and endurance of the surface
◎Clean better，Accuracy stable
◎SURfacemoresmooth，Feel comfortable,Appearance nice

◎Material:JIS-SUJ2
◎Hardness:46-50hrc

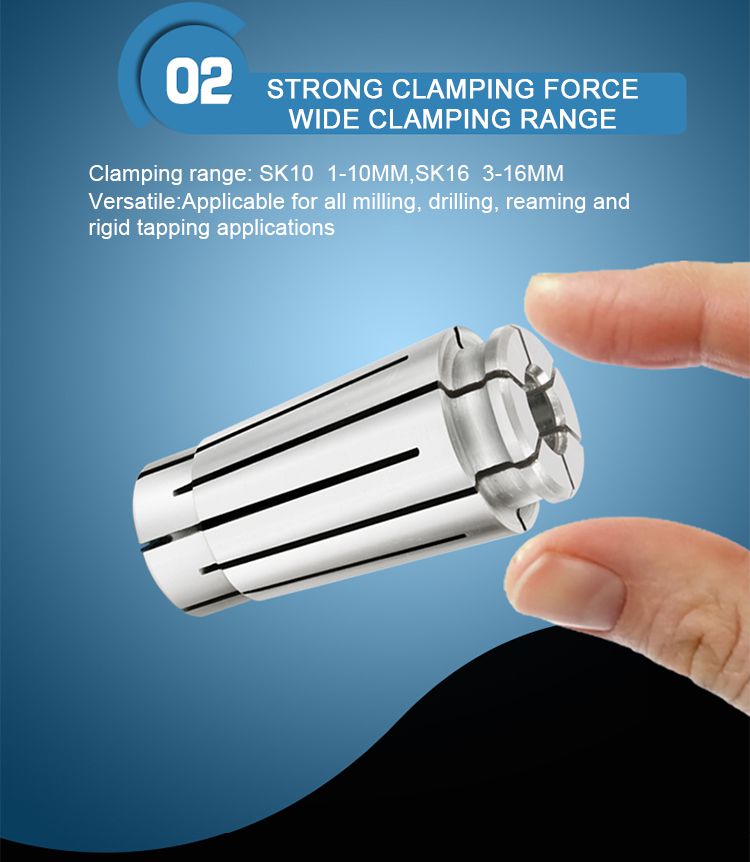

◎The design of 8°coller,more clamping force,to improve seismic performance
Integrated precision 3u/5u

型号	d	D	D1	D2	D3	L	L1
Model No.	d	D	D1	D2	D3	L	L1
SK06	＜3	10.25	8.6	7.6	7.5	25	2.2
SK06	3--6	10.4	8.9	7.6	7.5	25	2.2

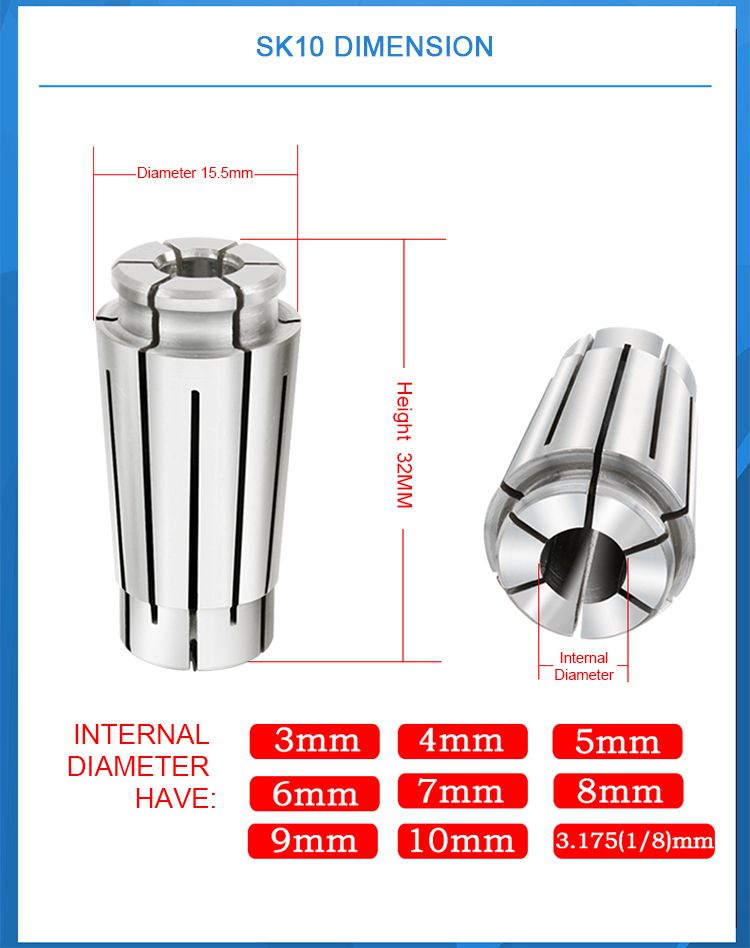

SK10	＜3	15.3	13	11.9	12	30.5	2.4
SK10	3--10	15.46	13.4	11.9	12	30.5	2.4
SK13	3--13	19.97	17.05	15.1	15.5	39	2.4
SK16	2--16	24.54	20.85	19	18.8	45	2.5
SK20	4--16	29.1	24.95	23	22.6	54	2.9
SK25	4--25	35.7	30.2	28.5	28.9	57	3

SK06		SK10		SK13		SK16		SK20		SK25
型号	范围	型号	范围	型号	范围	型号	范围	型号	范围	型号	范围
Model No.	Range	Model No.	Range	Model No.	Range	Model No.	Range	Model No.	Range	Model No.	Range
SK06-2	2 -1.75	SK10-1	1--0.75	SK13-3	3--2.75	SK16-2	2-1.75	SK20-4	4-3.5	SK25-6	6-6.5
SK06-2.5	2.5--2.25	SK10-2	2--1.75	SK13-3.5	3.5--3	SK16-3	3-2.75	SK20-4.5	4.5-4	SK25-8	8-7.5
SK06-3	3--2.75	SK10-2.5	2.5--2.25	SK13-4	4--3.5	SK16-3.175	3.175-2.7	SK20-5	5-4.5	SK25-10	10-9.5
SK06-3.5	3.5--3	SK10-3	3--2.75	SK13-4.5	4.5--4	SK16-3.5	3.5-3	SK20-5.5	5.5-5	SK25-12	12-11.5
SK06-4	4--3.5	SK10-3.175	3.175--2.7	SK13-5	5--4.5	SK16-4	4-3.5	SK20-6	6-5.5	SK25-14	14-13.5
SK06-4.5	4.5--4	SK10-3.5	3.5--3	SK13-5.5	5.5--5	SK16-4.5	4.5-4	SK20-6.5	6.5-6	SK25-16	16-15.5
SK06-5	5--4.5	SK10-4	4--3.5	SK13-6	6--5.5	SK16-5	5-4.5	SK20-7	7-6.5	SK25-16.5	16.5-16
SK06-5.5	5.5--5	SK10-4.5	4.5--4	SK13-6.5	6.5--6	SK16-5.5	5.5-5	SK20-7.5	7.5-7	SK25-17	17-16.5
SK06-6	6--5.5	SK10-5	5--4.5	SK13-7	7--6.5	SK16-6	6-5.5	SK20-8	8-7.5	SK25-17.5	17.5-17
		SK10-5.5	5.5-5	SK13-7.5	7.5--7	SK16-6.5	6.5-6	SK20-8.5	8.5-8	SK25-18	18-17.5
		SK10-6	6-5.5	SK13-8	8--7.5	SK16-7	7-6.5	SK20-9	9-8.5	SK25-18.5	18.5-18
		SK10-6.5	6.5--6	SK13-8.5	8.5--8	SK16-7.5	7.5-7	SK20-9.5	9.5-9	SK25-19	19-18.5
		SK10-7	7--6.5	SK13-9	9--8.5	SK16-8	8-7.5	SK20-10	10-9.5	SK25-19.5	19.5-19
		SK10-7.5	7.5--7	SK13-9.5	9.5--9	SK16-8.5	8.5-8	SK20-10.5	10.5-10	SK25-20	20-19.5
		SK10-8	8--7.5	SK13-10	10--9.5	SK16-9	9-8.5	SK20-11	11-10.5	SK25-20.5	20.5-20
		SK10-8.5	8.5--8	SK13-10.5	10.5-10	SK16-9.5	9.5-9	SK20-11.5	11.5-11	SK25-21	21-20.5
		SK10-9	9--8.5	SK13-11	11--10.5	SK16-10	10-9.5	SK20-12	12-11.5	SK25-21.5	21.5-21
		SK10-9.5	9.5--9	SK13-11.5	11.5-11	SK16-10.5	10.5-10	SK20-12.5	12.5-12	SK25-22	22-21.5
		SK10-10	10--9.5	SK13-12	12--11.5	SK16-11	11-10.5	SK20-13	13-12.5	SK25-22.5	22.5-22
				SK13-12.5	12.5-12	SK16-11.5	11.5-11	SK20-13.5	13.5-13	SK25-23	23-22.5
				SK13-13	13--12.5	SK16-12	12-11.5	SK20-14	14-13.5	SK25-23.5	23.5-23
						SK16-12.5	12.5-12	SK20-14.5	14.5-14	SK25-24	24-23.5
						SK16-13	13-12.5	SK20-15	15-14.5	SK25-24.5	24.5-24
						SK16-13.5	13.5-13	SK20-15.5	15.5-15	SK25-25	25-24.5
						SK16-14	14-13.5	SK20-16	16-15.5	SK25-25.4	25.4-25
						SK16-14.5	14.5-14	SK20-16.5	16.5-16
						SK16-15	15-14.5	SK20-17	17-16.5
						SK16-15.5	15.5-15	SK20-17.5	17.5-17
						SK16-16	16-15.5	SK20-18	18-17.5
								SK20-18.5	18.5-18
								SK20-19	19-18.5
								SK20-19.5	19.5-19
								SK20-20	20-19.5
