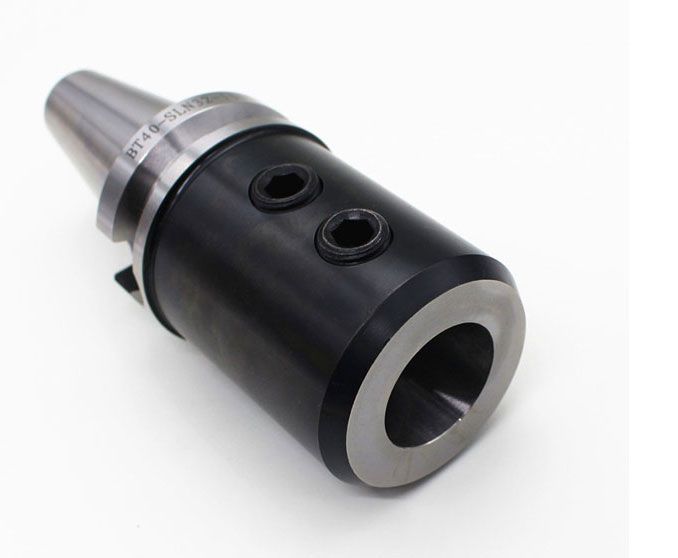

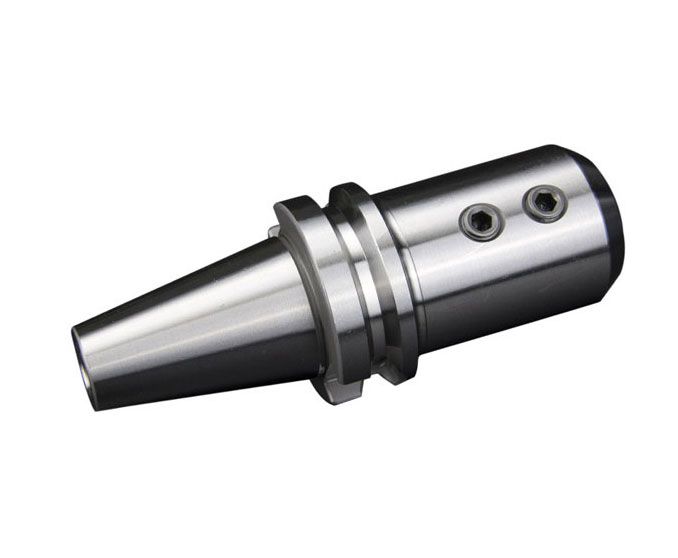

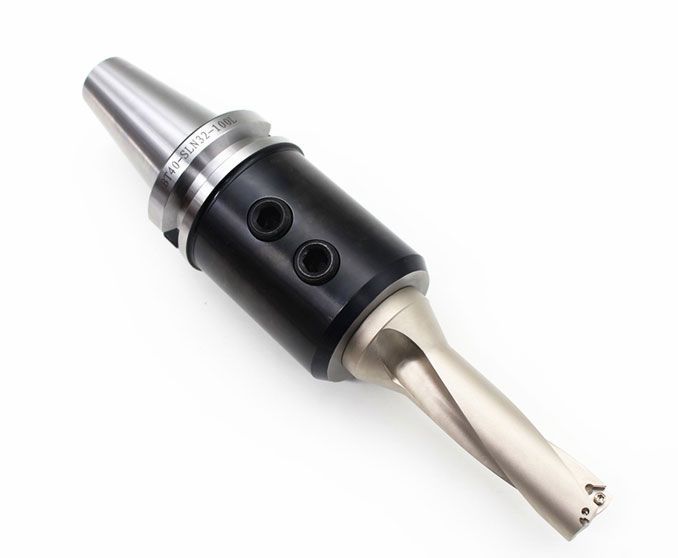

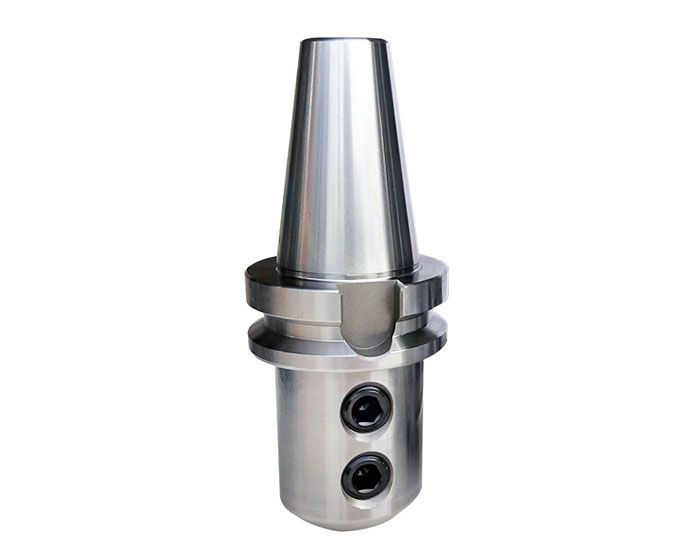

GD-0083 BT end mill adapters

Product name:BT END MILL ADAPTERS

Type:BT30/BT40/BT50 end mill adapter

Material:40Cr

Hardness:HRC53-55

Color:Black and white

Accuracy:0.005mm Collet Holder

Package:plastic box

Usage: Workholding

Carbon depth:>0.8

Suitable Facing Cutter:13mm-50mm

brief description:

1. High quality elastic steel material with long use time.

2. The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)

3. Suitable Pull Stub& Facing Cutter is also upon request.

4. The clamping hole tolerance H5 ,with a locking screw less than 20mm

with a diameter of 25mm above two locking screw

GD-0083 END MILL ADAPTERS
Order No. BTxd-L1 L D D1 L2 L3 Wt(kg)
BT30 x 6-50 98.4 25 31.75 18   0.66
BT30 x 6-60 108.4 25 31.75 18 0.72
BT30 x 8-60 108.4 28 31.75 18 0.80
BT30 x 10-60 108.4 35 31.75 20 0.83
BT30 x 10-80 128.4 35 31.75 20 0.83
BT30 x 12-60 108.4 42 31.75 22.5 0.88
BT30 x 14-60 108.4 44 31.75 22.5 1.02
BT30 x 16-75 123.4 48 31.75 24 1.04
BT30 x 18-75 123.4 50 31.75 24 1.26
BT30 x 20-75 123.4 52 31.75 25 1.36
BT30 x 25-90 138.4 65 31.75 24 25 1.50
