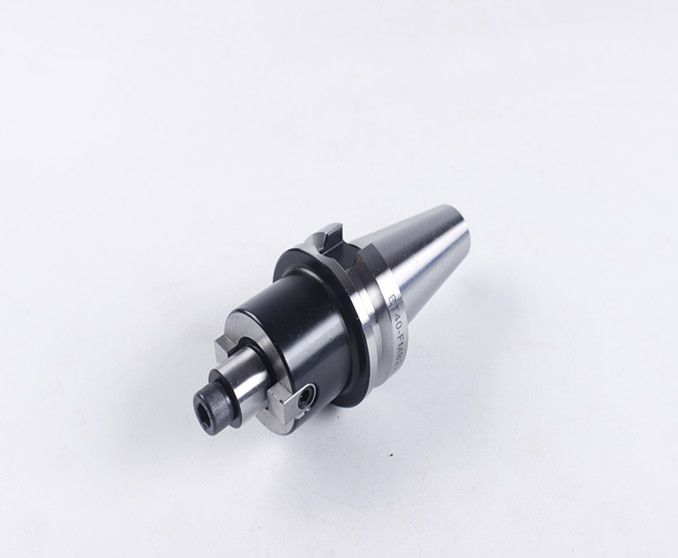

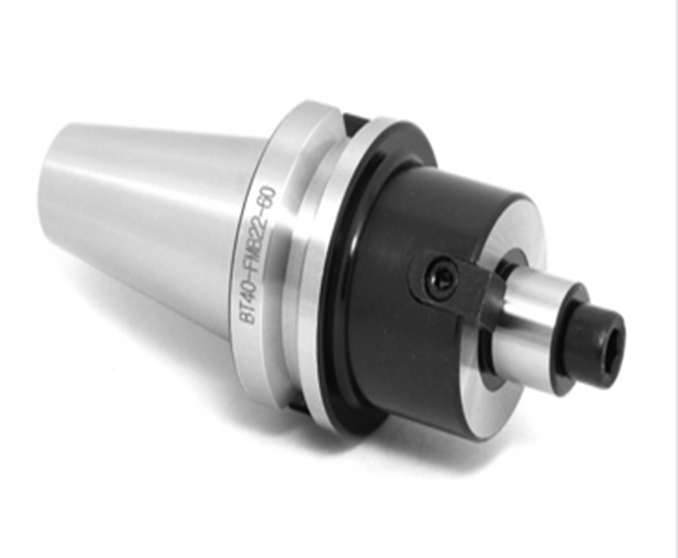

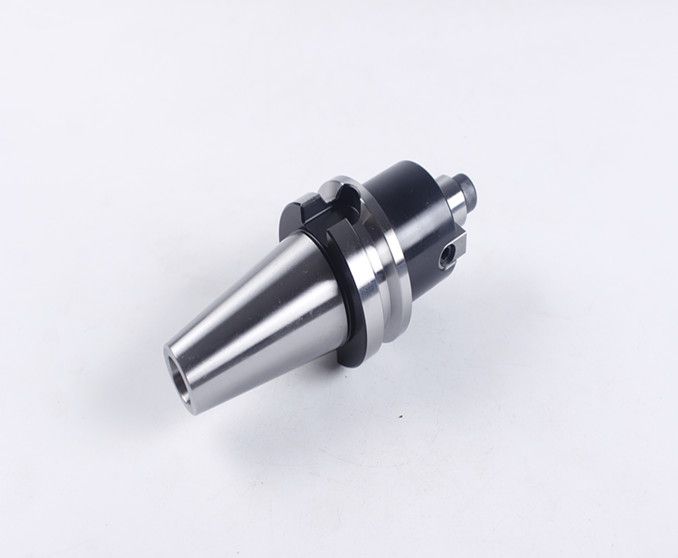

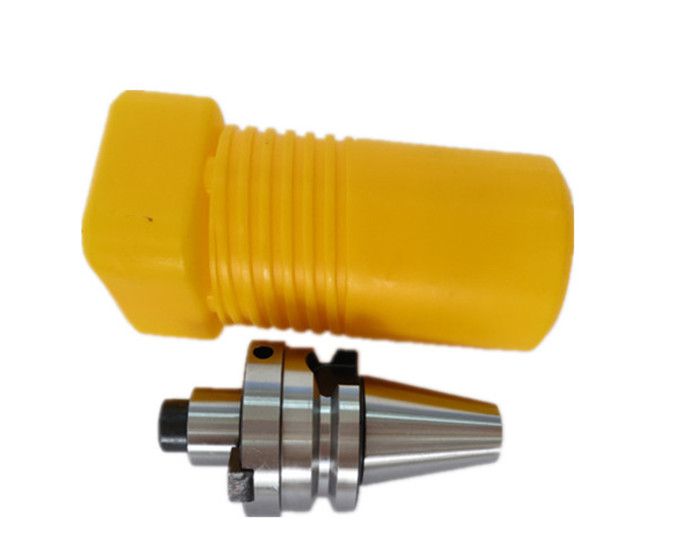

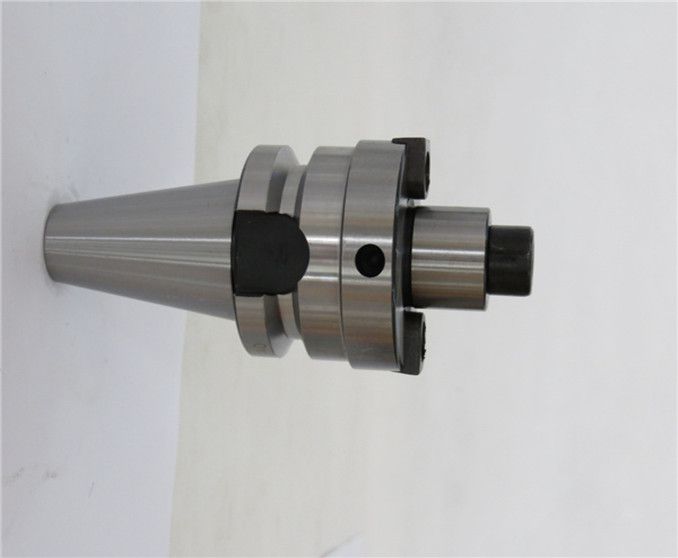

BT-FMB SHELL MILL ARBORS

1.High quality elastic steel material with long use time.

2.Type: A AD AD/B
3.Shank of the BT Taper Shell Mill Arbors:BT30, BT40,BT50
4.Suitable Facing Cutter:13mm-50mm
5.The precision little than 0.01mm with balance 8000rpm. Higher precision
also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
6.Holder hardness:48-55HRC
7.Suitable Pull Stub& Facing Cutter is also upon request.

Order No. BT*d-L1 D Wt(kg) Order No. BT*d-L1 D Wt(kg)
BT30*16-60 32 1 BT40*40-75 70 2.2
BT30*22-60 40 1.3 BT40*50-70 90 2.5
BT30*27-60 48 1.5 BT50*16-60 32 3.6
BT30*32-60 58 1.8 BT50*16-75 32 3.9
BT30*40-60 70 2.2 BT50*16-120 32 4.3
BT40*16-45 32 1 BT50*22-60 40 5
BT40*16-60 32 1.3 BT50*22-75 40 4
BT40*16-120 32 1.7 BT50*22-100 40 4.5
BT40*22-45 40 1.5 BT50*22-120 40 5
BT40*22-60 40 1.7 BT50*27-60 48 5.5
BT40*22-100 40 3 BT50*27-105 48 4
BT40*22-120 40 3.6 BT50*32-60 58 4.5
BT40*27-45 48 1.5 BT50*32-75 58 1.6
BT40*27-60 48 1.6 BT50*32-105 58 1.8
BT40*27-75 48 1.8 BT50*40-60 70 2.2
BT40*27-105 48 2.1 BT50*40-75 70 3.6
BT40*27-120 48 2.3 BT50*40-90 70 3.7
BT40*32-45 58 1.2 BT50*40-100 70 3.75
BT40*32-60 58 1.5 BT50*40-105 70 3.8
BT40*32-75 58 1.8 BT50*50-60 90 4
BT40*32-120 58 2.8 BT50*50-70 90 4.2
BT40*40-60 70 2 BT50*50-120 90 4.4
