Sleeve Series

  • GD-0028 MS Adapter End Open Type

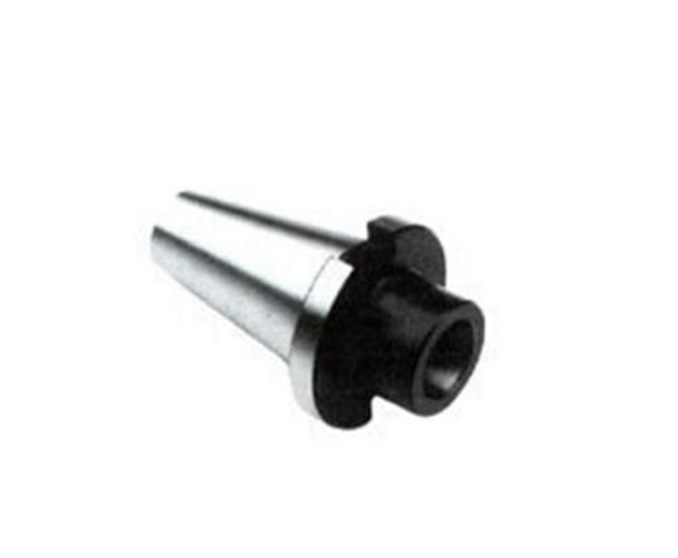

GD-0028 MS Adapter End Open Type

GD-0028 MS Adapter End Open Type

1.High quality elastic steel material with long use time.
2.Type: A AD AD/B
3.Shank of the BT Taper Shell Mill Arbors:BT30 BT40 BT50 DIN69871 A30 DIN69871 A40 DIN69871 A50 CT30 CT40 CT50
4.Suitable Facing Cutter:13mm-50mm
5.The precision little than 0.005mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
6.Holder hardness:48-55HRC
7.Suitable Pull Stub& Facing Cutter is also upon request.

GD0028 7:24 TO MS ADAPTER(END OPENING TYPE)
Order No. 7:24 NO.S MS.NO.T D(mm) D1(mm) d(mm) L(mm)
B30W-1 30 MS1 24 31.75 12.065 75
B30W-2 30 MS2 30 31.75 17.780 100
B30W-3 30 MS3 36 31.75 23.825 130
B30W-4 30 MS4 48 31.75 31.267 162.5
B40W-1 40 MS1 24 44.45 12.065 80
B40W-2 40 MS2 30 44.45 17.780 85
B40W-3 40 MS3 36 44.45 23.825 100
B40W-4 40 MS4 48 44.45 31.267 145
B40W-5 40 MS5 61 44.45 44.399 225
B50W-1 50 MS1 25 69.85 12.065 127
B50W-2 50 MS2 32 69.85 17.780 127
B50W-3 50 MS3 40 69.85 23.825 127
B50W-4 50 MS4 48 69.85 31.267 127
B50W-5 50 MS5 61 69.85 44.399 180
